Description

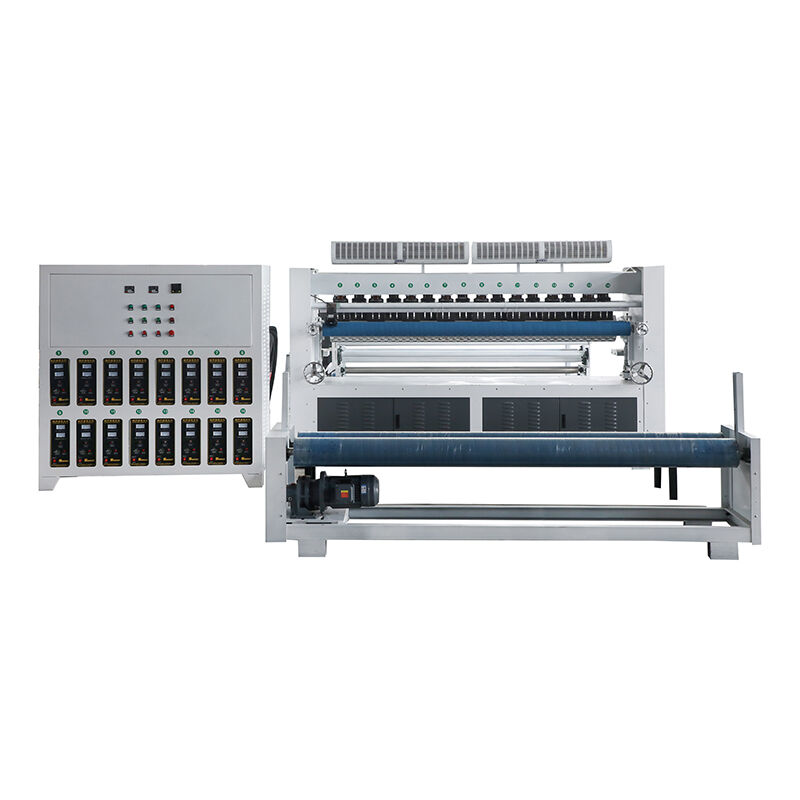

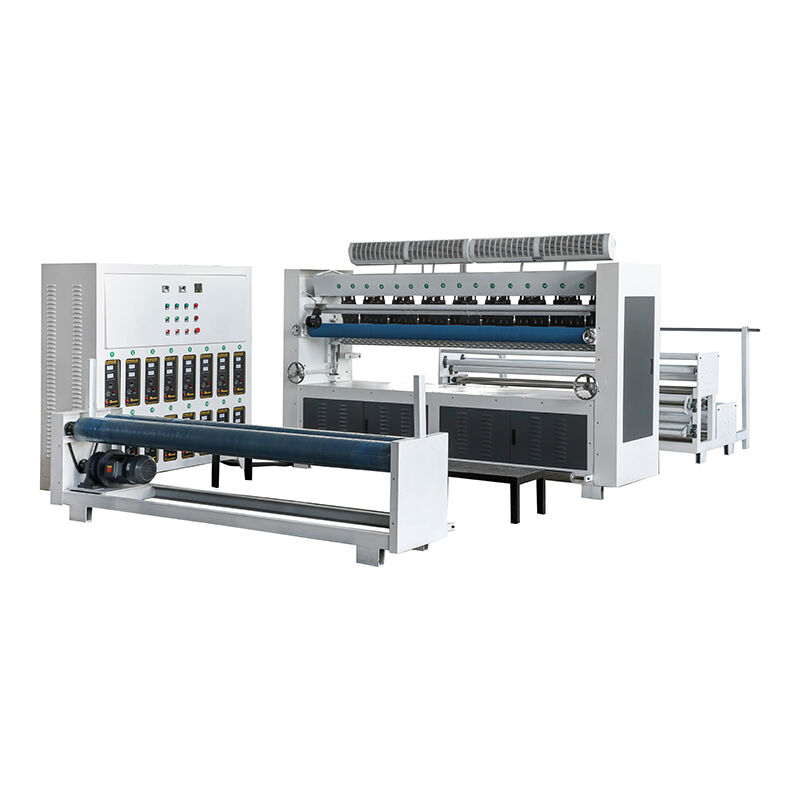

1.Use the principle of ultrasonic to perform needle-free wireless operation.It is an ideal environmental protection equipment for laminating and bonding various chemical fiber fabrics,artificial leather,non-woven fabrics,spray-bonded cotton, thermoplastic films and garment lining.
2.Mainly used to make car seat covers, luggage and handbags, footwear and shoe materials, clothing cotton clothes, children's clothing windbreakers, pillow quilt covers, mattress covers, cushions and pillows, table mats and tablecloths, curtains, shower curtains, cold protection Gloves, baby pads, anti-moisture pads, tent wardrobes, washing machine covers.

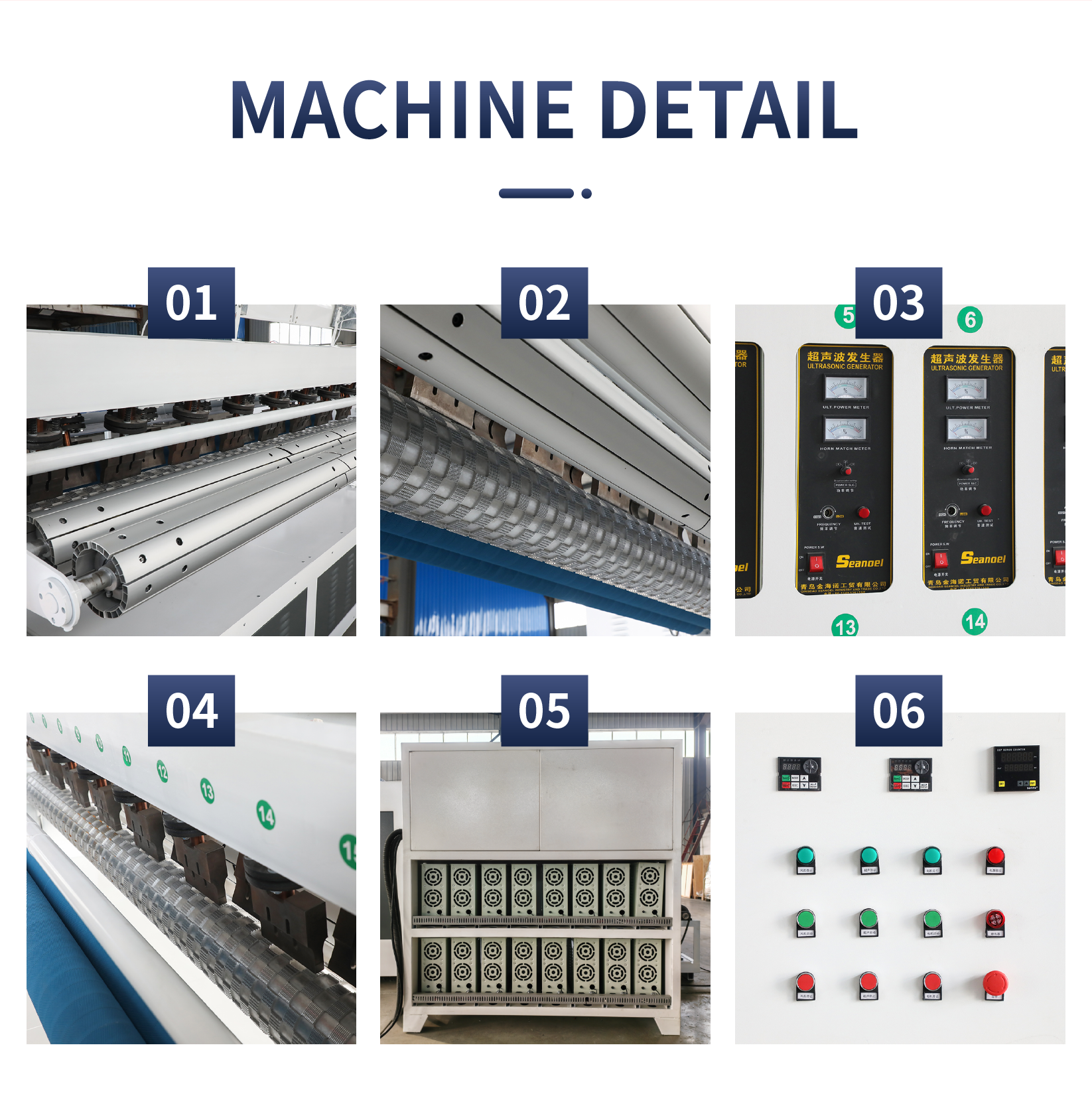

3.The welding head are arranged in a cross type,to ensure the embossing accuracy of the fabric and prevent missing pattern.
4.Adopting ultrasonic hot pressing composite technology,no need to use needle and thread,the speed is ten times faster than traditional needle and thread sewing machine.
5.Equipped with 18K ultrasonic generator, variable frequency speed regulation,the output speed can reach to 20 meter.
6.Equipped with a cooling fan for real-time cooling,ensuring the welding head is not damaged during long-term operation.
7.Thin material use corrosion roller,thick material use engraved roller;the pattern produced has a three-dimensional sense,more beautiful and generous.
8.Various quilting style such as: single-row dot,double-row dot,single-row dotted line, double-row dotted line and other patterns.
Machine Specification
|
Model |
SN-U 1800 |
SN-U 2400 |
SN-U 2800 |
SN-U 3000 |
SN-U 3200 |
|
Working Width |
1900 MM |
2500 MM |
2900 MM |
3100 MM |
3300 MM |
|
Head Quantity |
10 |
13 |
15 |
16 |
17 |
|
Machine Power |
9.4 KW |
10.9 KW |
11.9 KW |
13.2 KW |
13.7 KW |
|
Weight |
2000 KG |
2400 KG |
2800 KG |
3000 KG |
3200 KG |
|
Ultrasonic Power |
18KHZ |
||||
|
Head Size |
200MM |
||||
Warranty
1.We provide one year quality guarantee for our machine and electrical component from the date customer received the machine.
2.We provide installation video and user manual for all of our machine.
3.We can take video to help you completely solving any problems you encounter during installation and daily use,because we have all machine ready in our exhibition room.
4.Except one year warranty, we provide lifelong free guidance for our product.
