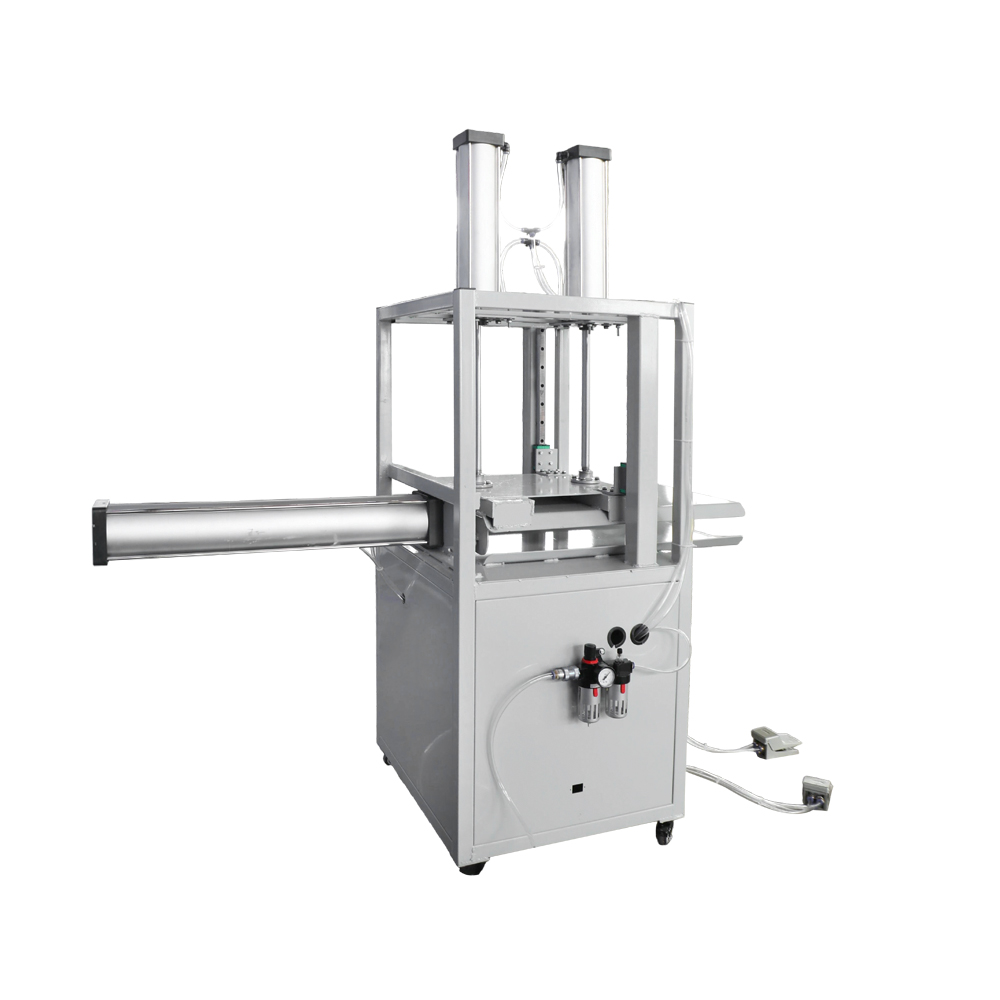

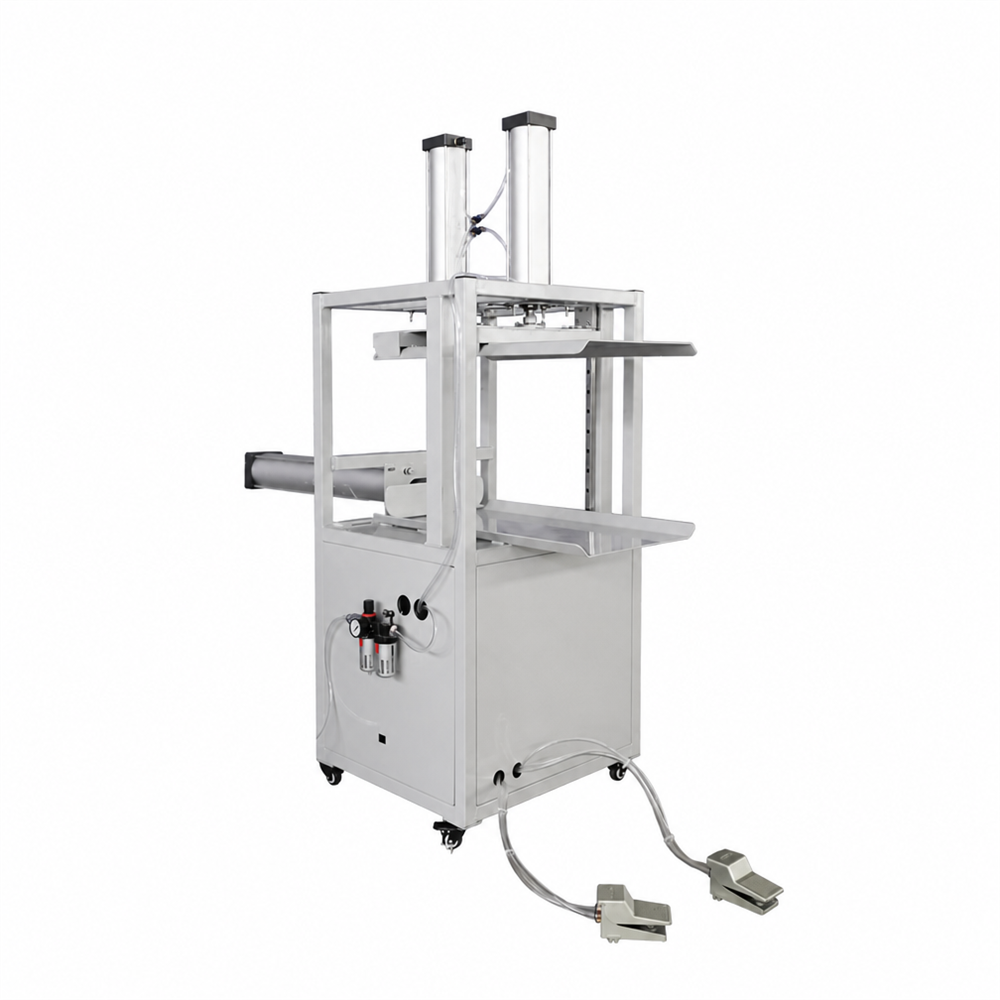

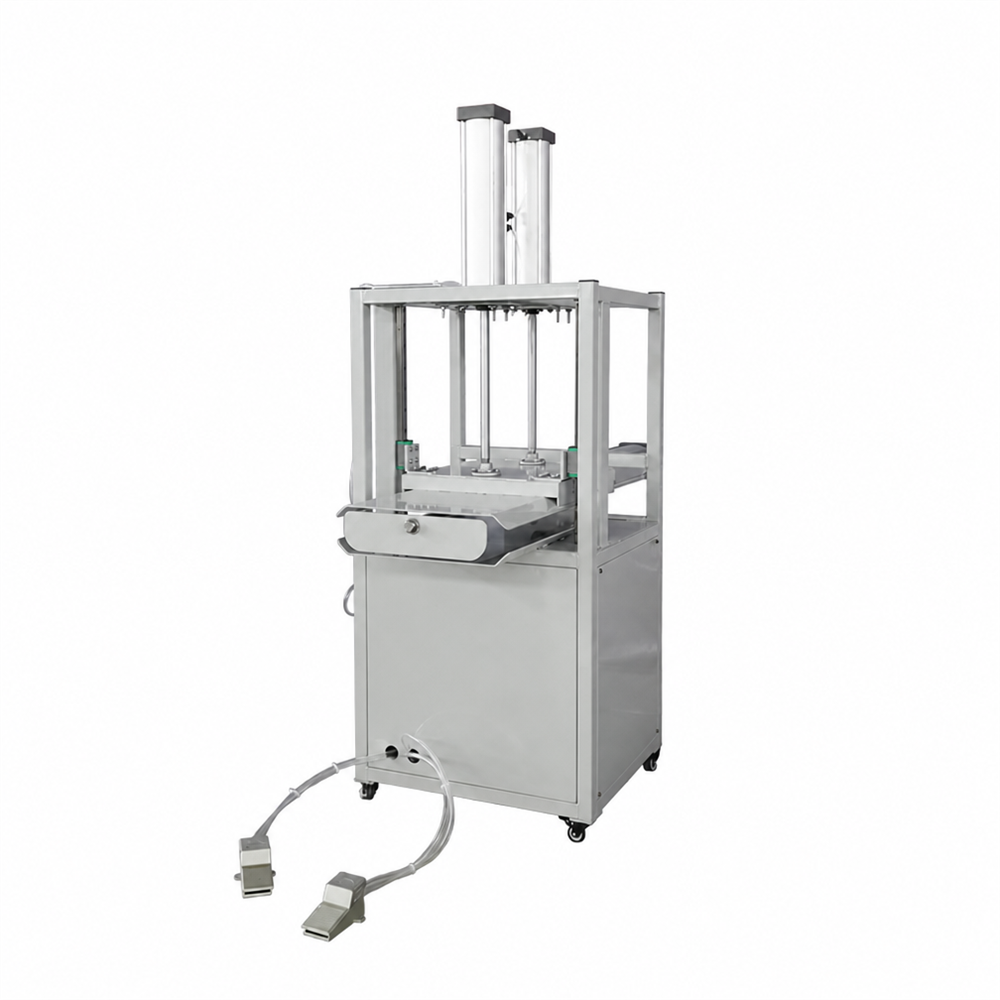

Two Sided Compression Pillow Bagging Machine
1.Used for compression and bagging of pillow,cushion,pet bed,quilt and other products
2.Air cylinder driving upper pressure plate downward,compress the volume of products,push into the packaging bag through push plate,can also compress and bagging stacked multi products
3.Compression and bagging are completed synchronously to avoid the difficulty of manual flattening and bagging caused by the product being too large
4.No electricity required, only use air compressor to provide power
5.Foot switch control the pressure plate and push plate,very easy to operate and greatly improves work efficiency
6.Packing size and height both can be customized, and can also be customized according to the size of packaging bag
7.Usually used in conjunction with compression sealing machine,more convenient to storage and transportation after compression
Description
Two-Sided Compression Pillow Bagging Machine: Streamlining Soft Product Packaging and Storage
The Two-Sided Compression Pillow Bagging Machine is a practical solution for compressing and bagging pillows, cushions, pet beds, quilts, and other soft products. By reducing product volume before packaging, the Two-Sided Compression Pillow Bagging Machine helps save storage space, improve transportation efficiency, and make bulky home textile products easier to handle. It is suitable for bedding factories, home textile manufacturers, pet product suppliers, and e-commerce packaging operations.
The Two-Sided Compression Pillow Bagging Machine uses an air cylinder to drive the upper pressure plate downward. During operation, the pressure plate compresses the product and pushes it into the packaging bag through the push plate. This structure combines compression and bagging in one process, helping operators package soft goods quickly and consistently. The equipment can also compress and bag stacked products for different production requirements.
Compression and bagging are completed simultaneously. This synchronized operation reduces the difficulty of manually flattening products and placing them into bags, especially when products are large, thick, or difficult to handle. The Two-Sided Compression Pillow Bagging Machine reduces repetitive manual work, helping factories improve efficiency and maintain an organized packaging process.
The machine does not require electric power for its main movement. It uses an air compressor to provide pneumatic power, making the Two-Sided Compression Pillow Bagging Machine suitable for production environments with compressed-air systems. This design supports stable operation. A foot switch controls the pressure plate and push plate, allowing operators to start the process while positioning the product and packaging bag with both hands.
The packing size and height of the Two-Sided Compression Pillow Bagging Machine can be customized according to product dimensions and packaging bag size. This flexibility allows the machine to handle pillows, cushions, quilts, pet beds, and other soft goods. It can also work together with a compression sealing machine for storage and transportation after compression.
The SN-2TD-600 model weighs approximately 250 kg, has a packing size of 400 × 600 mm, a press plate height of 350 mm, a capacity of about 3–5 pieces per minute, and a packaging bag width of 500 mm. The SN-2TD-800 model weighs approximately 300 kg, has a packing size of 500 × 800 mm, a press plate height of 500 mm, a capacity of about 3–4 pieces per minute, and a packaging bag width of 600 mm.
In summary, the Two-Sided Compression Pillow Bagging Machine provides an efficient pneumatic solution for soft product packaging. With synchronized compression and bagging, air-cylinder operation, foot-switch control, customizable dimensions, and compatibility with sealing equipment, the Two-Sided Compression Pillow Bagging Machine helps manufacturers reduce manual effort, improve packaging efficiency, and save storage and transportation space.
Machine Specification
|
Model |
SN-2TD-600 |
SN-2TD-800 |
|
Weight |
250KG |
300KG |
|
Packing Size |
400*600MM |
500*800MM |
|
Press Plate Height |
350MM |
500MM |
|
Capacity |
3-5PCS/MIN |
3-4PCS/MIN |
|
Power |
0 |
|
|
Packing Bag Width |
500MM |
600MM |
Warranty
We provide one year quality guarantee for our machine and electrical component from the date customer received the machine.
We provide installation video and user manual for all of our machine.
We can take video to help you completely solving any problems you encounter during installation and daily use,because we have all machine ready in our exhibition room.
Except one year warranty, we provide lifelong free guidance for our product.
