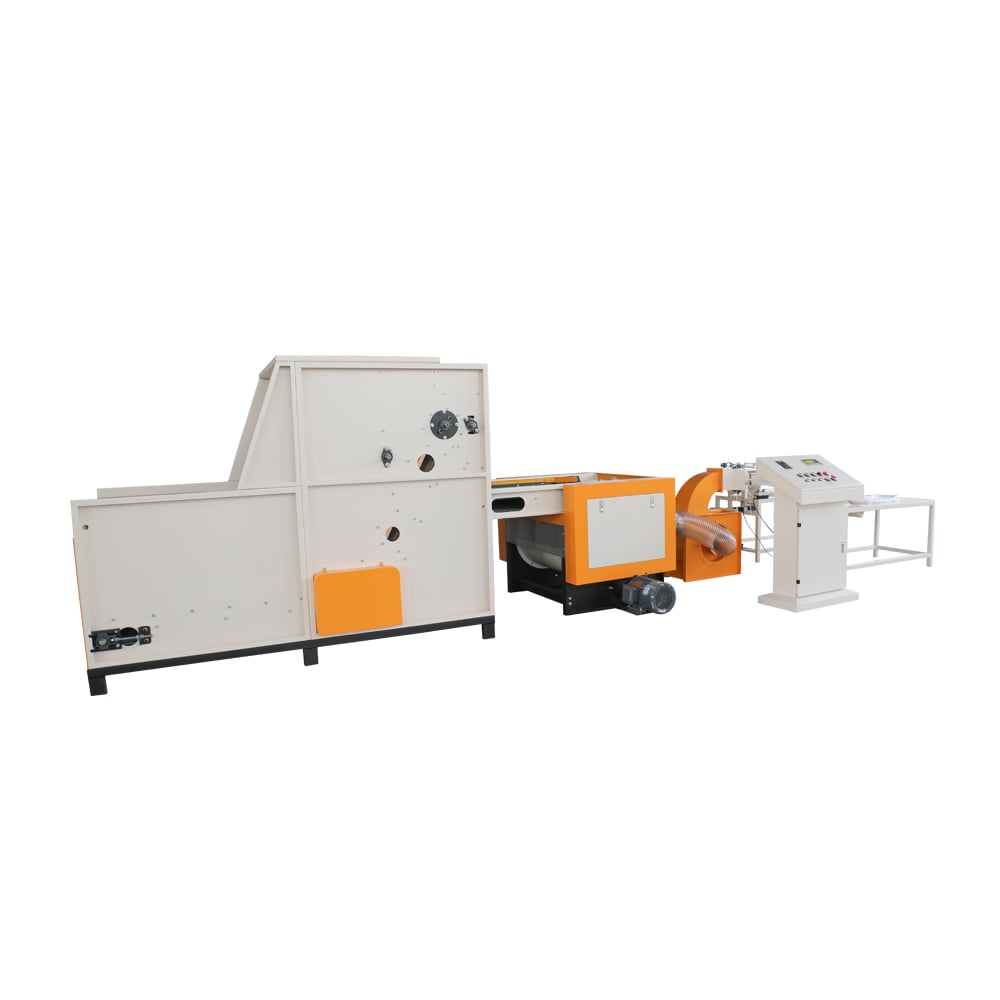

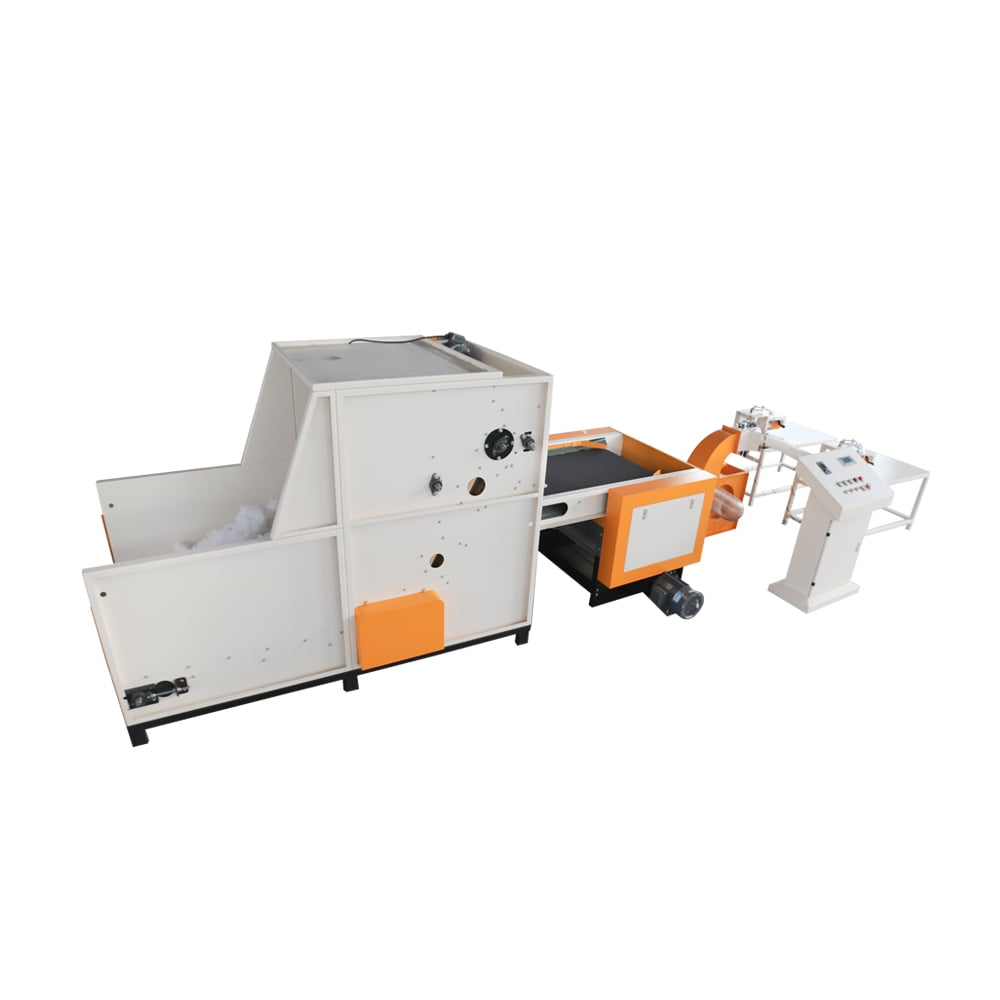

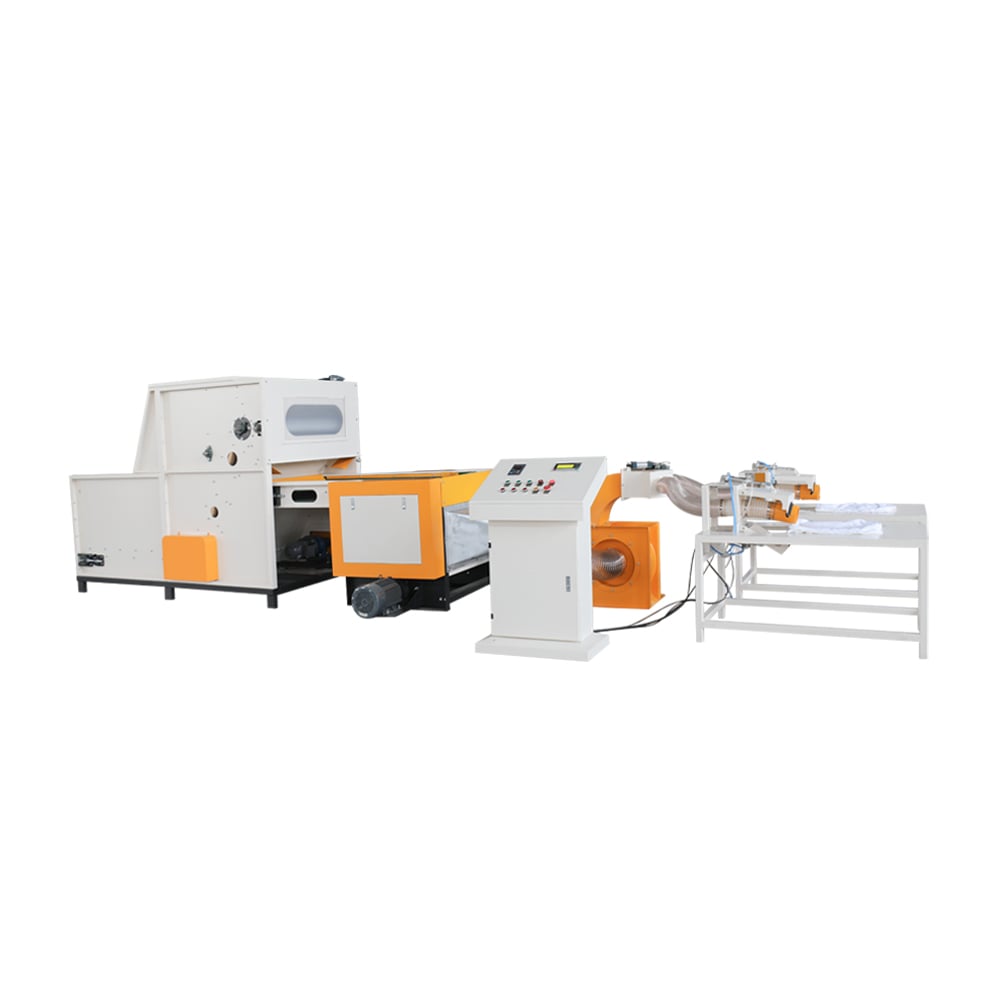

Time Quantitative Pillow Filling Line

Time Quantitative Pillow Filling Line: Enhancing Automated Fiber Filling Efficiency

The Time Quantitative Pillow Filling Line is an automatic production solution designed for filling pillows, bolsters, cushions, and other soft home textile products. Combining automatic feeding, fiber filling, quantitative control, and simple operation, the Time Quantitative Pillow Filling Line helps manufacturers improve production efficiency, filling consistency, and labor utilization. It is suitable for bedding factories, home textile manufacturers, furniture suppliers, and companies producing pillows and cushions.

The Time Quantitative Pillow Filling Line can process polyester fiber in specifications from 0.6D to 15D and lengths from 32 mm to 64 mm. This compatibility allows manufacturers to select suitable filling fiber for different products. Whether filling standard pillows, long bolsters, decorative cushions, or other soft goods, the Time Quantitative Pillow Filling Line provides a flexible solution for textile production.

The complete filling process is highly automated. The machine can feed raw fiber and fill product shells automatically, so only one person is normally required for operation. This reduces manual handling and labor requirements. Automatic operation also supports stable production and consistent filling results. Operators can monitor the line and change product shells instead of performing repetitive filling work.

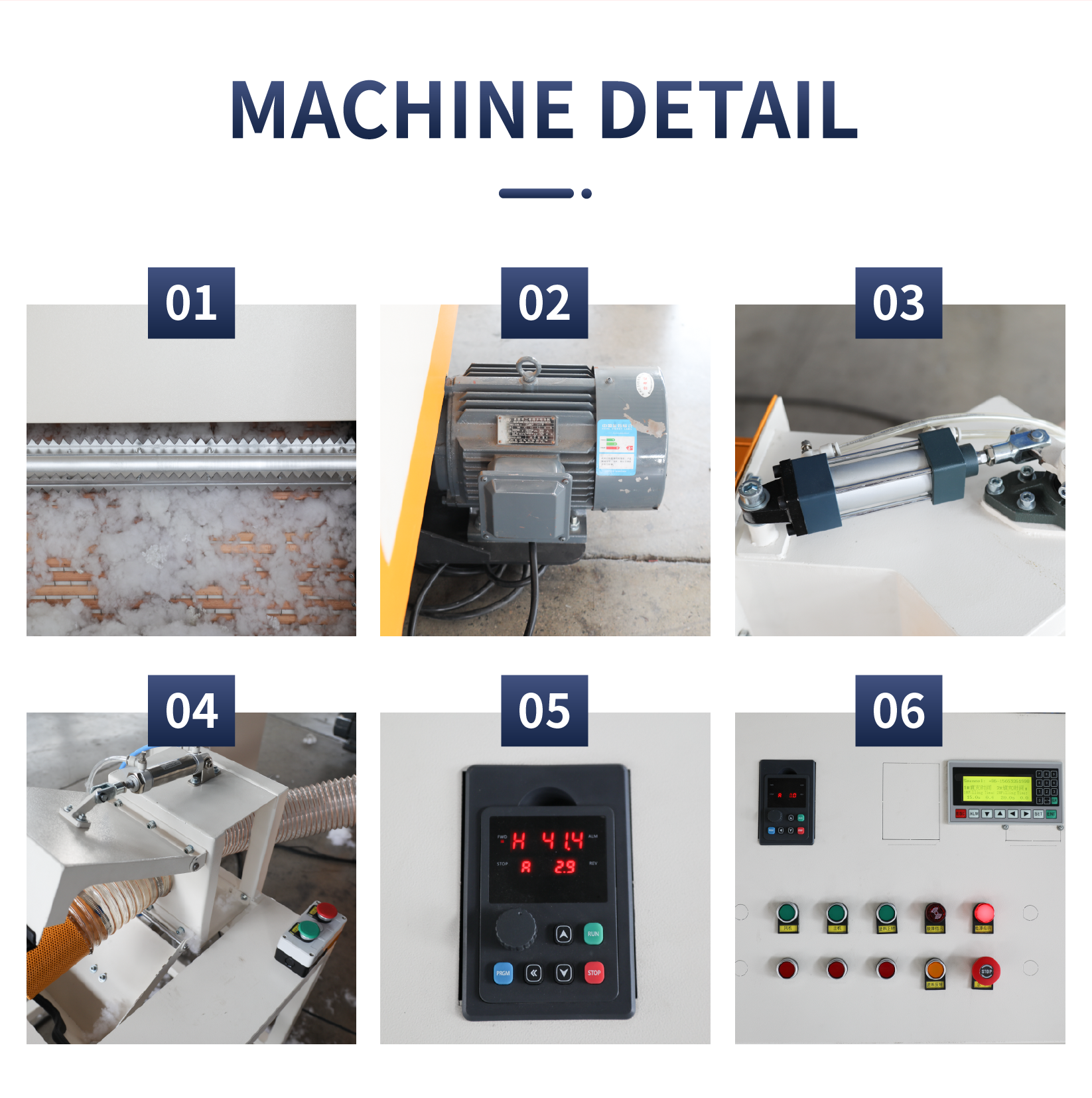

A pneumatic fixture automatically clamps the product shell before filling, keeping the opening stable during operation. After filling, the fixture automatically releases the shell and switches to another filling port. This automatic clamping, releasing, and port-switching process reduces repetitive work and speeds up production. The Time Quantitative Pillow Filling Line is suitable for continuous production involving multiple pillow or cushion designs.

The machine adopts time-based quantitative control to regulate the filling amount. Operators can set the filling time according to product size, fiber density, and required softness. Once the appropriate time is selected, the Time Quantitative Pillow Filling Line provides consistent filling quantities and reduces differences between products. The settings can be adjusted conveniently when changing product specifications.

Variable-frequency speed regulation allows operators to adjust speed according to material characteristics, product size, and production requirements. This improves adaptability while keeping operation simple. Even an unskilled operator can learn to use the equipment after training. Speed adjustment also helps balance filling quality and output during different conditions.

The SN-PF-250 model supports 3D–15D fiber with a length of 32–64 mm, uses 14 kW, and weighs approximately 1300 kg. The SN-PF-500 model supports 1.33D–15D fiber with a length of 32–64 mm, uses 12 kW, and weighs approximately 1500 kg. The SN-PF-700 model supports 0.6D–15D fiber with a length of 32–64 mm, uses 12 kW, and weighs approximately 1550 kg. Filling capacity is approximately 100–250 kg per hour, depending on material and operating conditions.

In summary, the Time Quantitative Pillow Filling Line is a fully automatic fiber filling solution for pillows, bolsters, cushions, and similar soft products. With automatic feeding, pneumatic clamping, port switching, adjustable filling time, and variable-frequency speed regulation, the Time Quantitative Pillow Filling Line helps manufacturers reduce labor, improve filling consistency, simplify operation, and increase production efficiency.

We provide one year quality guarantee for our machine and electrical component from the date customer received the machine.

We provide installation video and user manual for all of our machine.

We can take video to help you completely solving any problems you encounter during installation and daily use,because we have all machine ready in our exhibition room.

Except one year warranty, we provide lifelong free guidance for our product.

Q1: We are manufacturer or trade company?

A:Our factory build on 2003 year, We are a home textile equipment source manufacturer. We helped many client build their factory and serviced more than 100+ Countries & Regions.

Q2: Service?

A:Our engineer are online 10 hours every day to provide you with the highest quality service,completely solving any problems you encounter during installation and daily use.

Q3: Why choose us?

A:We are a home textile equipment source manufacturer,covering almost all pillow, quilt,mattress,polyester wadding and foam related machinery,You can get the most suitable suggestion about the machine configuration according to your raw material and final products.Then make a one-stop procurement and service here.

Q4:What is Seanoel?

A:Seanoel is a our brand name,noel is the pronunciation of promise in Chinese.

Our promise is vast and profound like the sea,choose Seanoel means you will get promise and guarantee from it.
