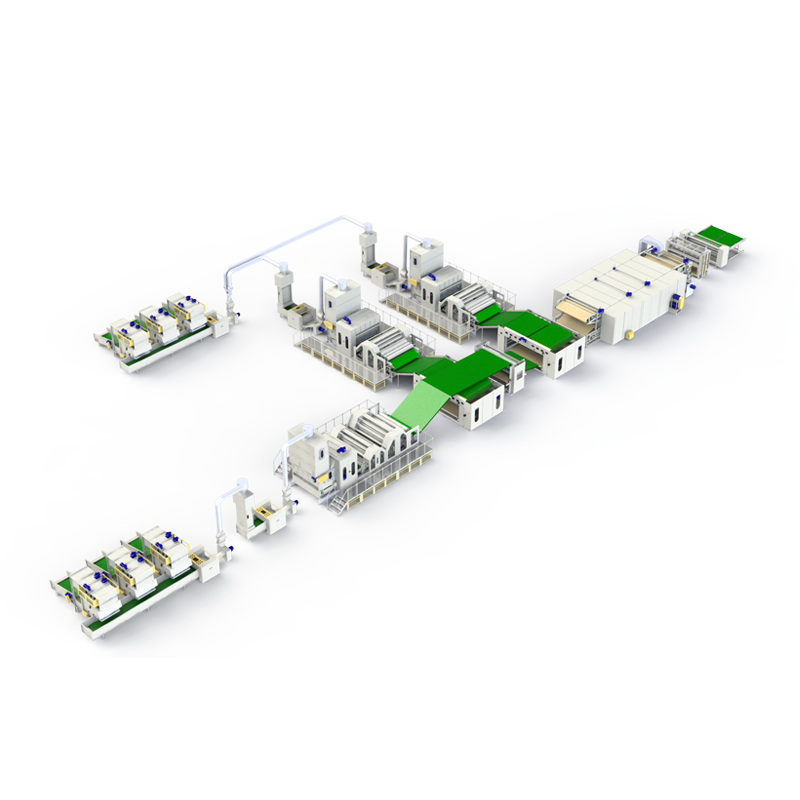

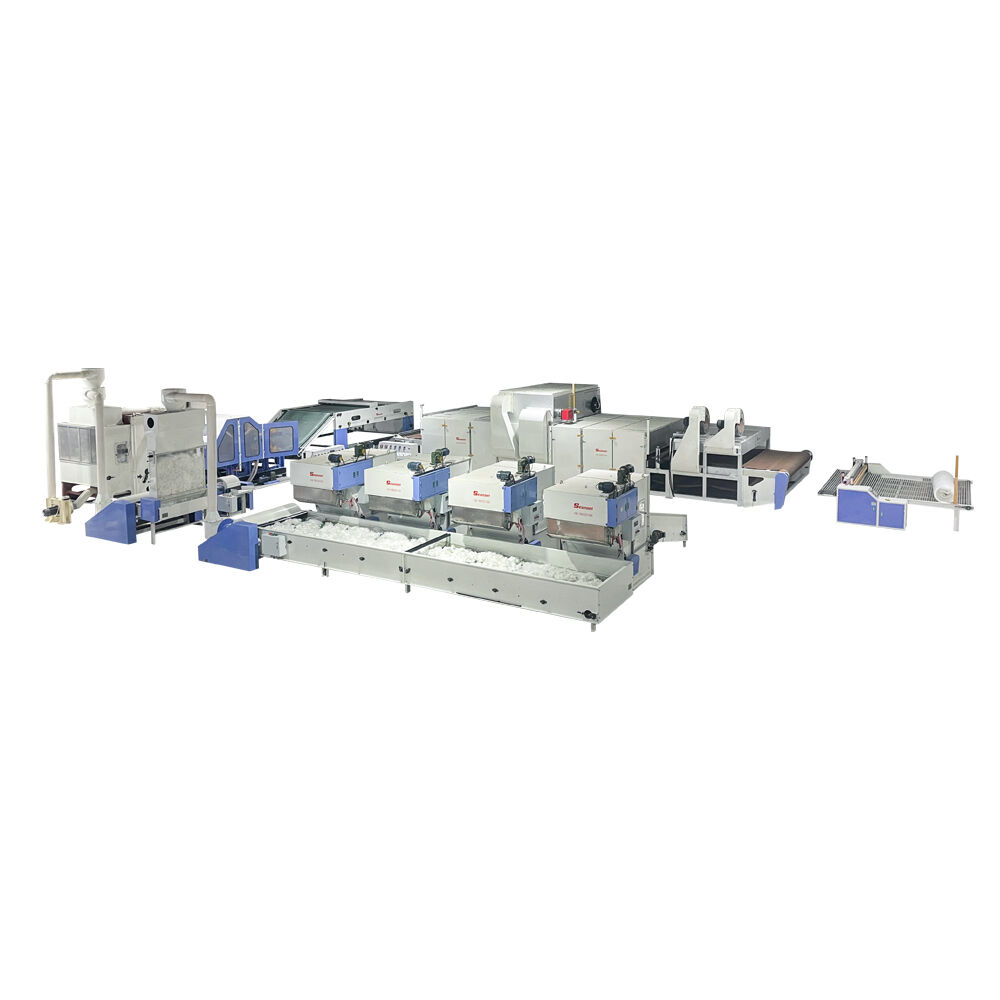

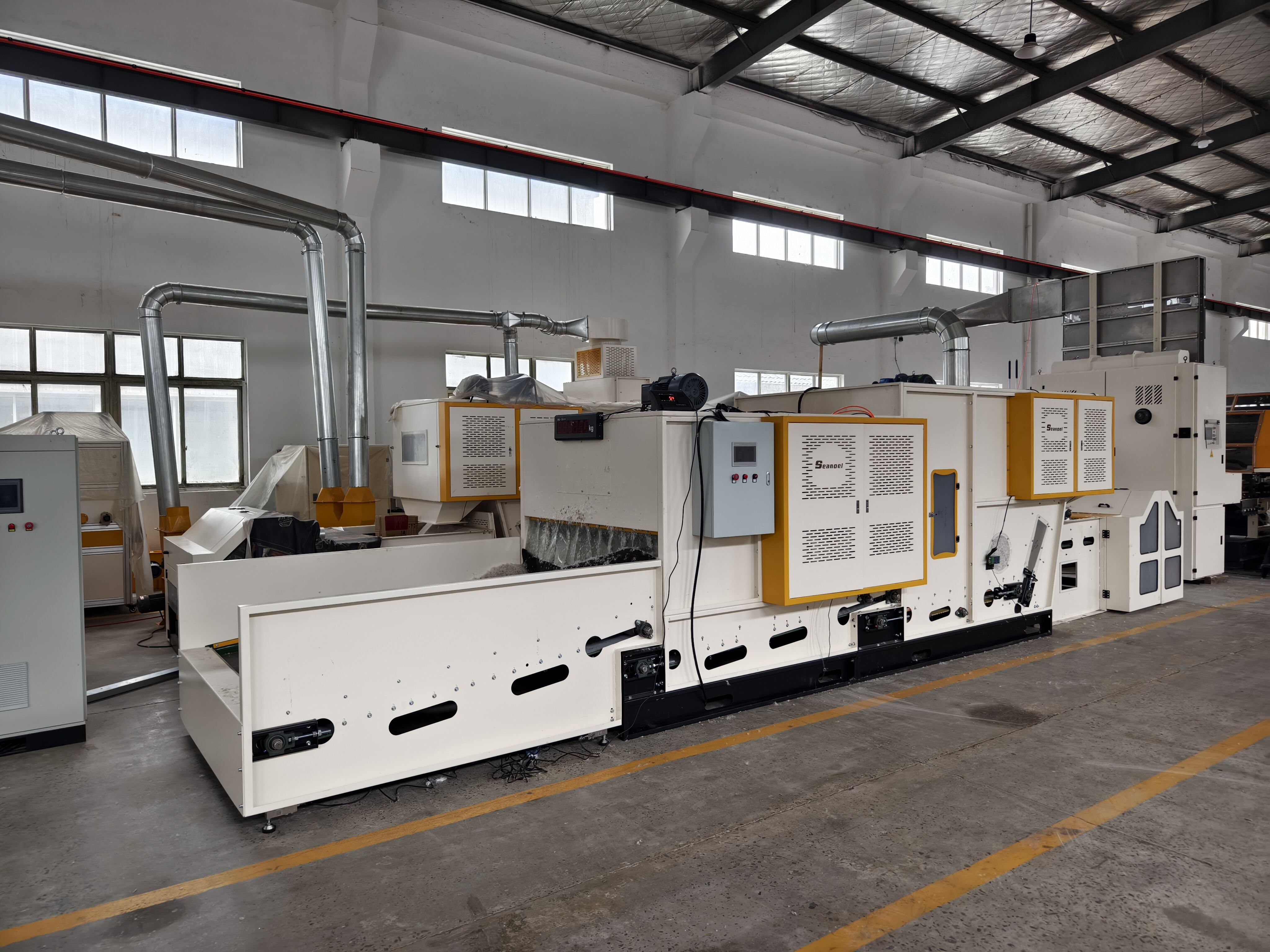

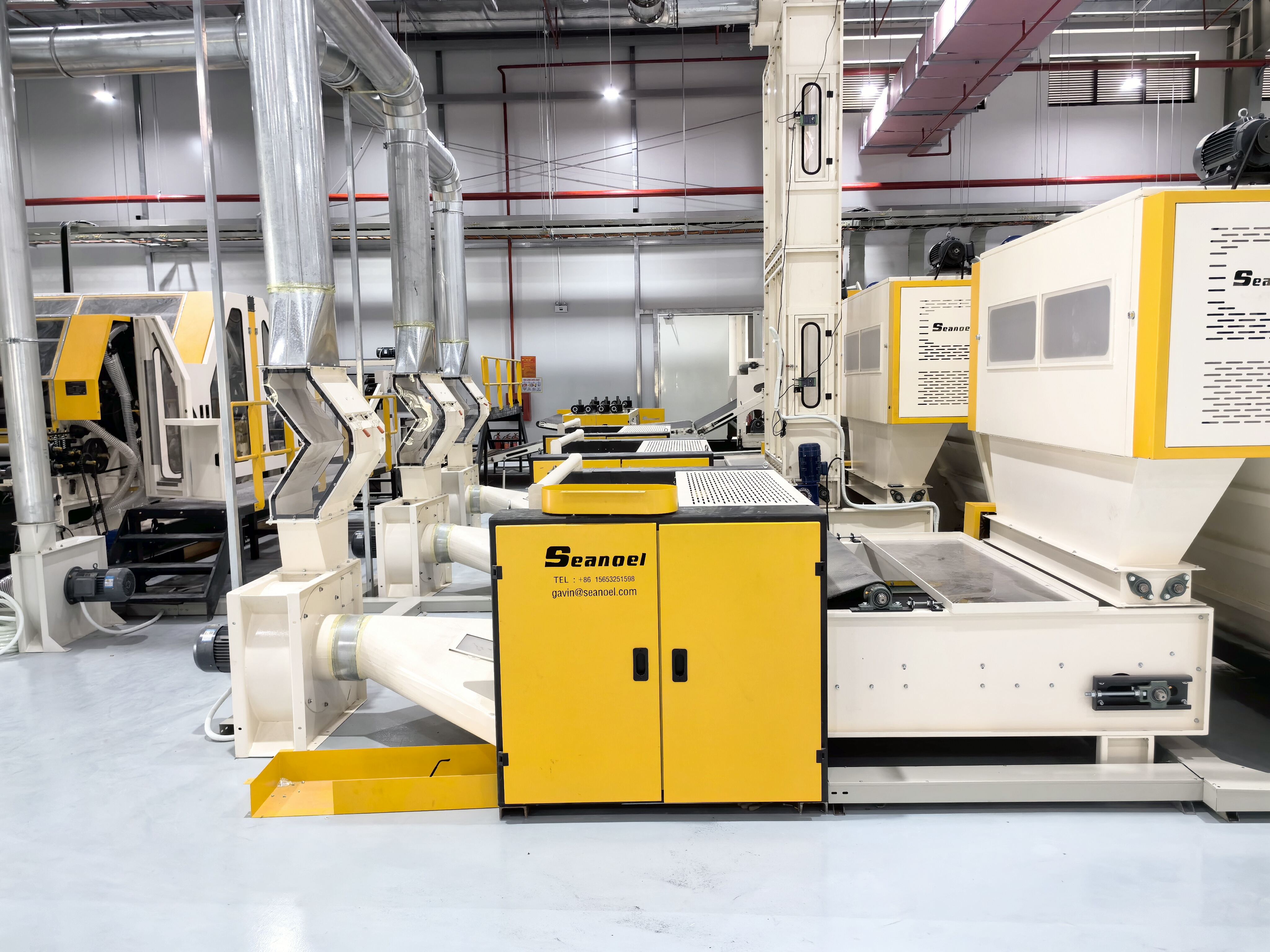

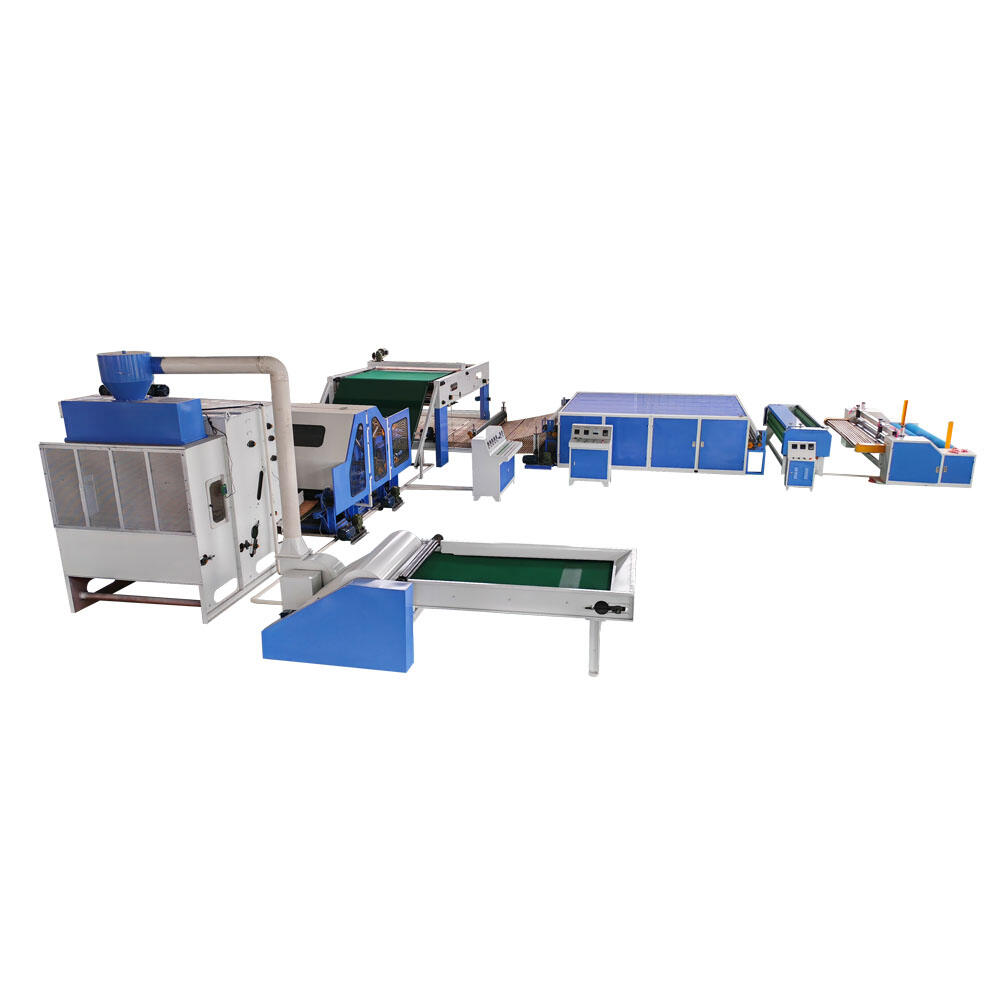

Thermal Bonding Polyester Wadding Production Line
Thermal Bonding Polyester Wadding Production Line delivers 35% faster throughput & 22% energy savings vs. conventional lines.
Description

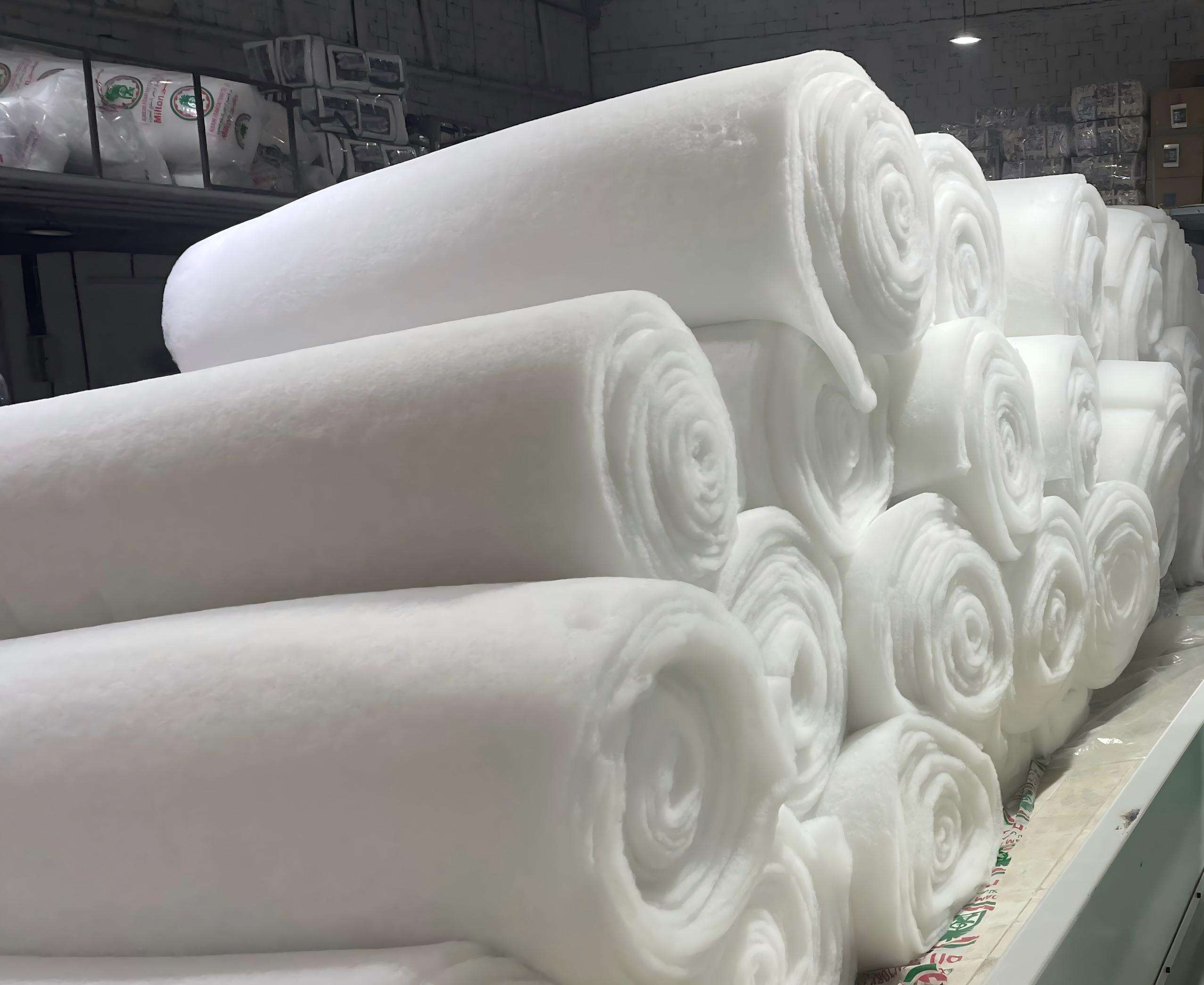

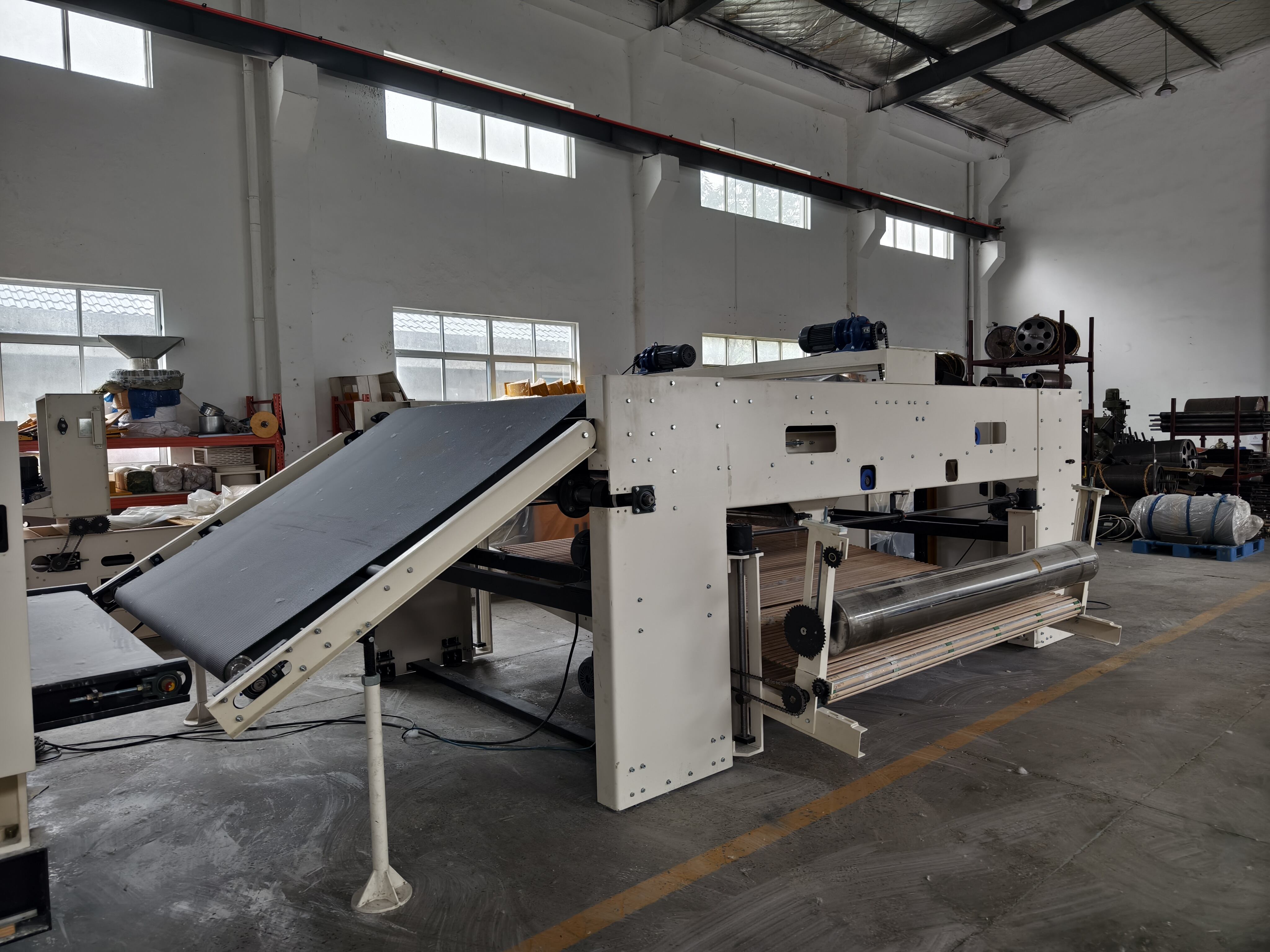

1.This machine is mainly used to produce various specifications of polyester wadding roll,non glue wadding,spray glue wadding,hard padding,imitation silk cotton wadding, needle punch felt,coconut palm mat and geotextile etc.
2.Raw material can be 0.6-30D polyester fiber,down fiber,imitation silk cotton,recycled fiber from waste fabric etc.
3.Can produce different density from 40 to 3000GSM,0.5-25CM thickness polyester wadding in soft and hard state.
4.Add low melting point fiber in raw material,After pass through a special high-temperature oven,this low melting point fiber will combine all materials together.

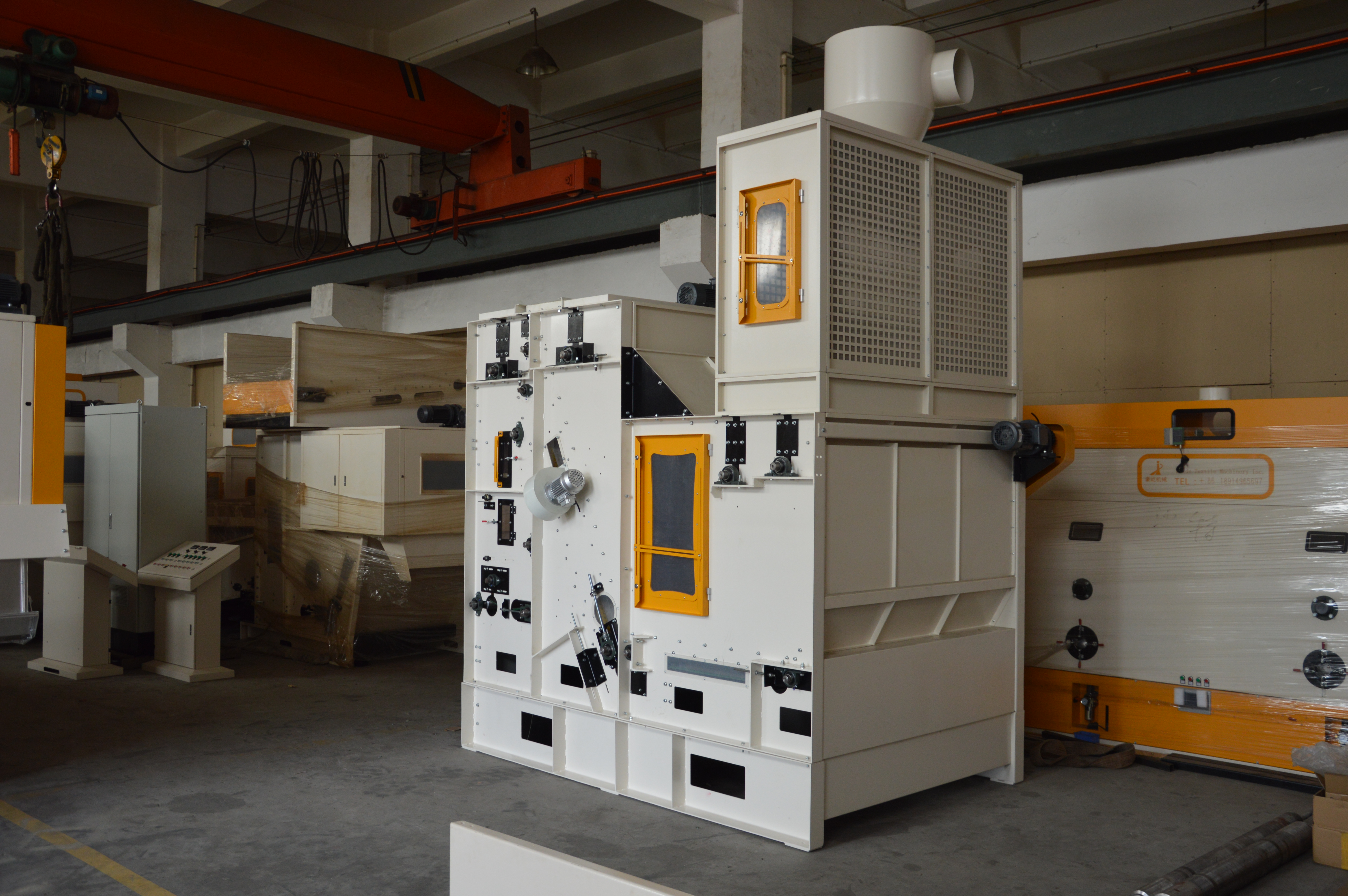

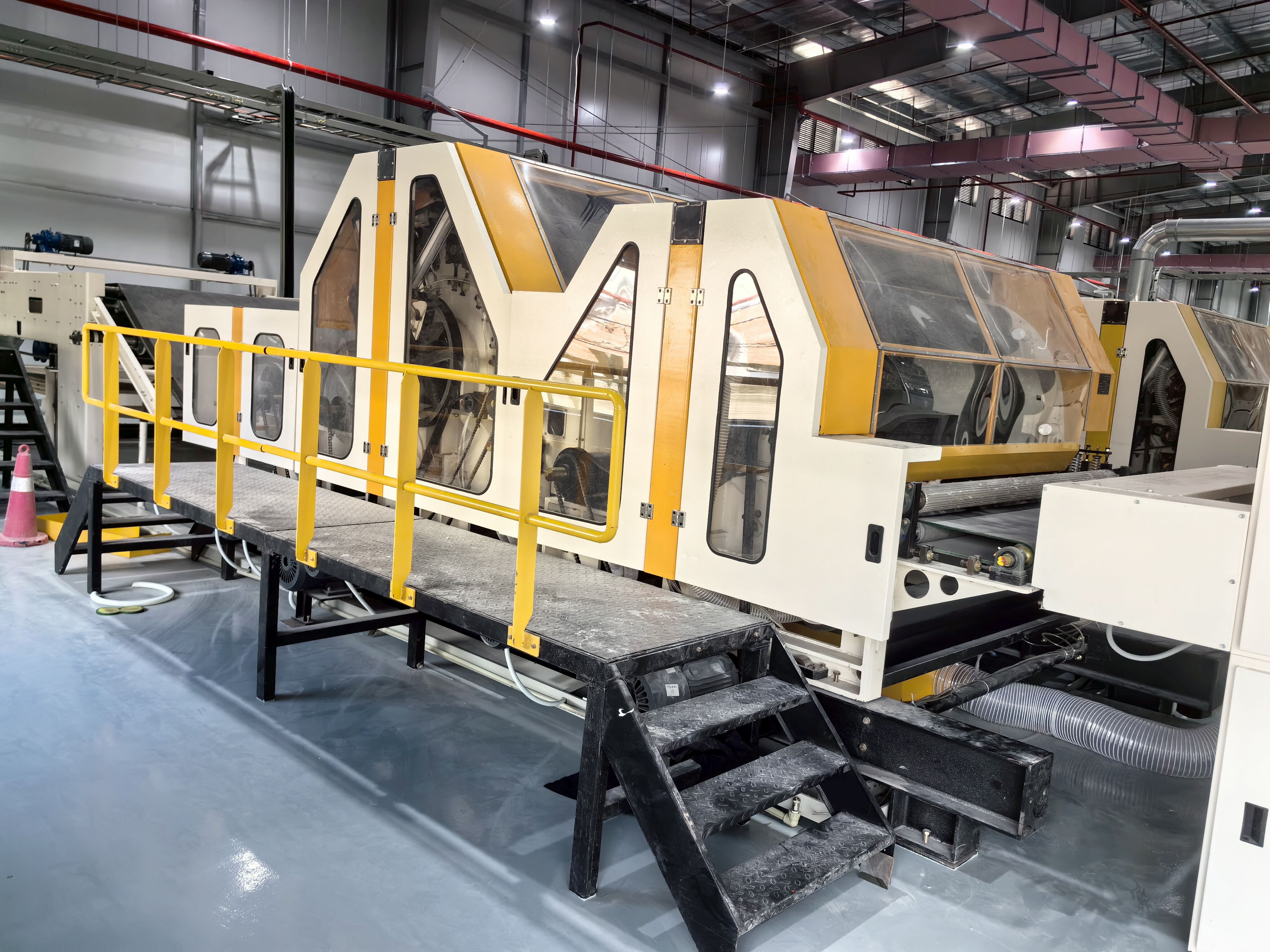

5.Also if use glue instead of low melting point fiber mixed in raw material,can make spray glue wadding;If use needle punch machine instead of oven,can make needle punch felt.

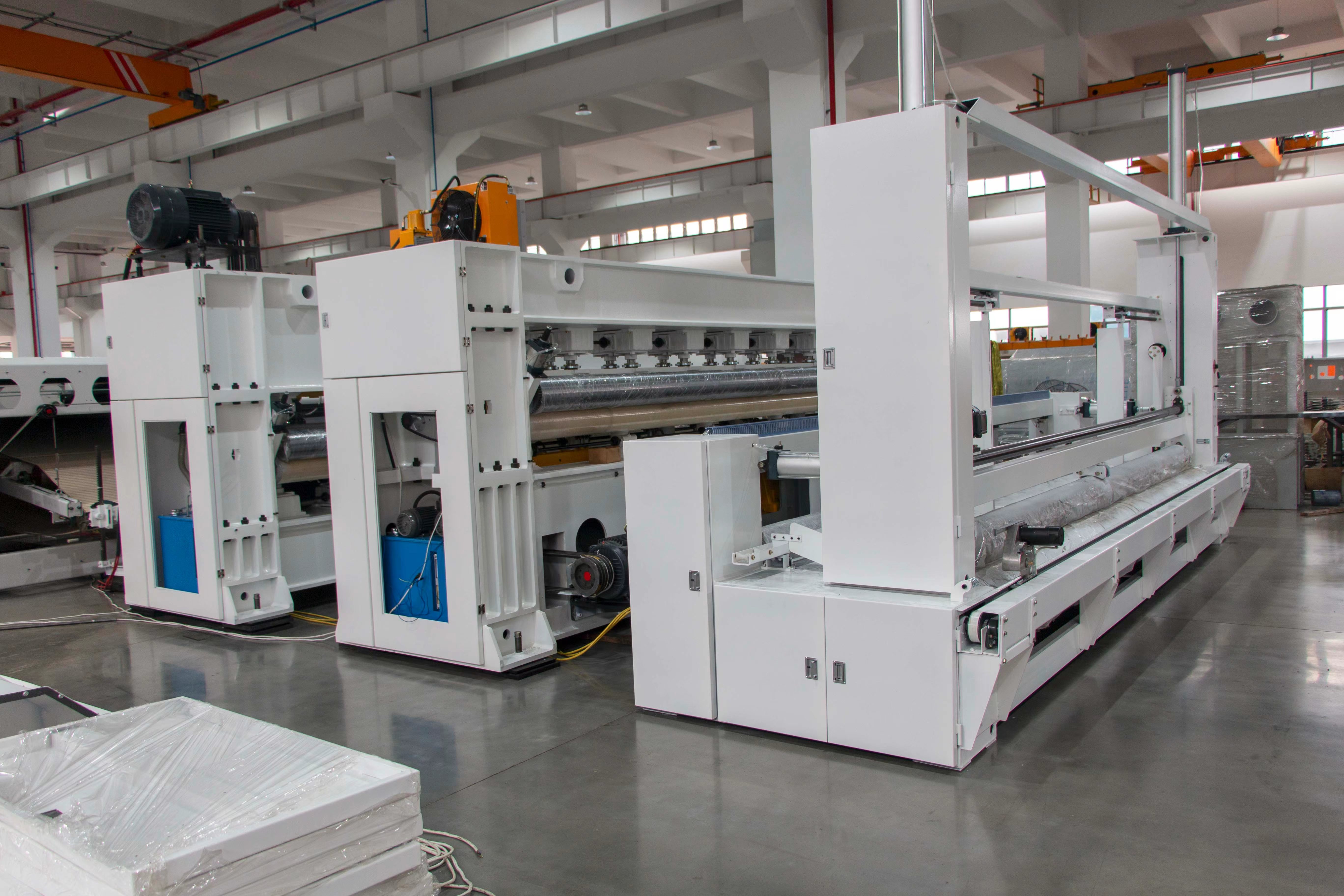

6.Use a cutting & rolling machine to cutting required size or rolling to roll.
7.The finished products can use in home textile field like comforter,duvet,quilt,sofa, mattress,insulation purpose like thermal insulation & sound insulation,handbag and other environmentally friendly handicrafts etc.
8.The products produced have strong breath ability, high deformation rebound rate, insulation and noise reduction properties, corrosion resistance, and can resist the erosion of microorganisms, fungi, acids, salts, and hydrocarbons. They are non-toxic, odorless, and do not release harmful substances such as formaldehyde.
Machine Specification
|
Model |
Output |
Finished Width |
Density |
Product |
|
SN-WDL 850 |
100-150 KG/H |
1600 MM 2000 MM 2200 MM 2400 MM 2600 MM 2800 MM 3000 MM 3200-6000 MM |
40-200 GSM 70-300 GSM 120-300 GSM 120-400 GSM 120-500 GSM 120-600 GSM 120-800 GSM ≤3000 GSM |
Polyester Wadding Roll Soft Wadding Spray Glue Wadding Felt Geotextile Thermal Bonding Material Hard Wadding Insulating Material |
|
SN-WDL 1230 |
150-200 KG/H |
|||
|
SN-WDL 1850 |
200-300 KG/H |
|||
|
SN-WDL 2000 |
300-350 KG/H |
|||
|
SN-WDL 2300 |
350-400 KG/H |
|||
|
SN-WDL 2500 |
400-500 KG/H |
|||
|
SN-WDL 2800 |
500-600 KG/H |
|||
|
SN-WDL 3000 |
600-600 KG/H |
|
Machine Type |
Grams Per Square Meter |
Heating Type |
|
Soft Wadding Oven |
≤800GSM Soft Wadding |
Electric Natural Gas LPG |
|
Hard Wadding Oven |
≤3000GSM Hard Wadding |
|
|
Spray Glue Oven |
≤500GSM Spray Glue Wadding |
|
|
Needle Punch Machine |
≤1000GSM Felt |
Needle |
Warranty
1.We provide one year quality guarantee for our machine and electrical component from the date customer received the machine.
2.We provide installation video and user manual for all of our machine.
3.We can take video to help you completely solving any problems you encounter during installation and daily use,because we have all machine ready in our exhibition room.
4.Except one year warranty, we provide lifelong free guidance for our product.
