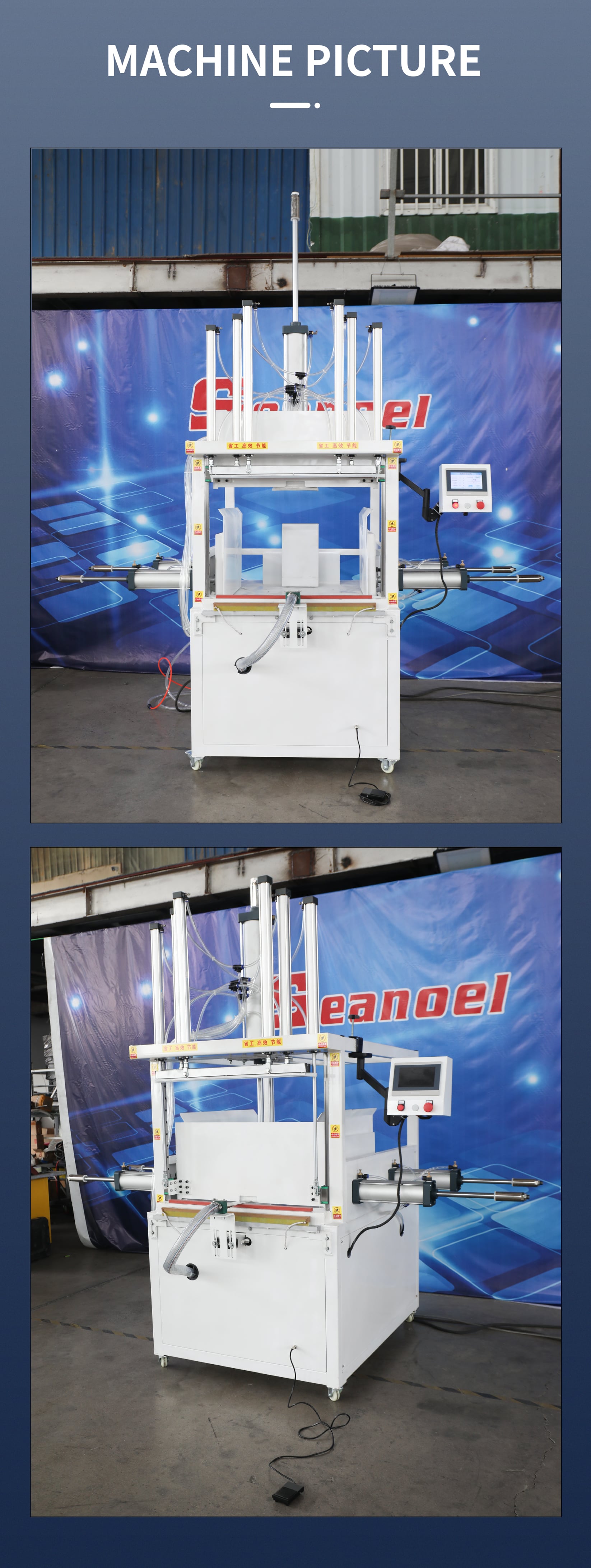

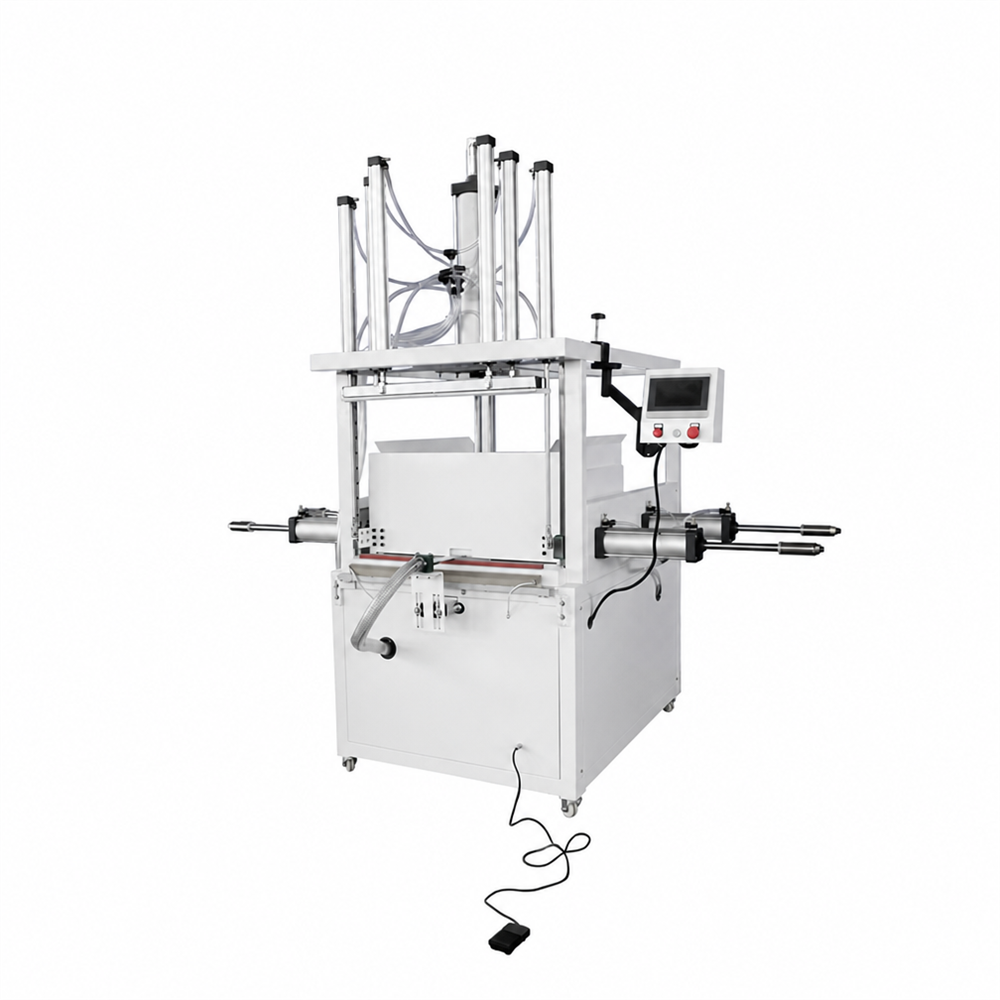

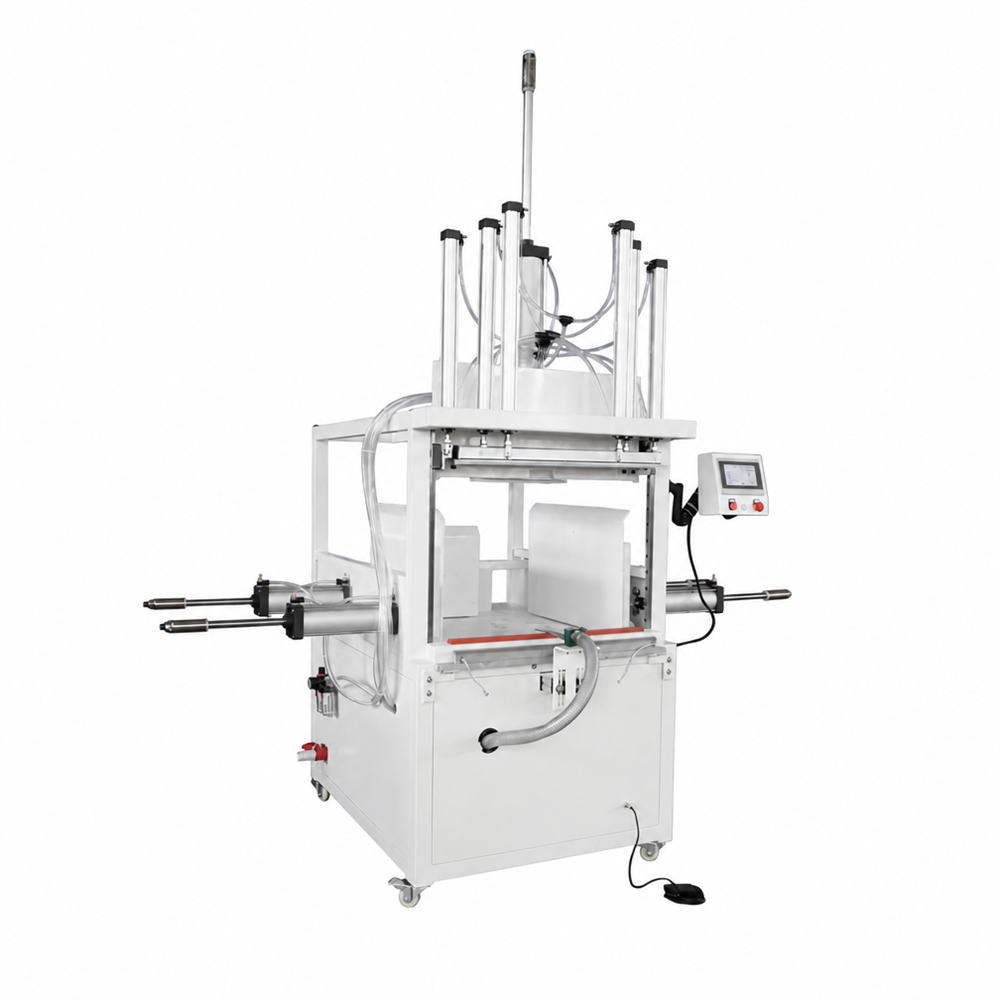

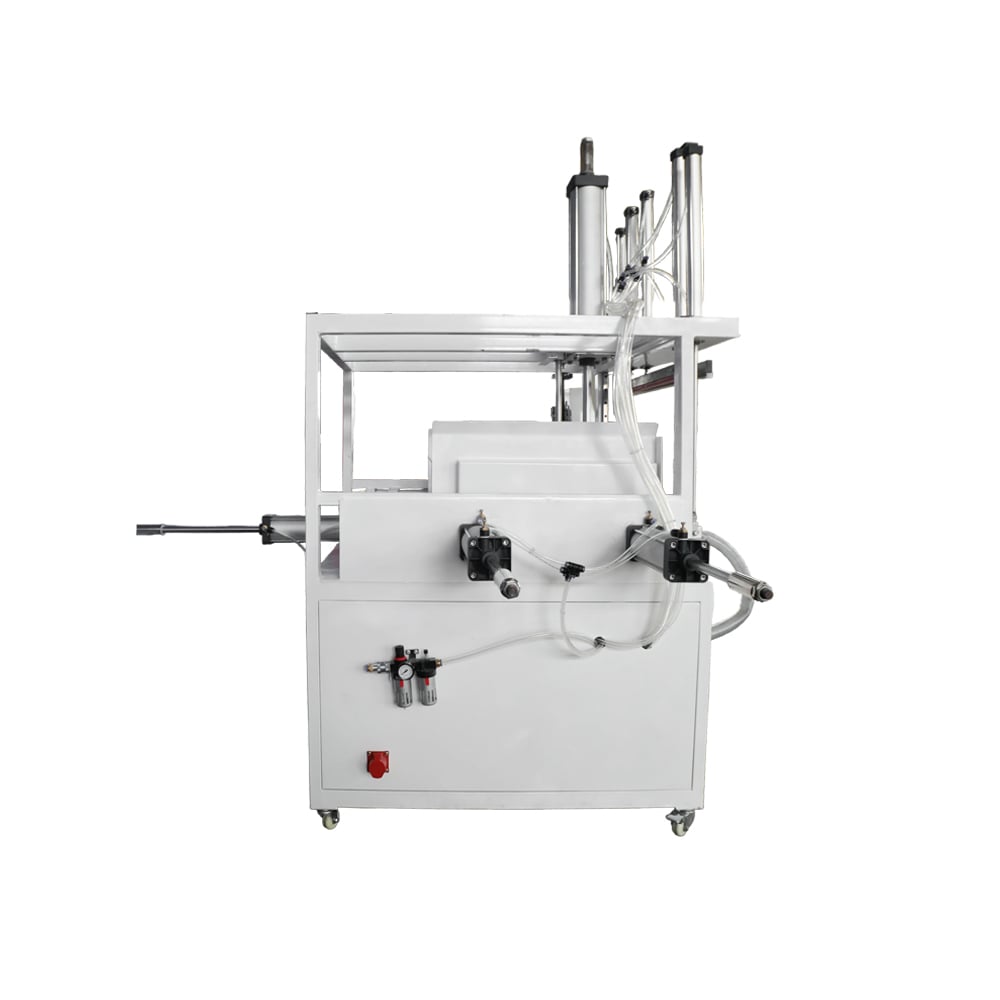

Six Sided Block Shape Compression Sealing Machine

Six-Sided Block Shape Compression Sealing Machine: Improving Soft Product Packaging and Logistics Efficiency

The Six Sided Block Shape Compression Sealing Machine is a professional packaging solution for compressing and sealing pillows, cushions, pet beds, lazy sofas, quilts, and other bulky soft products. By forming products into compact block shapes, the Six Sided Block Shape Compression Sealing Machine reduces package volume, saves warehouse space, lowers transportation costs, and improves the appearance of finished packages. It is suitable for home textile factories, bedding manufacturers, furniture suppliers, pet product producers, and e-commerce packaging operations.

Unlike conventional top compression equipment, the Six Sided Block Shape Compression Sealing Machine compresses products simultaneously from six directions: top, bottom, front, back, left, and right. This multi-directional system creates a more uniform and stable package, making the Six Sided Block Shape Compression Sealing Machine suitable for soft, loose, oversized, or difficult-to-stack products. The compressed packages are easier to store, transport, load, and display.

The Six Sided Block Shape Compression Sealing Machine is equipped with a powerful vacuum pump that extracts air from the packaging bag during operation. Vacuum pumping removes excess air from the product and bag, allowing the package to become more compact. After compression, the sealing system closes the bag securely with a clean and reliable heat seal. This process combines six-sided compression, vacuum pumping, and sealing in one efficient operation.

The vacuum pumping time, sealing heating time, and cooling time can be adjusted through the PLC control system. These settings allow the Six Sided Block Shape Compression Sealing Machine to adapt to different products, packaging bags, and compression requirements. The final packaging height can also be adjusted by replacing the upper pressure plate and rear push plate, providing flexibility for products with different dimensions.

Both manual and automatic operating modes are available. Manual mode is suitable for sample production, small orders, and flexible adjustments, while automatic mode supports continuous production and improved efficiency. The simple control design makes the Six Sided Block Shape Compression Sealing Machine convenient for daily operation and helps reduce operator workload.

The SN-6YS-800V model weighs approximately 600 kg, has a packing size of 750 × 750 mm, a press plate height of 600 mm, a capacity of about 3 pieces per minute, a power rating of 4 kW, and an 800 mm sealing width. The SN-2YS-1000V model weighs approximately 750 kg, has a packing size of 950 × 950 mm, a press plate height of 800 mm, a capacity of about 2 pieces per minute, a power rating of 4 kW, and a 1000 mm sealing width.

In summary, the Six Sided Block Shape Compression Sealing Machine provides an efficient solution for compact block-shape packaging. With six-direction compression, powerful vacuum extraction, adjustable PLC settings, replaceable plates, and manual or automatic operation, the Six Sided Block Shape Compression Sealing Machine helps manufacturers improve packaging quality, save space, reduce logistics costs, and increase production efficiency.

We provide one year quality guarantee for our machine and electrical component from the date customer received the machine.

We provide installation video and user manual for all of our machine.

We can take video to help you completely solving any problems you encounter during installation and daily use,because we have all machine ready in our exhibition room.

Except one year warranty, we provide lifelong free guidance for our product.
