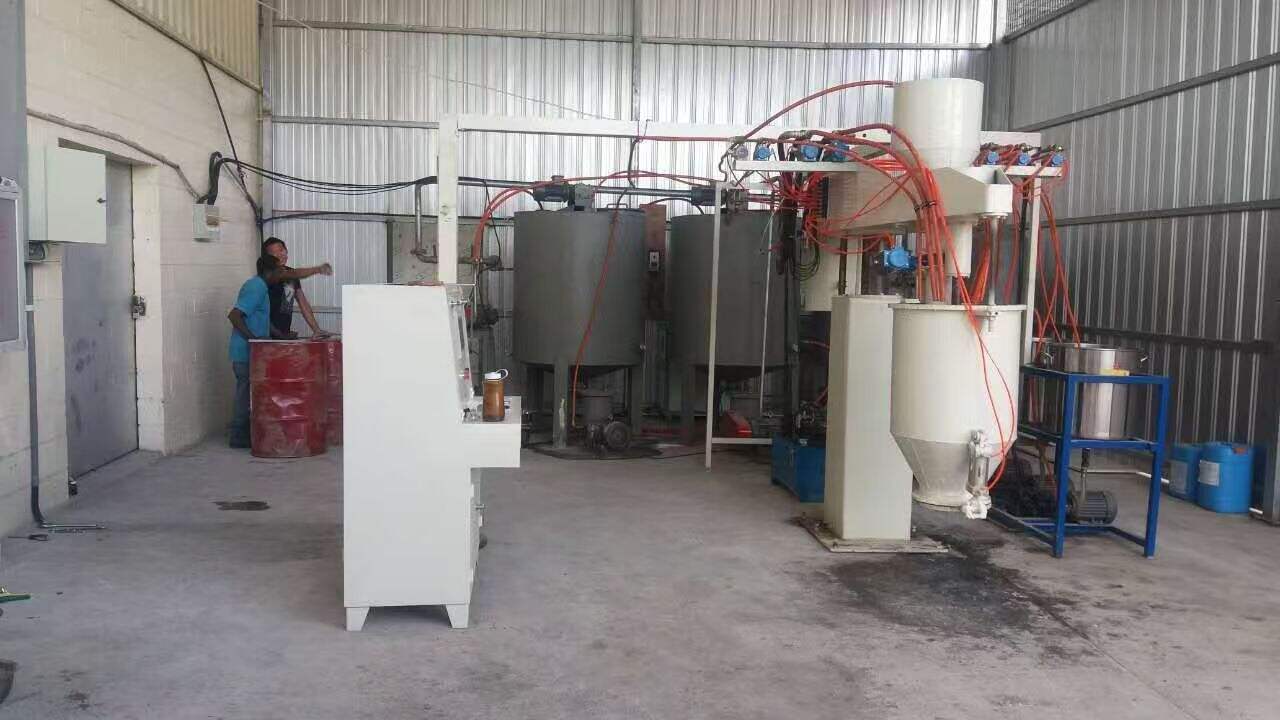

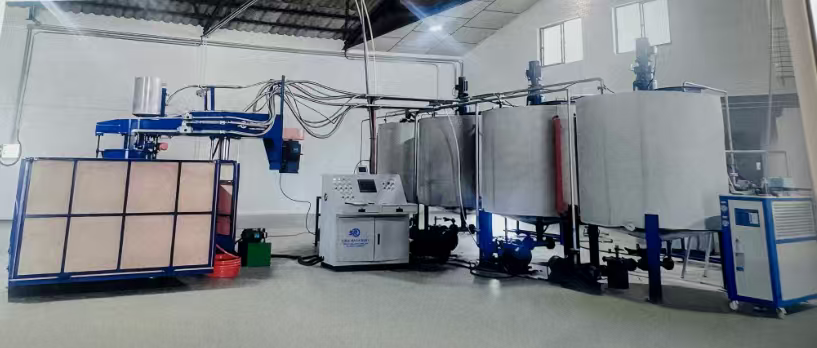

Semi Automatic Foam Block Foam Mold Foaming Machine
Semi Automatic Foam Block Foam Mold Foaming Machine: Boosts production efficiency by 40%, reduces labor costs by 30%. ISO 9001-certified.
Description
1.According to the purpose of the foam, different raw material configurations can be selected,generally ranging from 2-8 components.
2.The mold box quantity can be 1 or 2,if high output demands can use 2 pieces mold box.
3.Store multi components raw material in the material tank,All material are proportioned by a metering pump,then send to mixing head.
4.All components raw material mixing at a high speed,then drop on the base of mold box.
5.Mold box base moving to mold box cover by track,foaming inside mold box after heating and curing process.
Machine Specification
|
Model |
SN-FPC2 |
|
Material Components |
2-8 Components |
|
Max Foaming Size |
L2000*W2330MM |
|
Max Foaming Height |
1250MM |
|
Flowering Density |
10-60KG/M³ |
|
Mold Quantity |
1/2 |
|
Mixing Bucket Capacity |
180L |
Warranty
1.We provide one year quality guarantee for our machine and electrical component from the date customer received the machine.
2.We provide installation video and user manual for all of our machine.
3.We can take video to help you completely solving any problems you encounter during installation and daily use,because we have all machine ready in our exhibition room.
4.Except one year warranty, we provide lifelong free guidance for our product.
FAQ
Q1: We are manufacturer or trade company?
A:Our factory build on 2003 year, We are a home textile equipment source manufacturer. We helped many client build their factory and serviced more than 100+ Countries & Regions.
Q2: Service?
A:Our engineer are online 10 hours every day to provide you with the highest quality service,completely solving any problems you encounter during installation and daily use.
Q3: Why choose us?
A:We are a home textile equipment source manufacturer,covering almost all pillow, quilt,mattress,polyester wadding and foam related machinery,You can get the most suitable suggestion about the machine configuration according to your raw material and final products.Then make a one-stop procurement and service here.
Q4:What is Seanoel?
A:Seanoel is a our brand name,noel is the pronunciation of promise in Chinese.
Our promise is vast and profound like the sea,choose Seanoel means you will get promise and guarantee from it.
