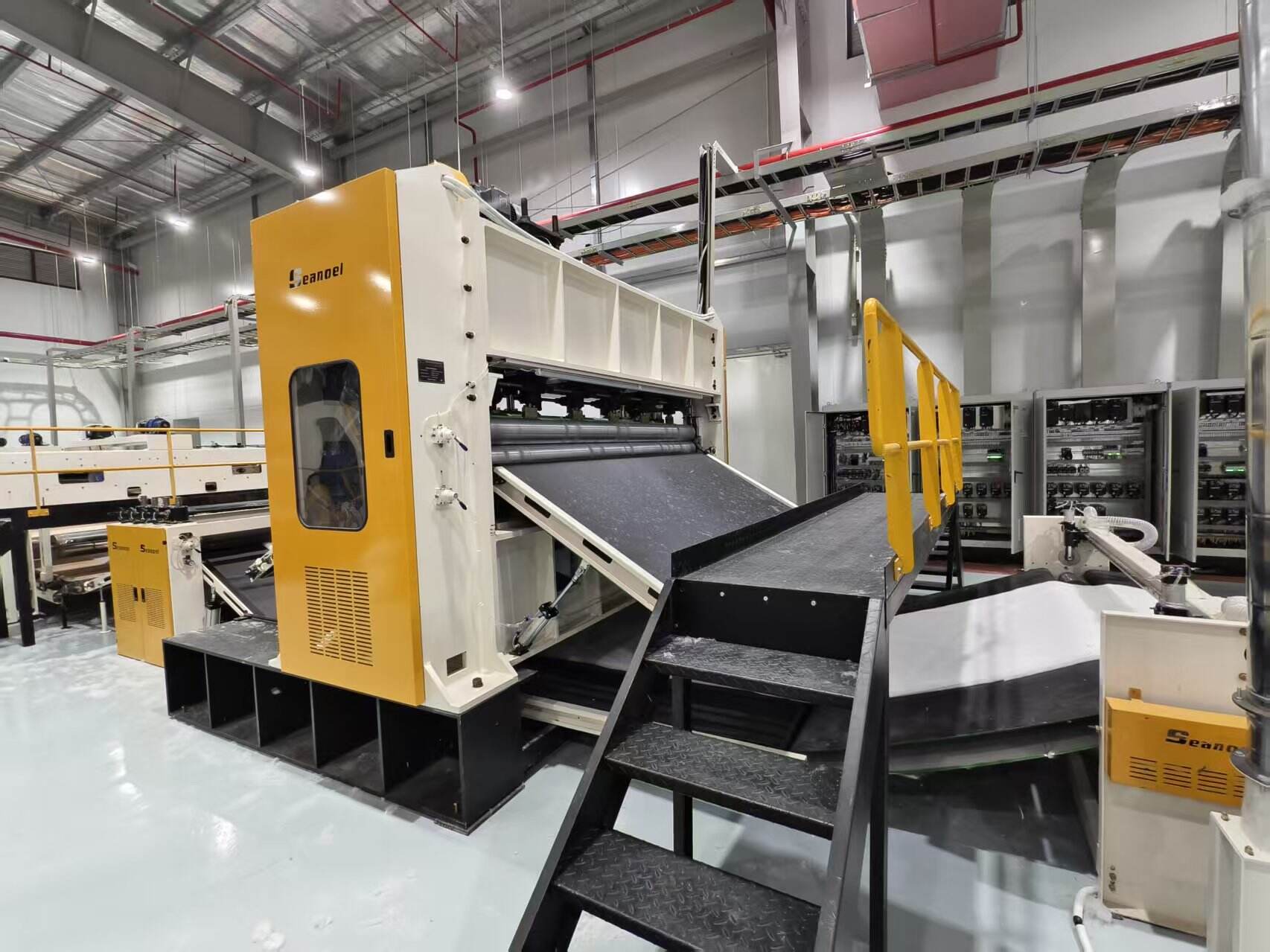

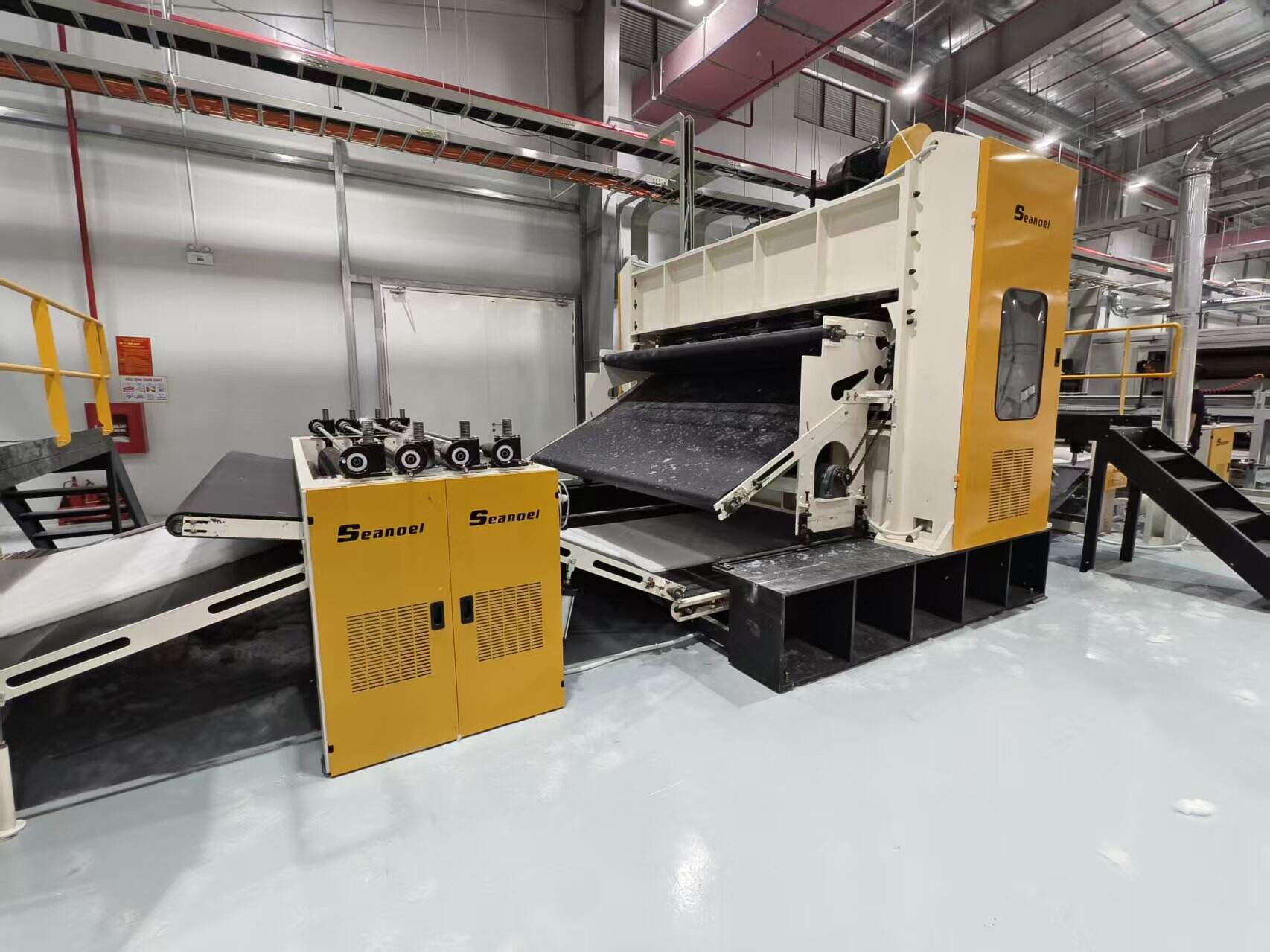

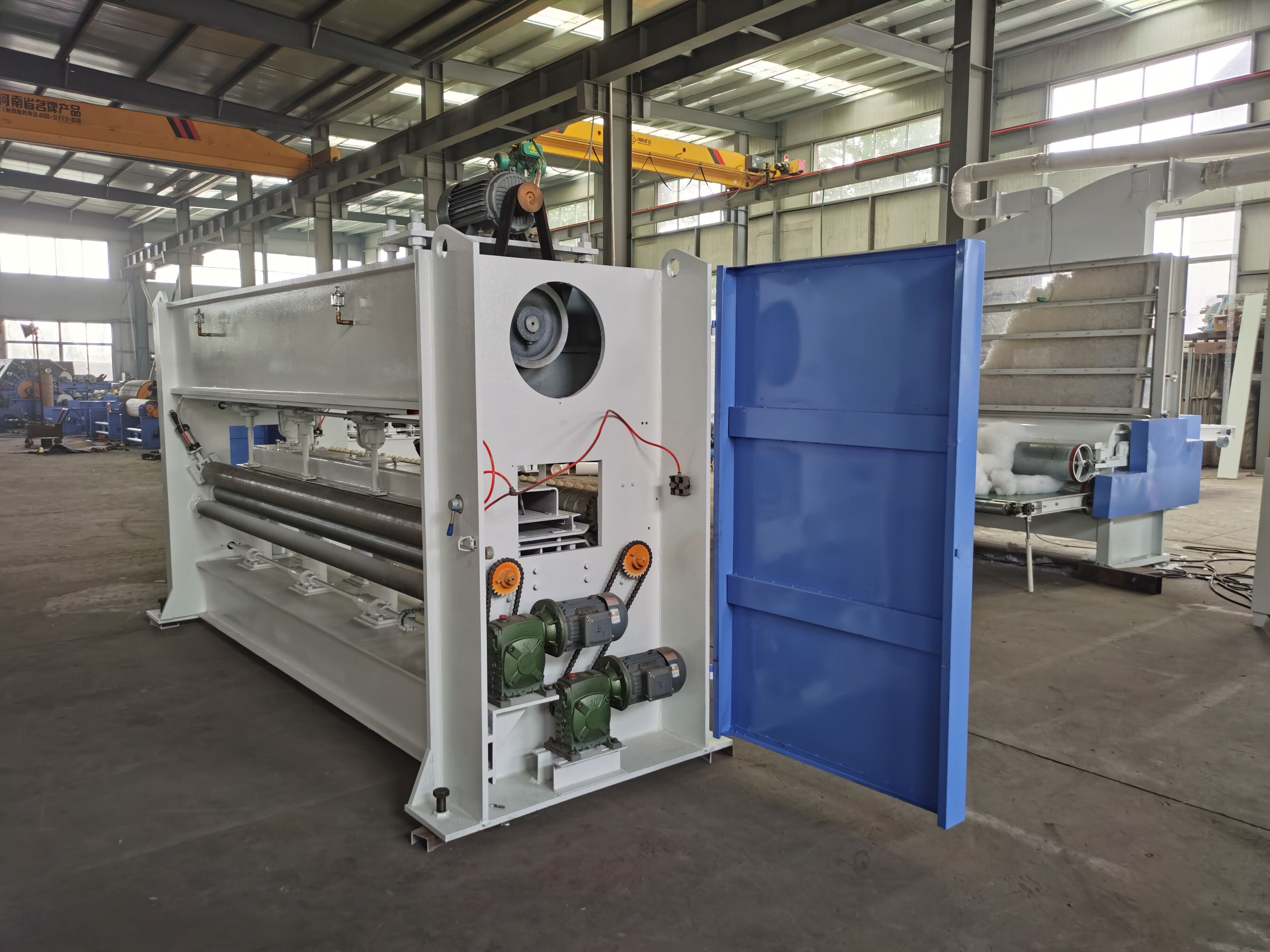

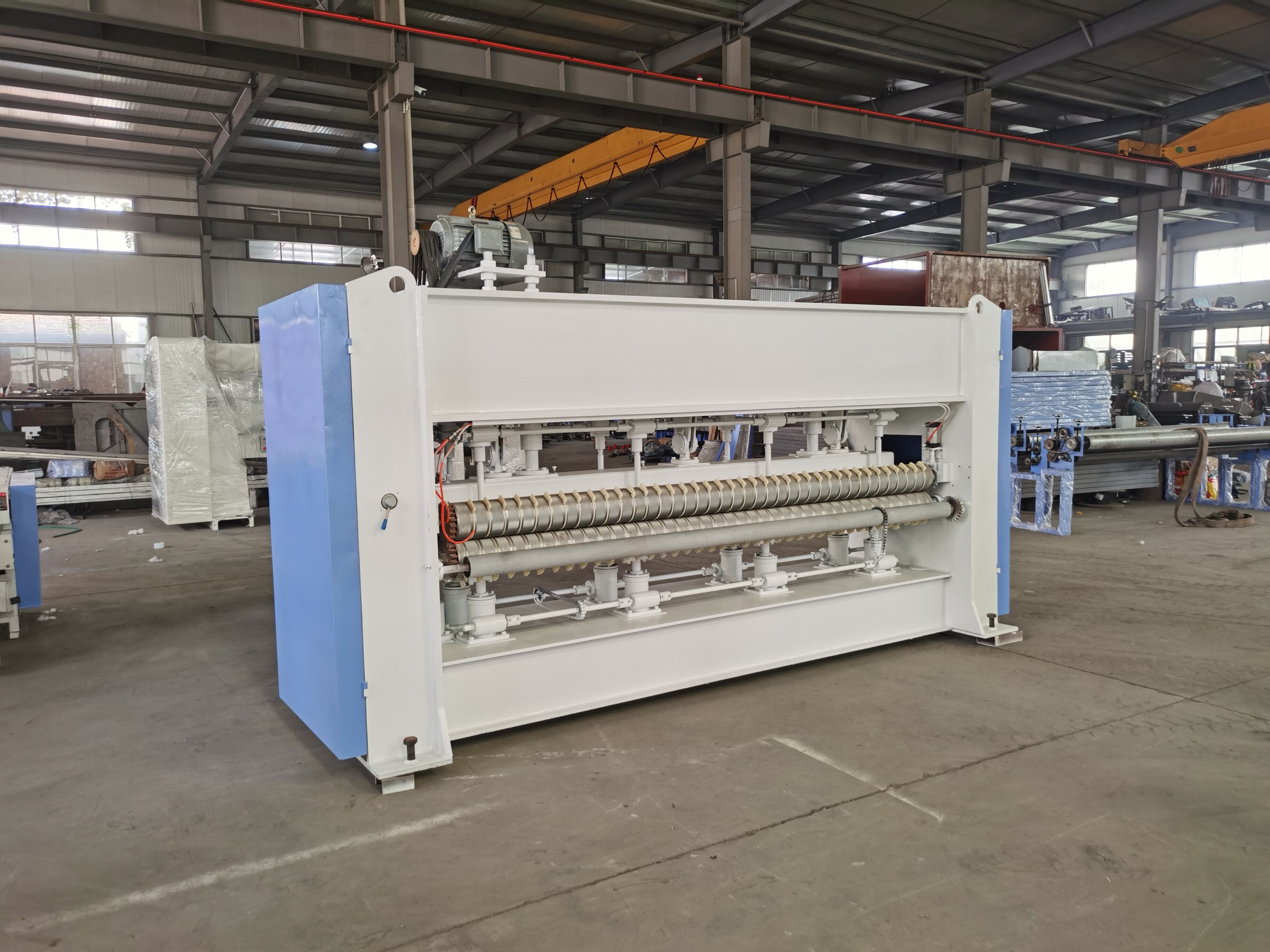

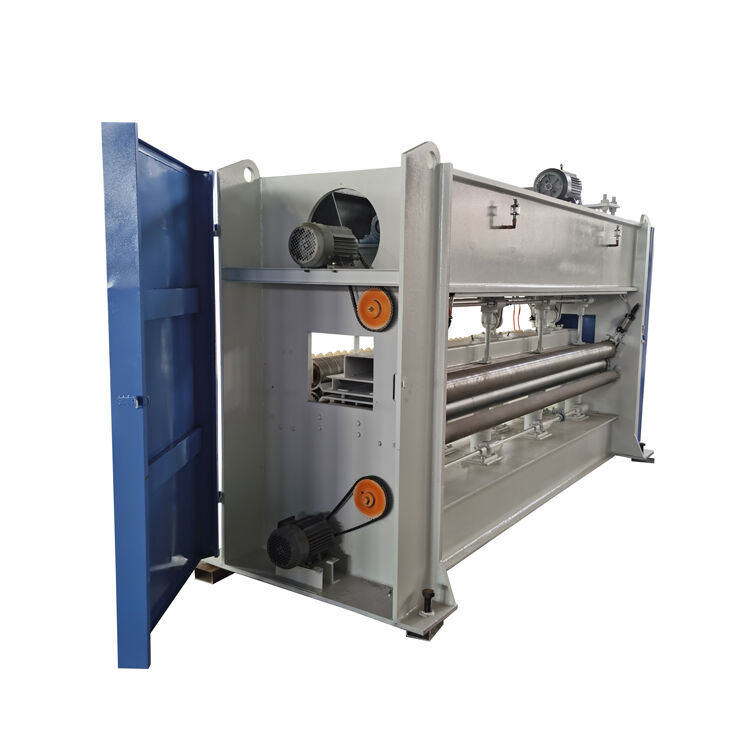

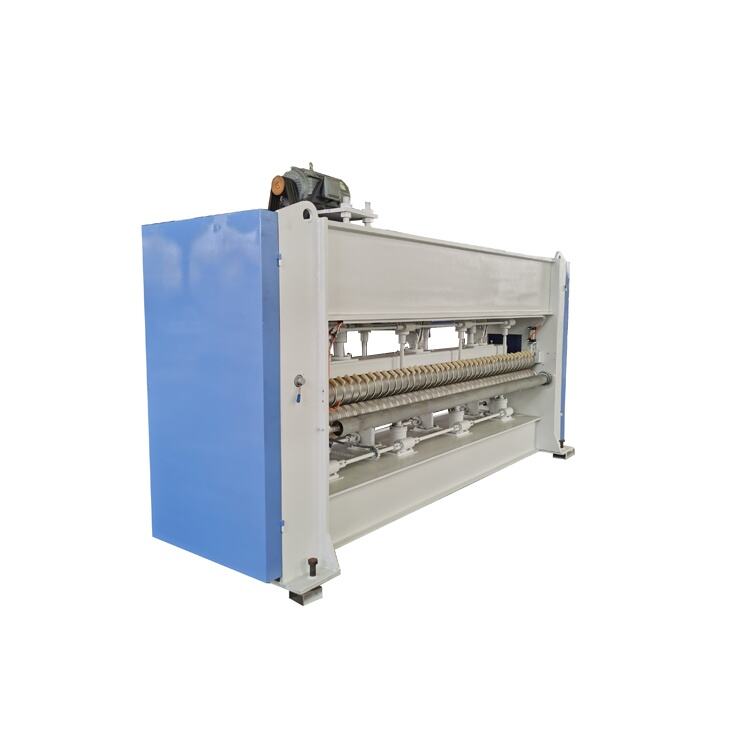

Polyester Wadding Geotextile Needle Punch Felt Machine
Polyester Wadding Geotextile Needle Punch Felt Machine delivers 35% faster throughput & ±2% GSM precision. Trusted by 300+ nonwovens manufacturers. Meets ISO 9001 & CE standards.
Description
1.Use needle to pass the fluffy cotton web through the upper and lower thorns to entangle the fibers to form a thinner wadding or obtain a non-woven fabric with a certain longitudinal tension
2.Mainly used for production non-woven,needle-punched cotton and needle-punched felt, used to make thin wadding, blankets, quilts, mattresses, insulating materials, non-woven fabrics, greenhouse cloths, car linings, handbags, insoles, rags, washing cloths and other product
3.Low, medium and high speed needle punch machines can meet different types of materials and obtain products in different states (such as different thicknesses, different hardness, and different densities)
4.According to function and purpose,it can be divided into pre-acupuncture (down stroke), main acupuncture, and lower acupuncture (upstroke)
5.The machine speed can be adjusted by frequency conversion, which can produce different products with thickness from 1MM to 30MM and 50-1000GSM
Machine Specification
|
Model |
SN-NP1 |
SN-NP2 |
SN-NP3 |
|
Speed |
400-500RPM |
500-600RPM |
600-800RPM |
|
Working Width |
2000-6000MM |
||
|
GSM |
600GSM |
800GSM |
1000GSM |
|
Needle Density |
3500-4000PCS |
4000-5500PCS |
5500-6500PCS |
|
Needle Frequency |
400/MIN |
600/MIN |
800/MIN |
|
Output |
6-10M/MIN |
||
|
Stroke |
40-60MM |
||
|
Total Power |
11.75KW |
20KW |
28KW |
Warranty
1.We provide one year quality guarantee for our machine and electrical component from the date customer received the machine.
2.We provide installation video and user manual for all of our machine.
3.We can take video to help you completely solving any problems you encounter during installation and daily use,because we have all machine ready in our exhibition room.
4.Except one year warranty, we provide lifelong free guidance for our product.
