Description
1.Through the pressure sensor,the permanent magnet variable frequency screw air compressor senses the actual pressure and air consumption in the system in time,change the speed of the air compressor through the precise control of the electrical and frequency converter,to adjust the system pressure and achieve the on-demand output of compressed air;
2.When the air consumption of the system is reduced,the air compressor reduce the speed to reduce the output of compressed air.When the air consumption of the system is increased,the motor speed increased to increase the amount of compressed air to maintain stable system pressure.
3.Adopt stepless adjustment characteristic,the permanent magnet variable frequency screw air compressor can achieve high-speed adjustment and control of the pressure.
4.Maximum starting current is about twice the rated current,compared with the power frequency start-up is generally more than 6 times the rated current,greatly reduce the impact on the power grid and mechanical system.
5.The inverter adjust motor speed according to the actual air consumption,when the air consumption is low,the air compressor can be automatically dormant.
6.Adopting permanent magnet frequency conversion technology, with low noise and minimal mechanical wear.
Machine Specification
|
Model |
SN-7.5A/YC |

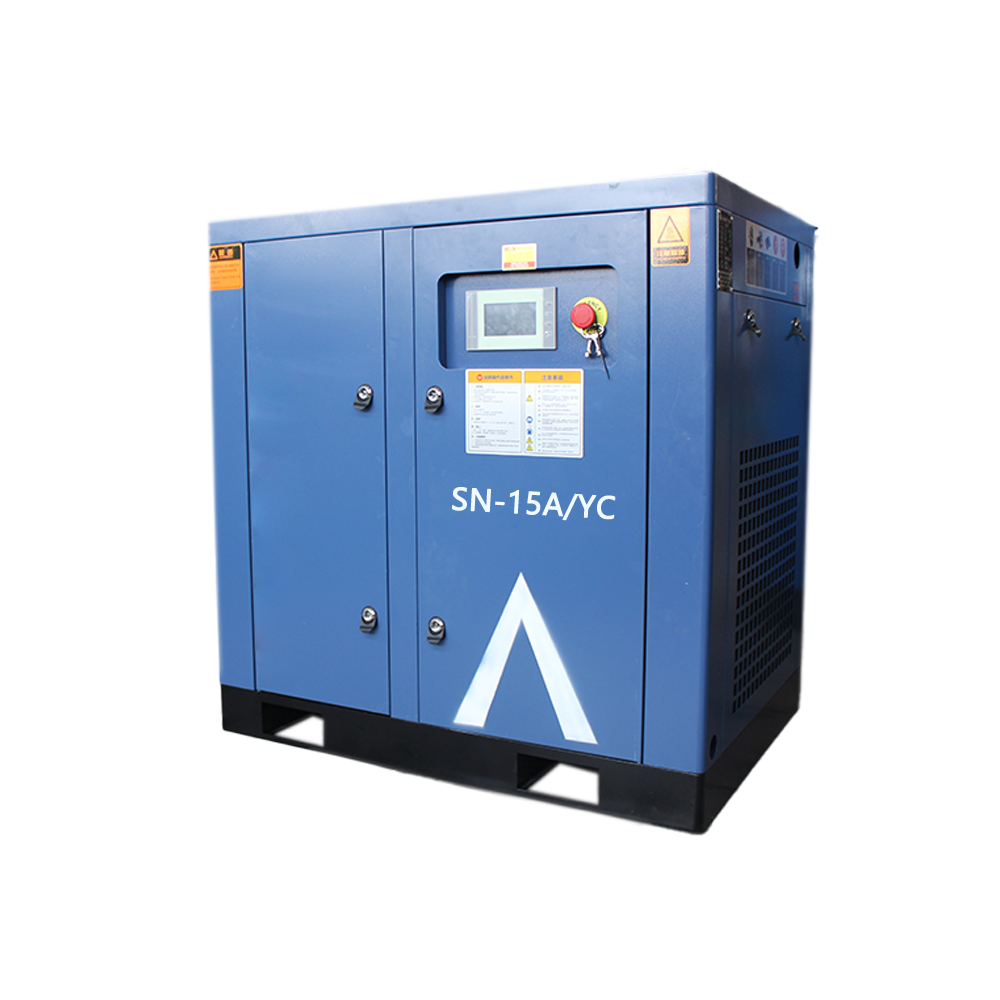

SN-15A/YC |
SN-22A/YC |
|
Power |
7.5KW |
15KW |
22KW |
|
Noise |
70±2DB |
||
|
Rotary Speed |
3000RPM |
||
|
Pipe Diameter Inch |
RP1/2 |
RP3/4 |
RP1 |
|
Air Pressure |
0.8MPA |
0.8MPA |
0.8MPA |
|
Volume of Flow |
1M³/MIN |
2.3M³/MIN |
3M³/MIN |
|
Weight |
160KG |
240KG |
350K |
Warranty
● We provide one year quality guarantee for our machine and electrical component from the date customer received the machine.
● We provide installation video and user manual for all of our machine.
● We can take video to help you completely solving any problems you encounter during installation and daily use,because we have all machine ready in our exhibition room.
● Except one year warranty, we provide lifelong free guidance for our product.
FAQ
Q1: We are manufacturer or trade company?
A:Our factory build on 2003 year, We are a home textile equipment source manufacturer. We helped many client build their factory and serviced more than 100+ Countries & Regions.
Q2: Service?
A:Our engineer are online 10 hours every day to provide you with the highest quality service,completely solving any problems you encounter during installation and daily use.
Q3: Why choose us?
A:We are a home textile equipment source manufacturer,covering almost all pillow, quilt,mattress,polyester wadding and foam related machinery,You can get the most suitable suggestion about the machine configuration according to your raw material and final products.Then make a one-stop procurement and service here.
Q4:What is Seanoel?
A:Seanoel is a our brand name,noel is the pronunciation of promise in Chinese.
Our promise is vast and profound like the sea,choose Seanoel means you will get promise and guarantee from it.
