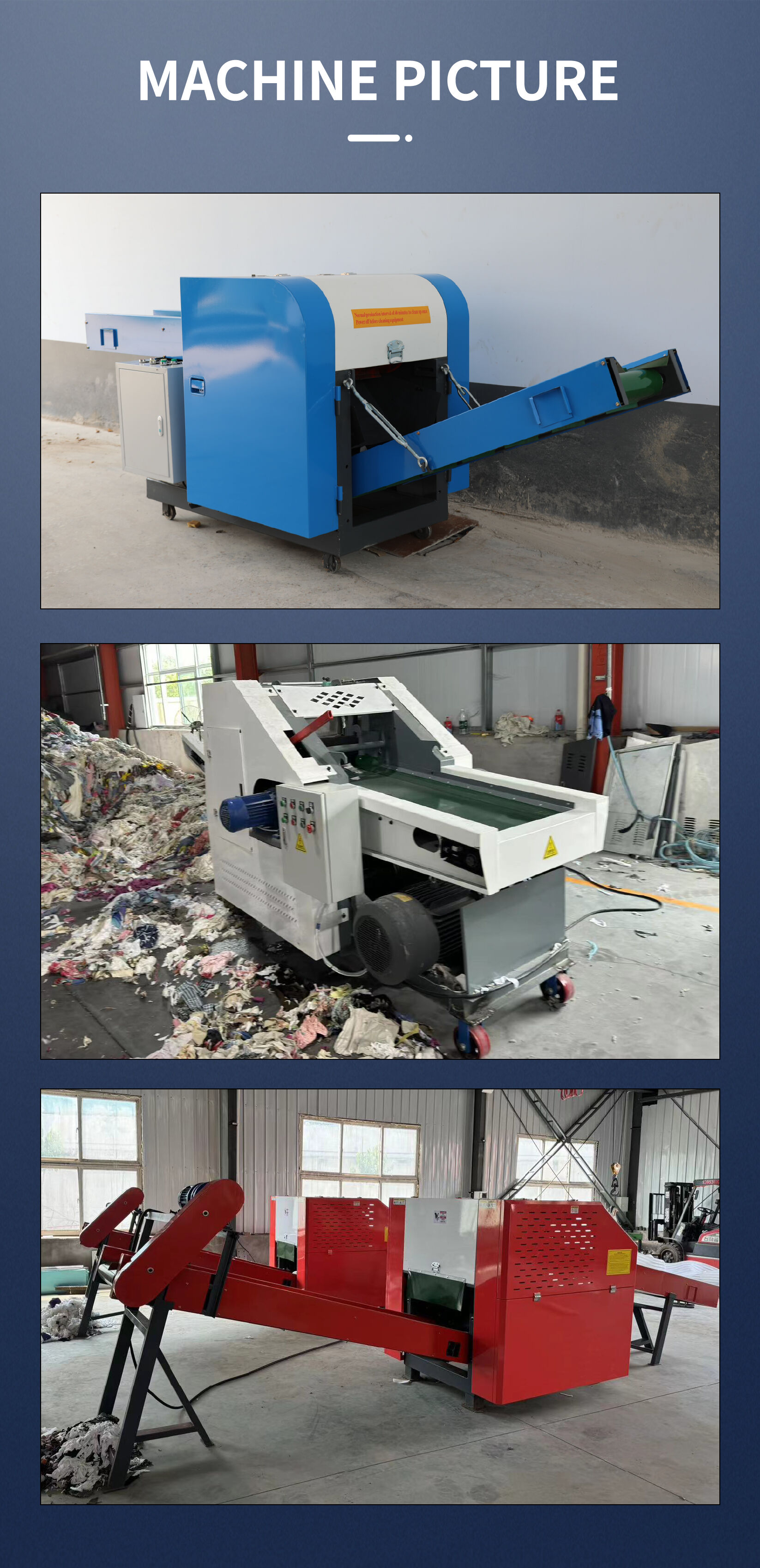

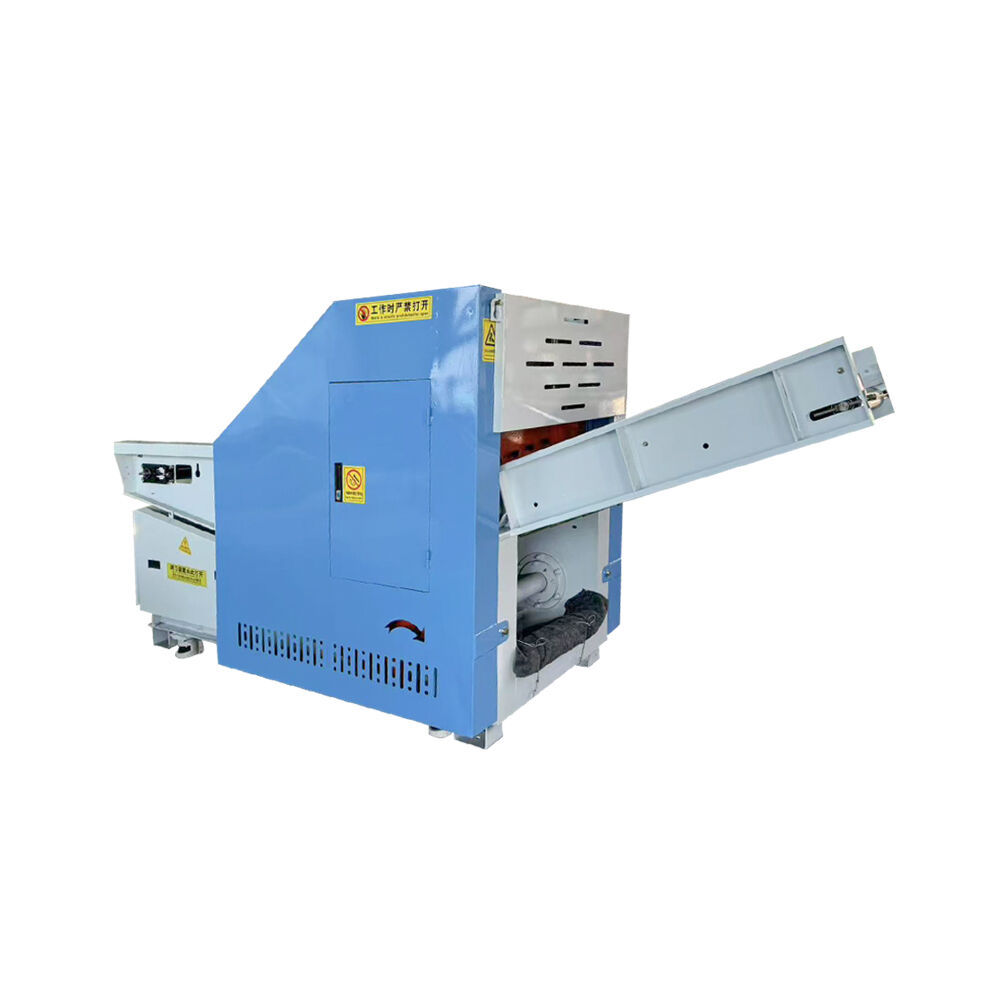

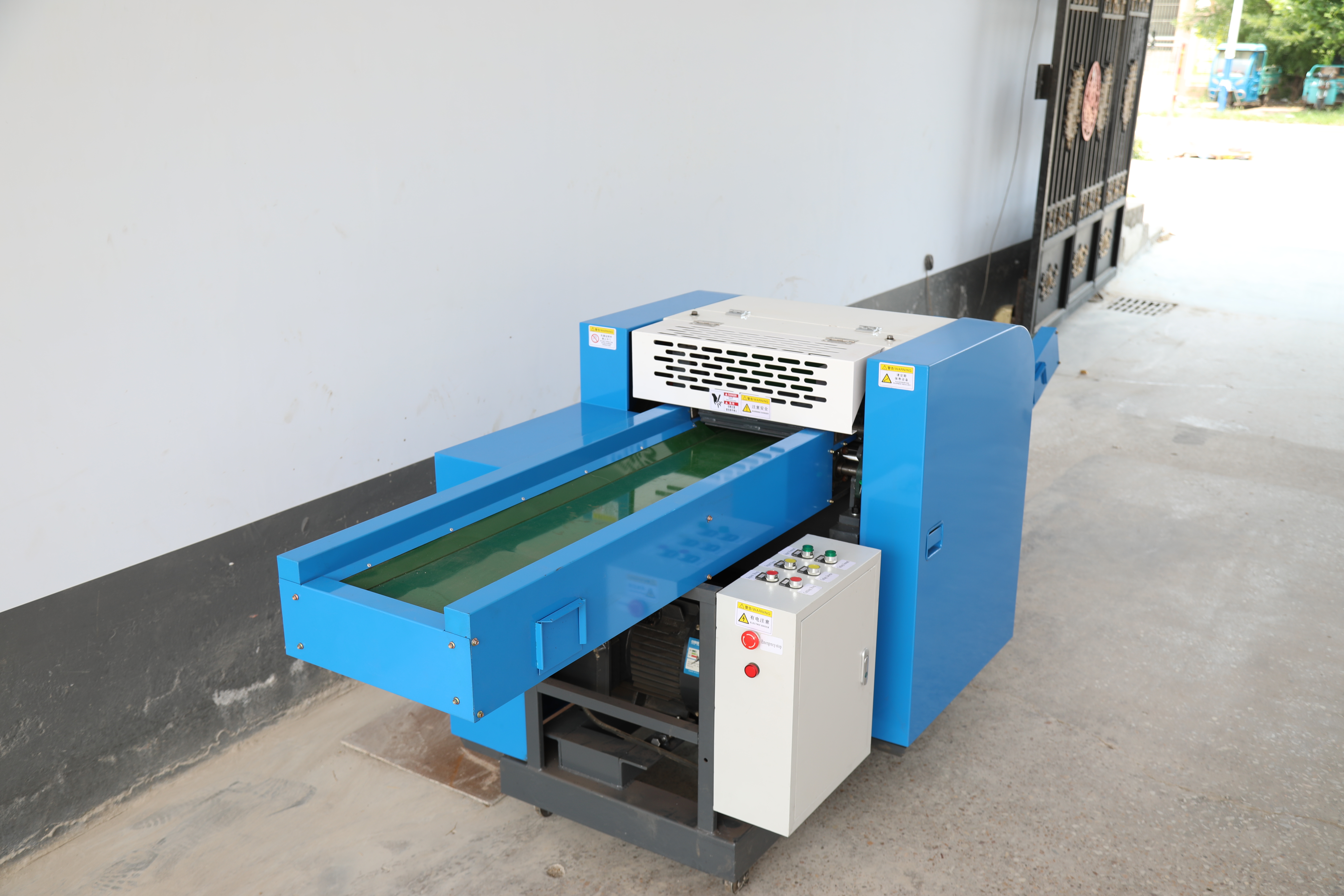

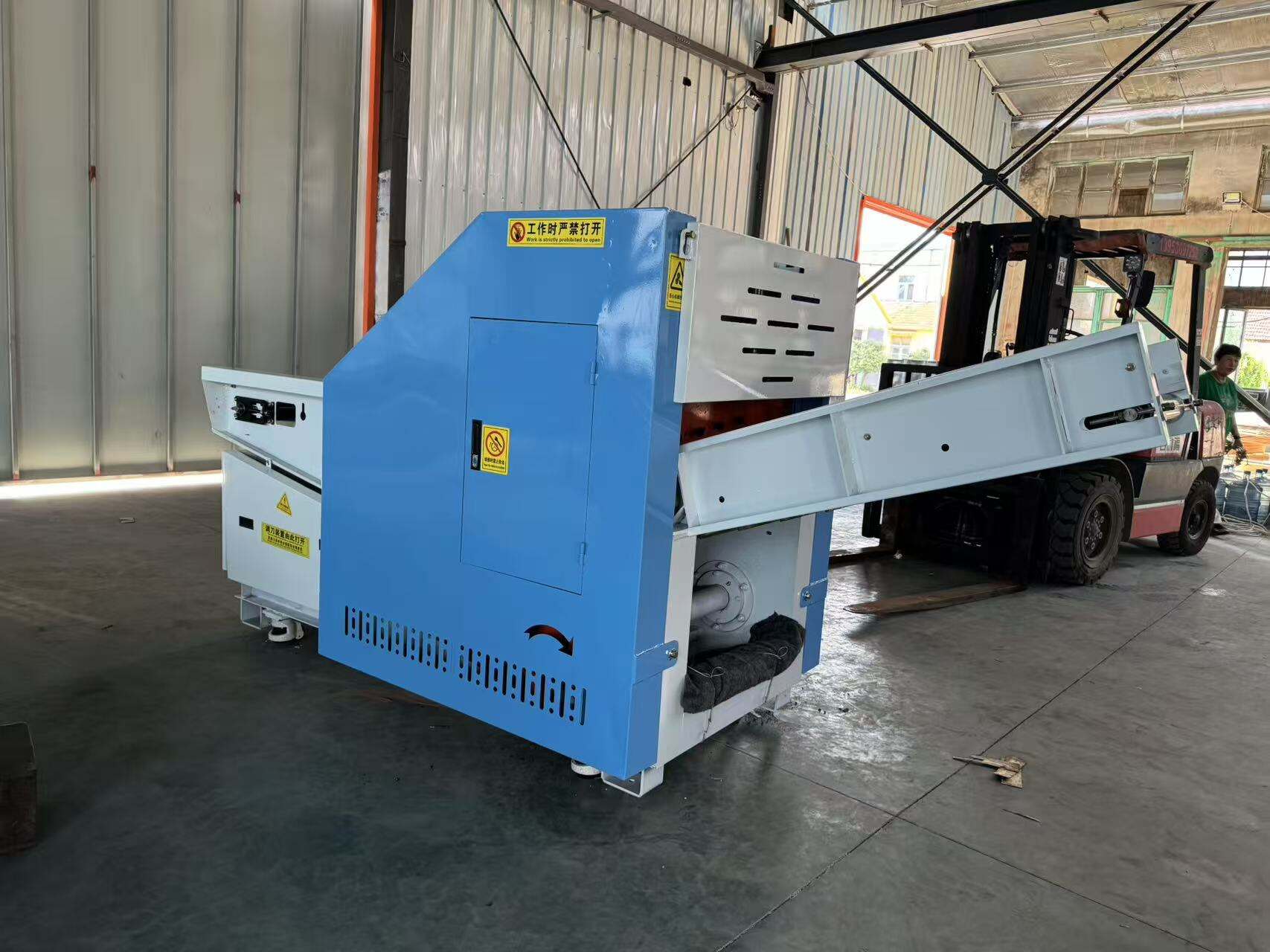

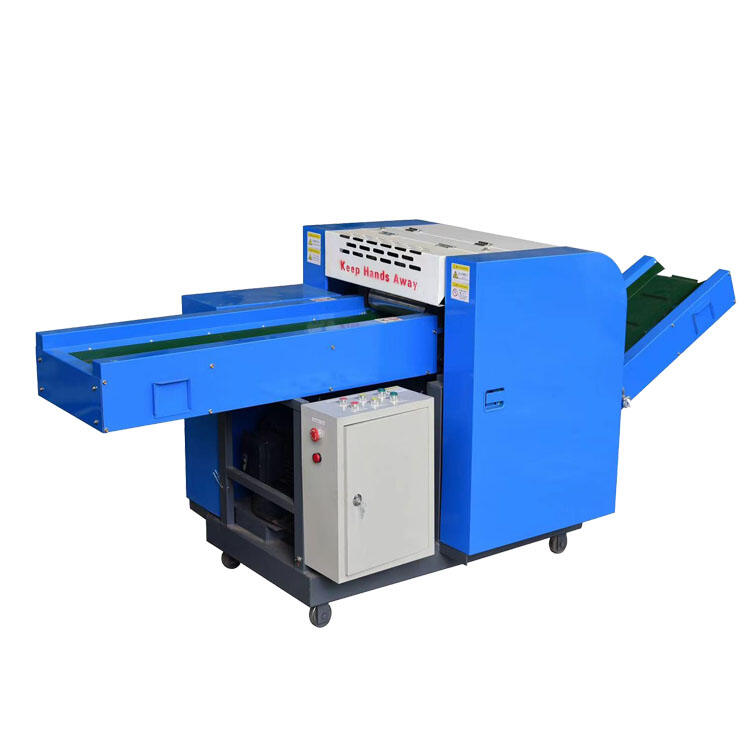

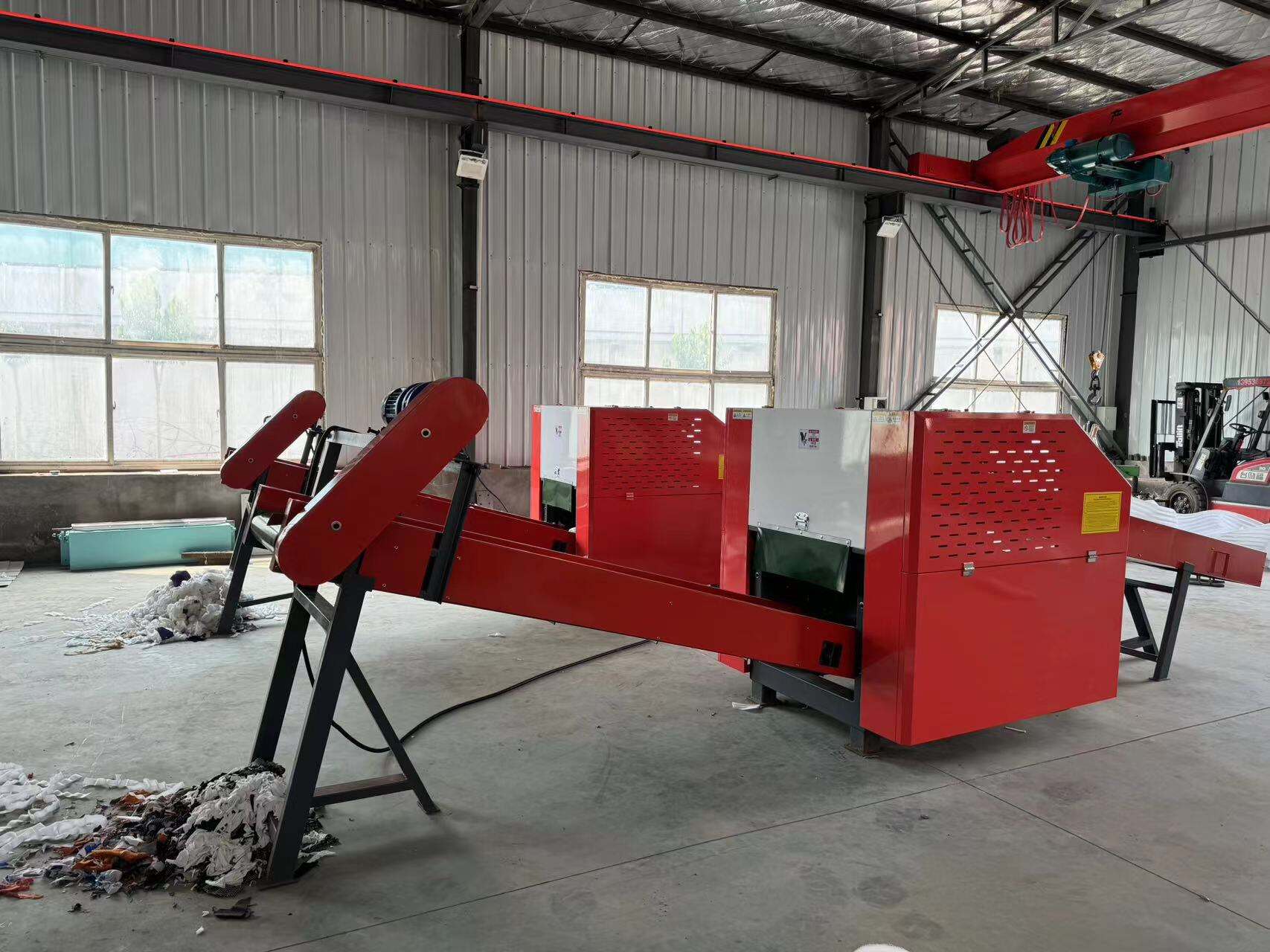

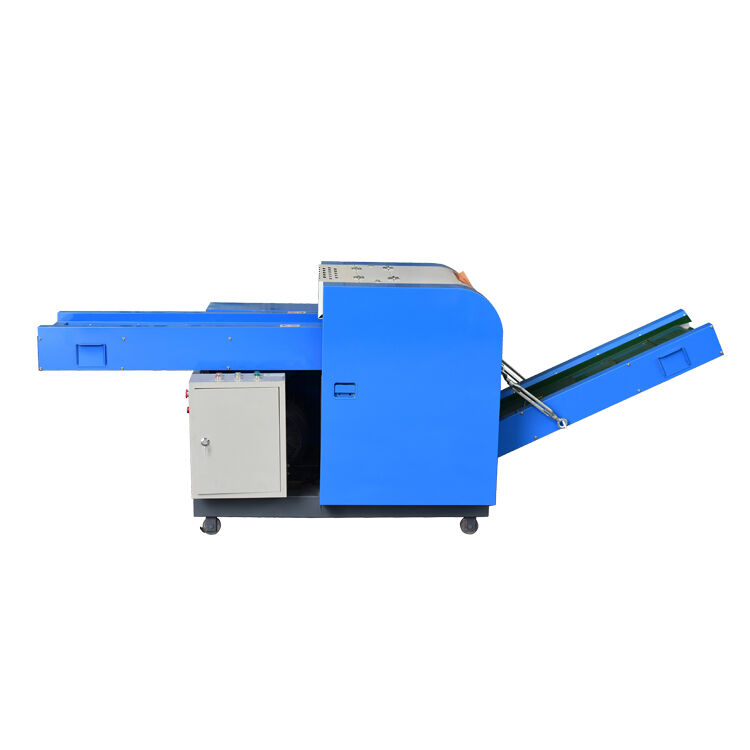

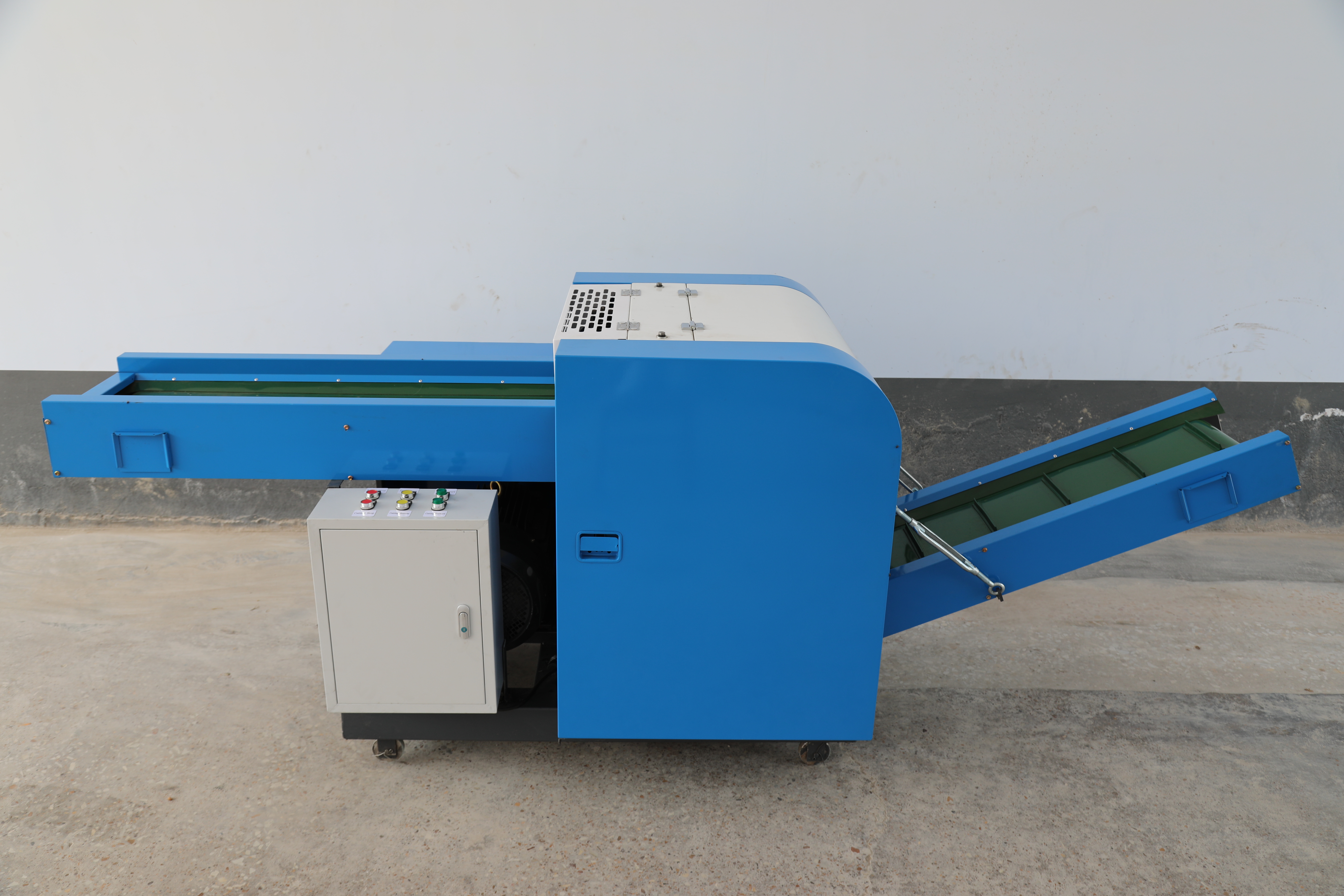

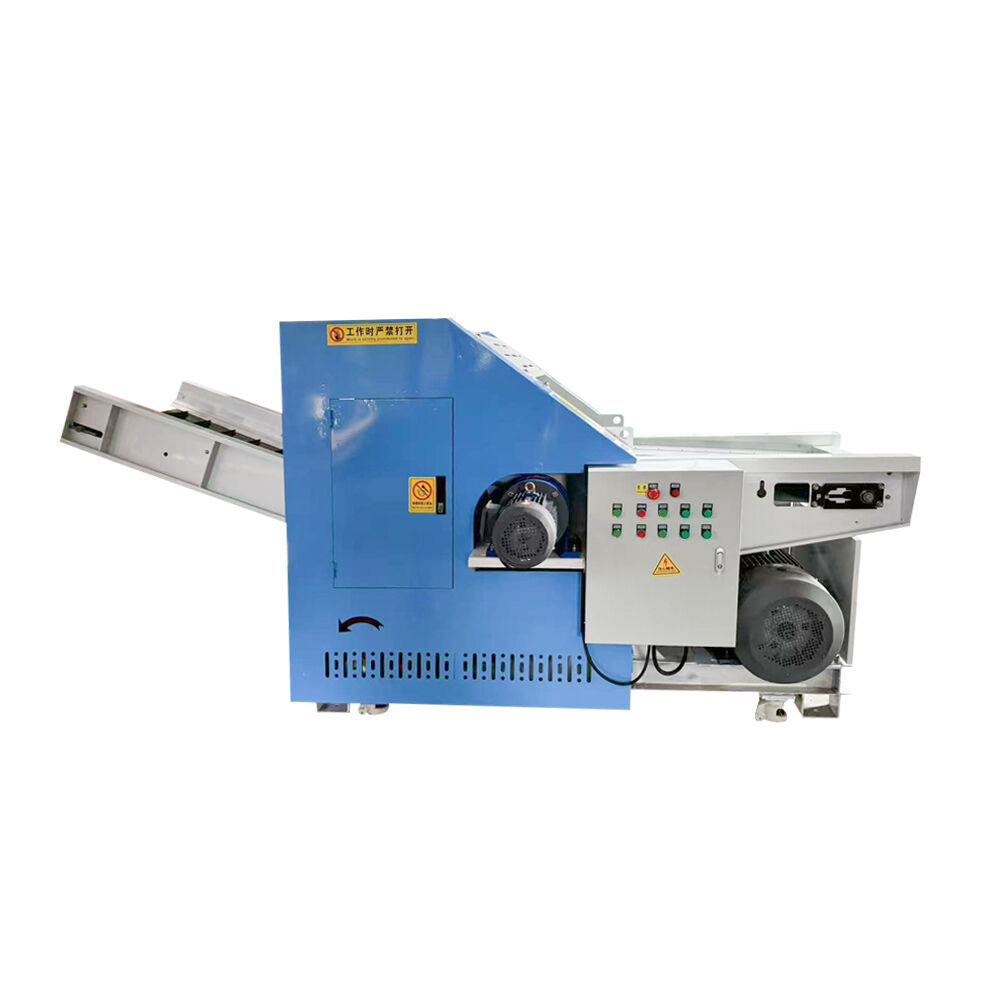

Home Textile Waste Material Fabric Cutting Machine
Home Textile Waste Material Fabric Cutting Machine: boosts throughput by 40%, reduces labor costs by 30%. CE & ISO 9001 certified.
Description
1.The machine is the first step in the waste fabric fiber recycling process,to cutting big size raw material into small pieces.
2.Mainly use to cutting waste home textile fabric like rag,fabric,garment, clothe,yarn, non-woven material,paper and plant fiber etc.
3.Cutting length can be adjusted according to change the knife speed;It can also be used in conjunction with a mesh screen to cut material into very small pieces.
4.Configuration of high strength tungsten carbide cutting tool,Fully highlight the rigidity and strength of the machine.
5.Moving knife and fixed knife cutting together,greatly improves cutting efficiency.
Machine Specification
|
Model |
SN-QD 500 |
SN-QD 800 |
SN-QD 1000 |
|
Machine Size |
3000* 950* 1100MM |
3500* 1500* 1600MM |
6500* 1550* 1600MM |
|
Weight |
500 KG |
650 KG |
1900 KG |
|
Capacity |
500 KG/H |
800 KG/H |
1000 KG/H |
|
Power |
9 KW |
13.2 KW |
19.4 KW |
|
Blade Quantity |
4 Move + 2 Fixed |
Hobbing Cutter |
4 Move + 2 Fixed |
|
Cutting Size |
20-150 MM |
50-260 MM |
20-150 MM |
Warranty
1.We provide one year quality guarantee for our machine and electrical component from the date customer received the machine.
2.We provide installation video and user manual for all of our machine.
3.We can take video to help you completely solving any problems you encounter during installation and daily use,because we have all machine ready in our exhibition room.
4.Except one year warranty, we provide lifelong free guidance for our product.
FAQ
Q1: We are manufacturer or trade company?
A:Our factory build on 2003 year, We are a home textile equipment source manufacturer. We helped many client build their factory and serviced more than 100+ Countries & Regions.
Q2: Service?
A:Our engineer are online 10 hours every day to provide you with the highest quality service,completely solving any problems you encounter during installation and daily use.
Q3: Why choose us?
A:We are a home textile equipment source manufacturer,covering almost all pillow, quilt,mattress,polyester wadding and foam related machinery,You can get the most suitable suggestion about the machine configuration according to your raw material and final products.Then make a one-stop procurement and service here.
Q4:What is Seanoel?
A:Seanoel is a our brand name,noel is the pronunciation of promise in Chinese.
Our promise is vast and profound like the sea,choose Seanoel means you will get promise and guarantee from it.
