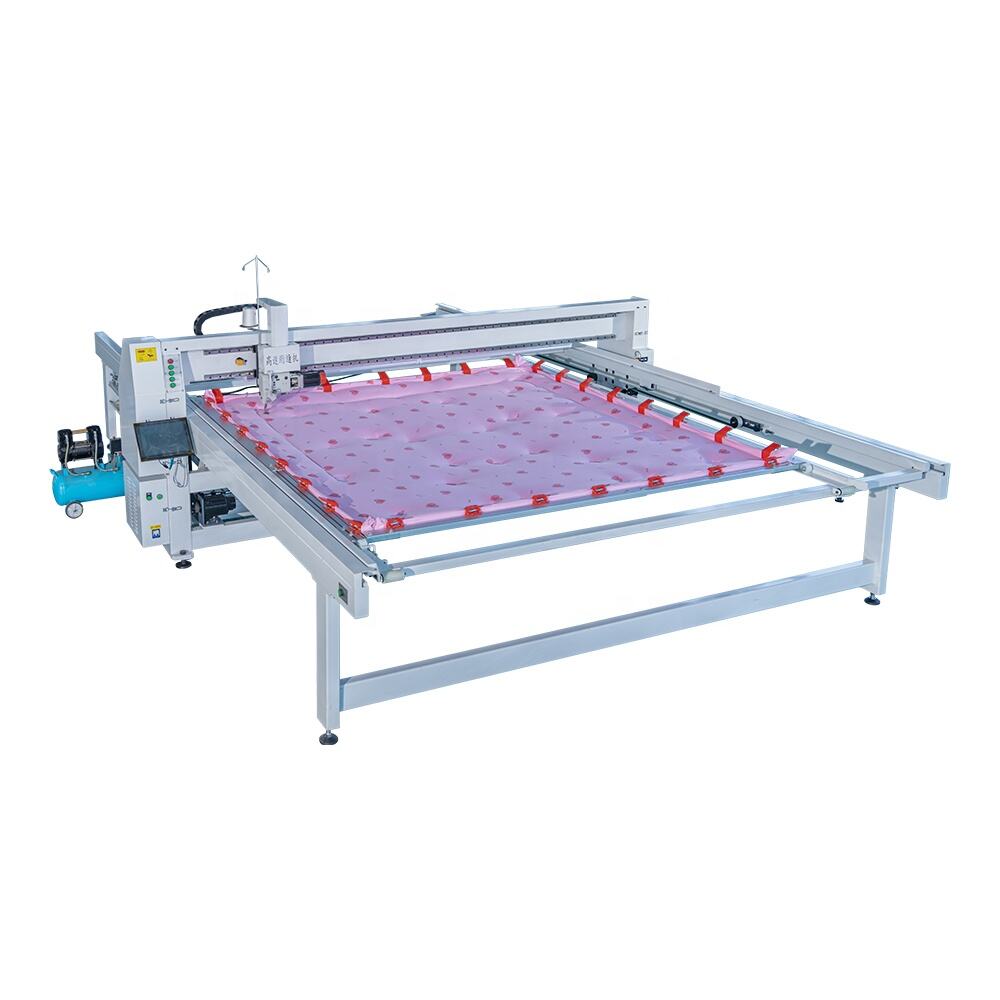

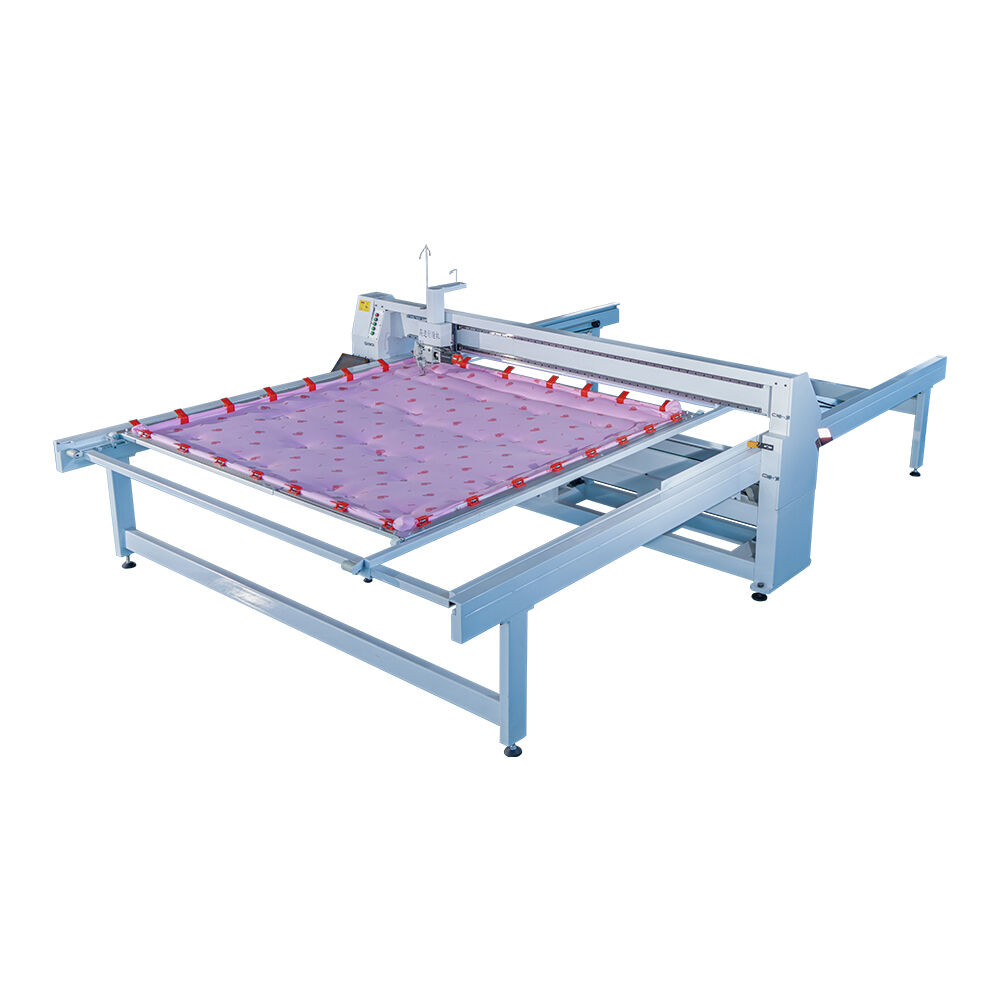

High Speed Frame Move Single Needle Comforter Quilting Machine
High Speed Frame Move Single Needle Quilting Machine delivers 40% faster throughput vs. standard models, 99.2% stitch accuracy, CE/ISO 9001 compliant.
Description
1.Mainly used to sewing quilts, comforter,blanket,mattresses, bedspreads and other home textile products.

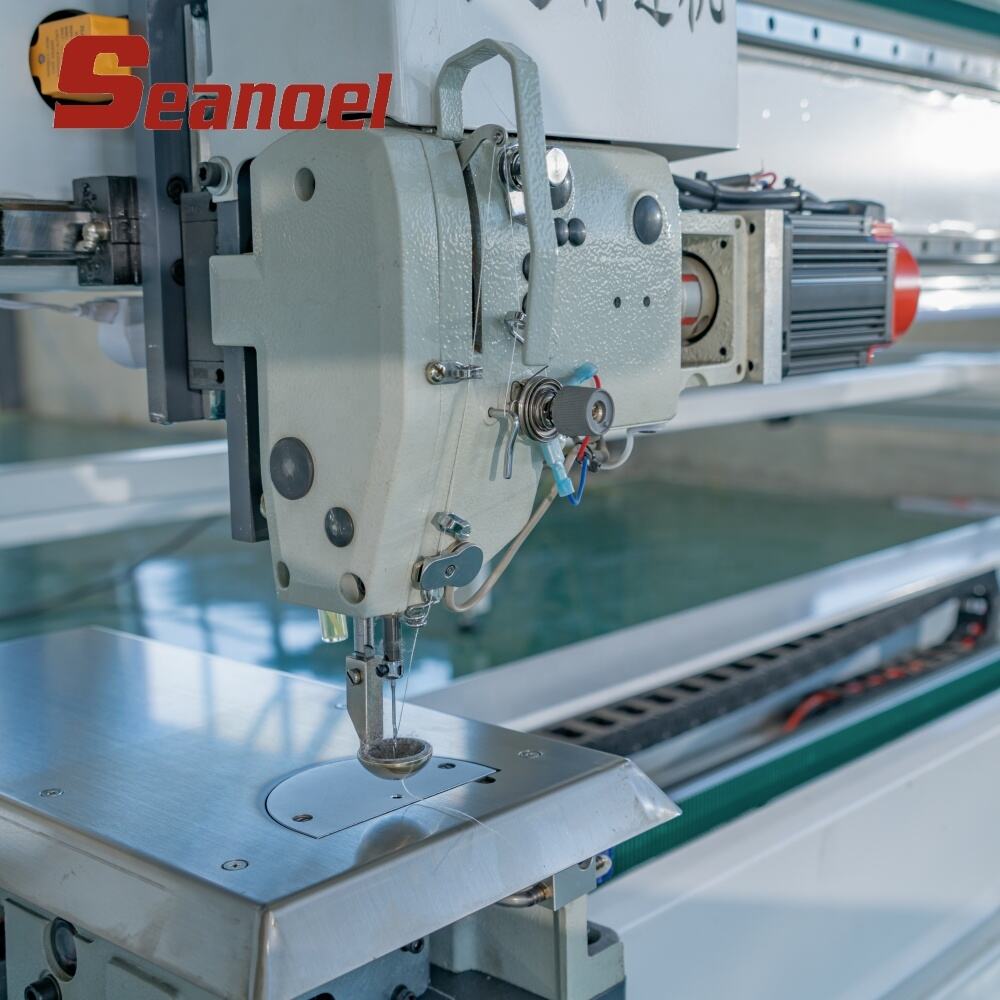

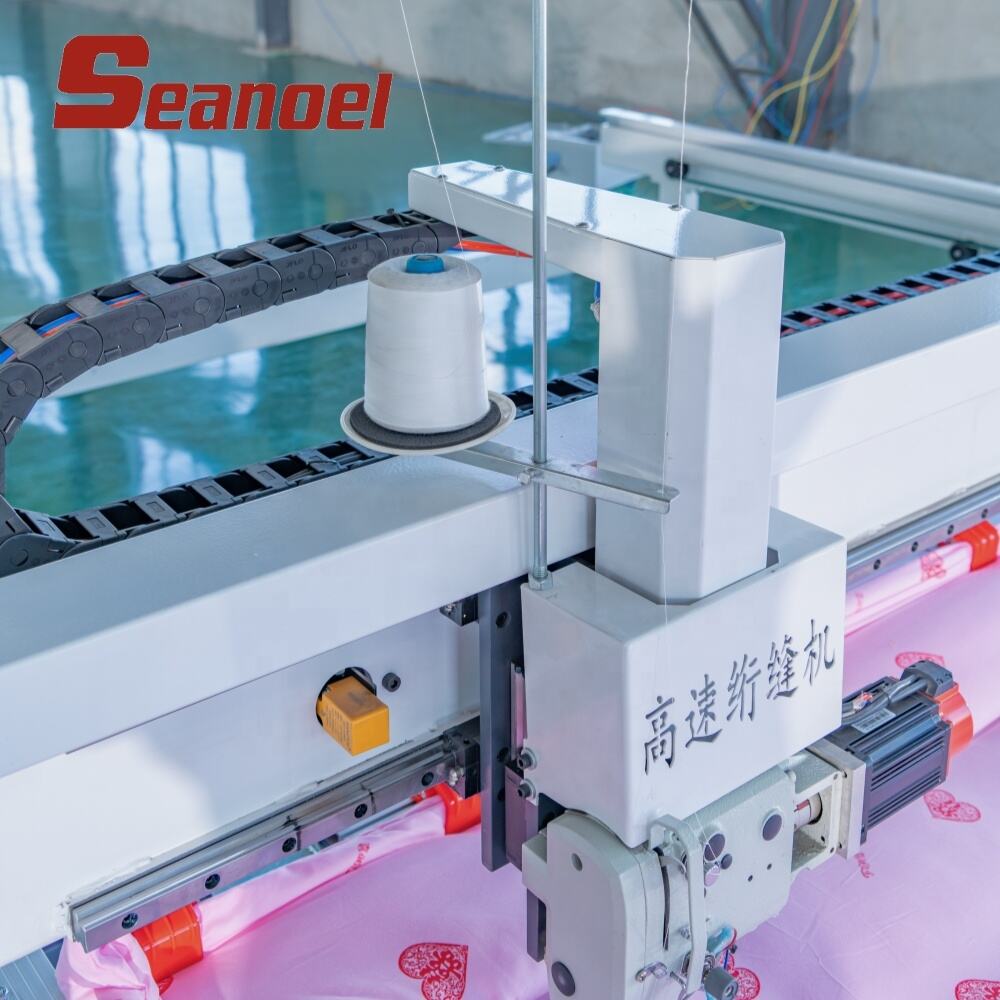

2.Specialized quilting structure,adopt 1:1 copy Germany droop sewing head and linear guide rail,head move speed can reach 12M/MIN,the quilting is more stable and accurate,the max quilting speed can reach 3500RPM.

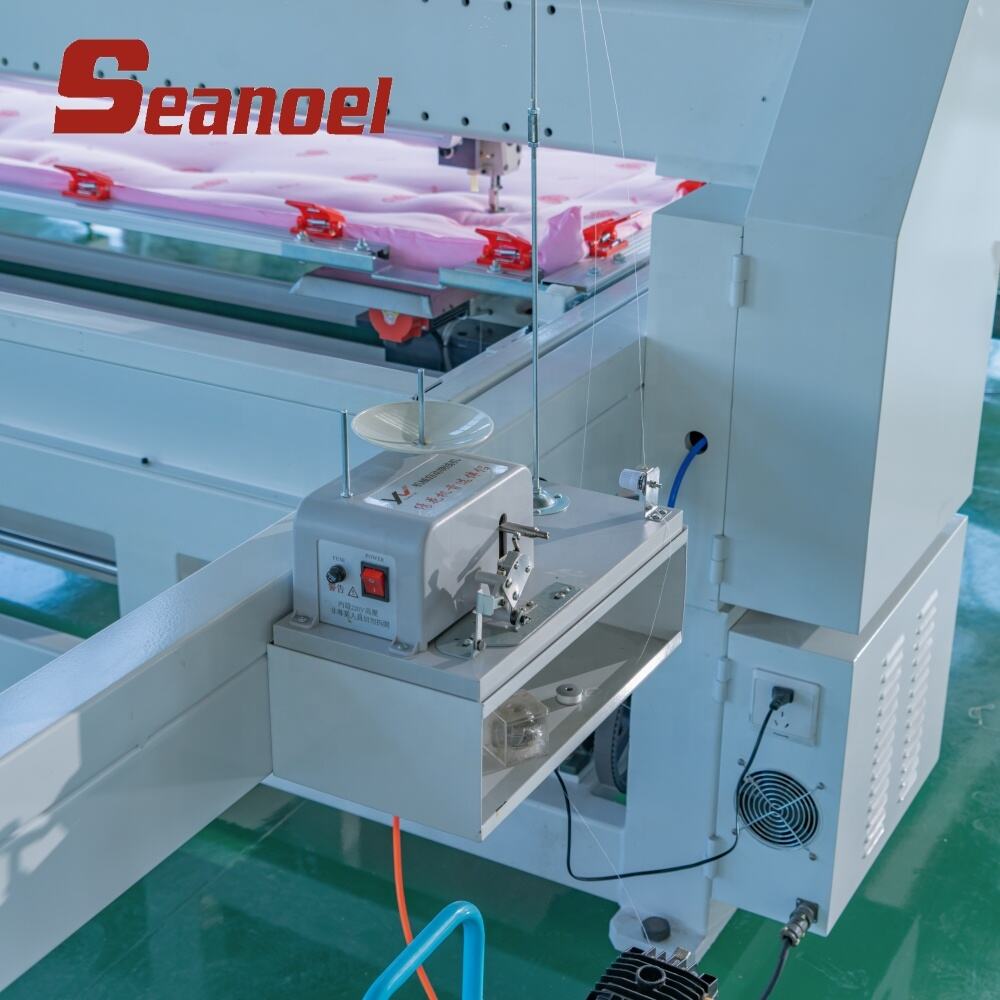

3.Automatic thread trimming,automatic lubrication,can sewing independent and small pattern.
4.When thread is broken machine will stop automatically and return to the threading point,after re-thread,back to broken point automatically,meanwhile back several stitches along the original path to continue quilting.
5.Win 7 system touch screen control,multilingual selection,the user can choose pattern, change pattern size,quilting size, step length and quilting speed according to the screen prompts.
6.With 380 types pattern on computer,can also upload new patterns through USB flash drive.Automatic optimize after uploading.
7.When working finished,sewing head moving to start point automatically,when suspend or stop machine,head automatic back to high position,avoid to damage fabric.

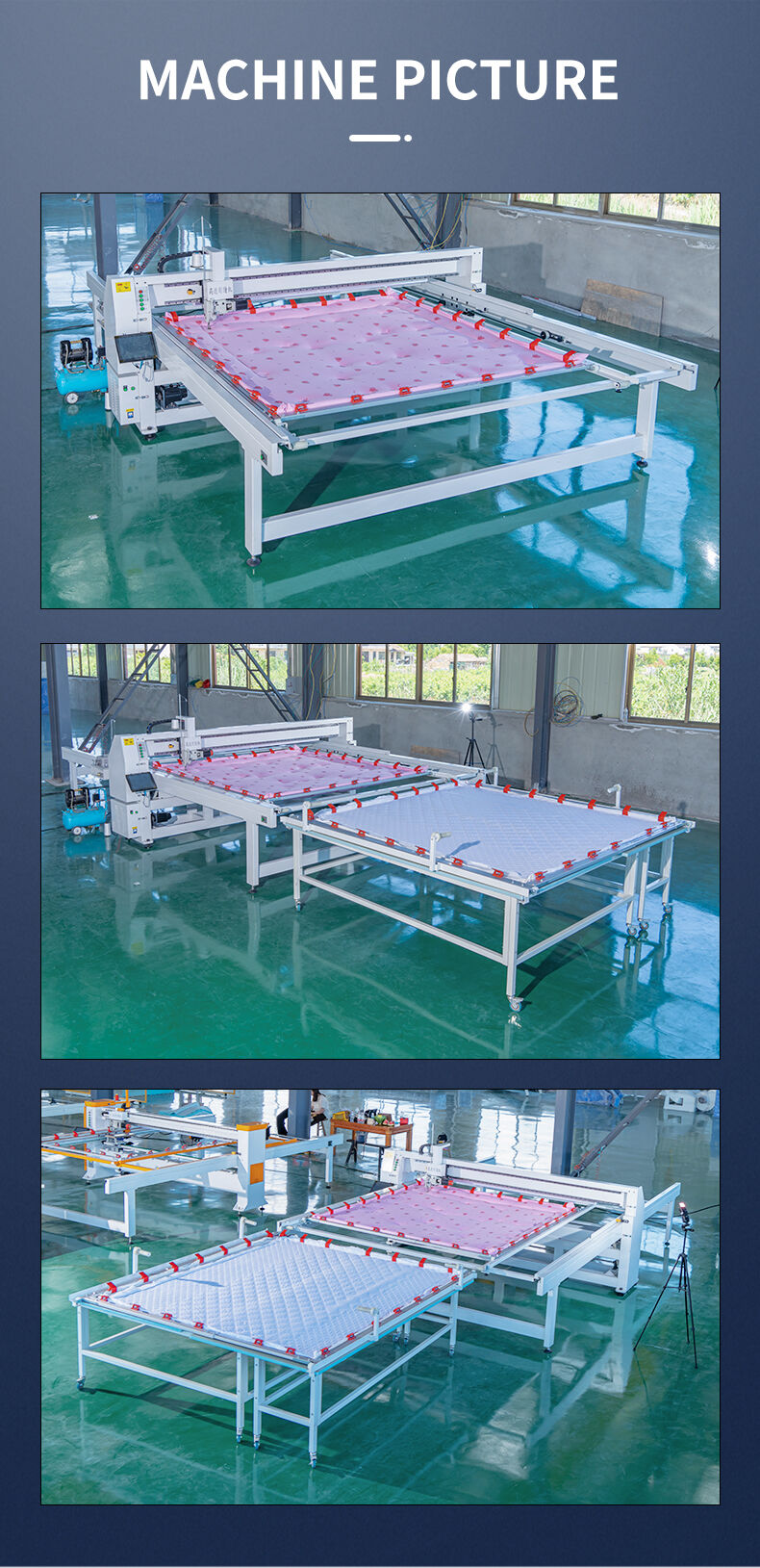

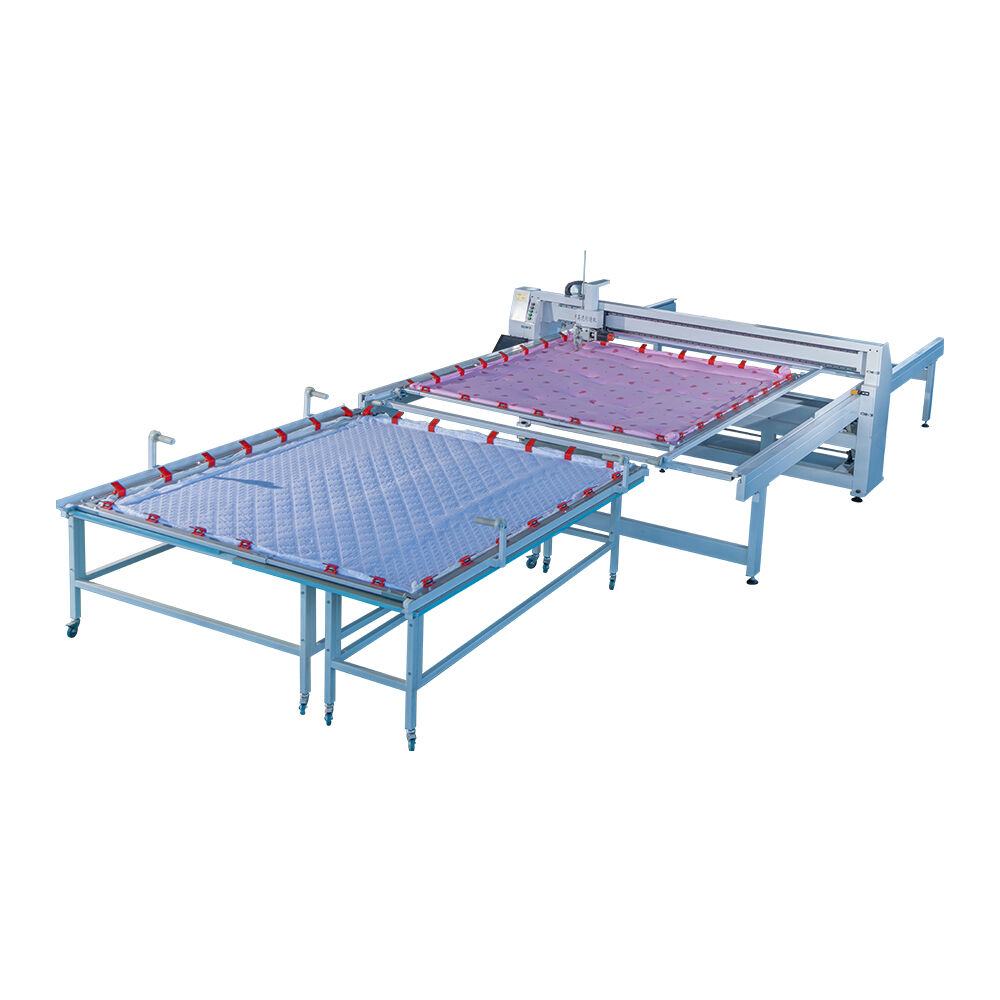

8.Matched with ”high and low rack” workbench, it is convenient to replace the quilt quickly.
9.Adopt aluminum alloy quilt frame replace traditional galvanized quilt frame, which is convenient to replace products of different sizes and is more durable.
10.Support wifi to achieve remote control system upgrade and help maintenance.

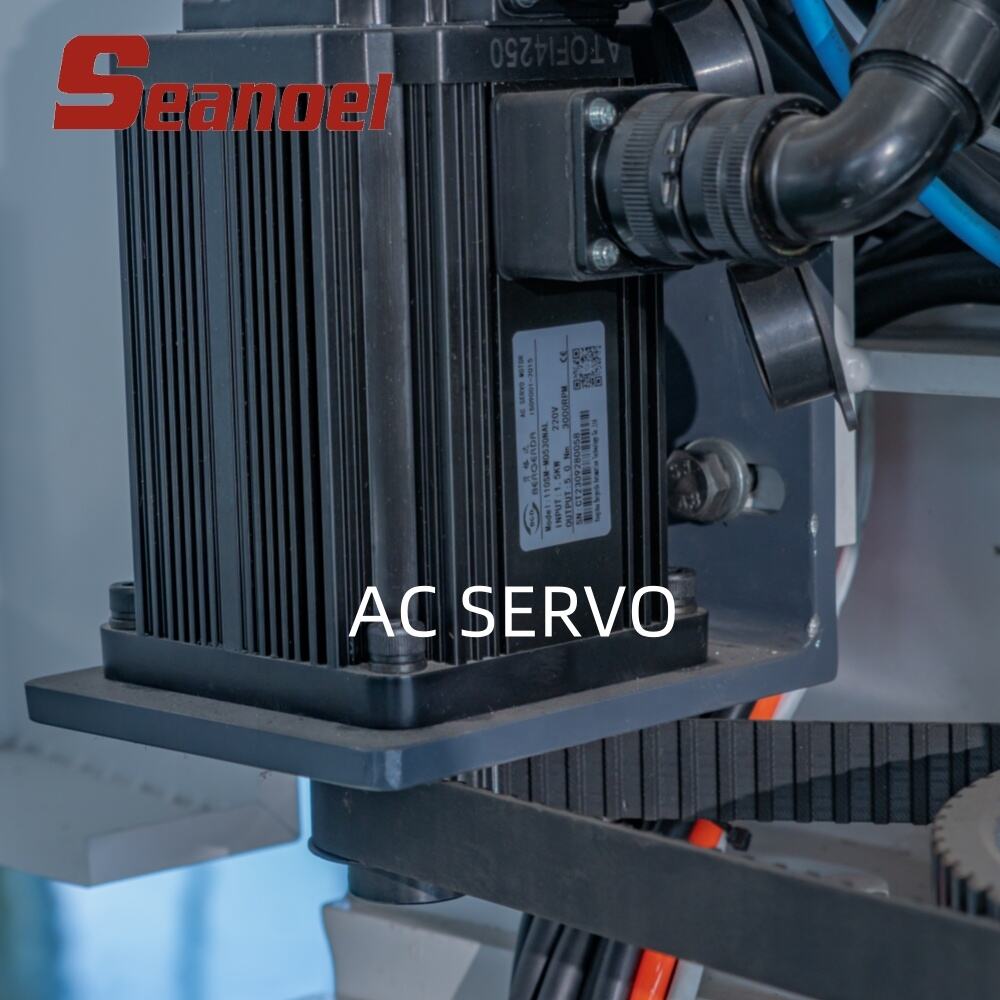

11.Servo independent alarm function,directly report the fault number, which is helpful to quickly find and solve the problem,when the machine head deviates from the frame or encountered strong current,machine automatically alarm and stop working
Machine Specification
|
SERVO MOTOR,LIFTING SEWING HEAD,AUTOMATIC THREAD TRIMMING |
||||
|
Model |
SN-HSL 2426 |
SN-HSL 2628 |
SN-HSL 2830 |
SN-HSL 3032 |
|
Quilt Size |
2.4* 2.6M |
2.6* 2.8M |
2.8* 3.0M |
3.0* 3.2M |
|
Quilting Size |
2.3* 2.5M |
2.5* 2.6M |
2.7* 2.9M |
2.9* 3.1M |
|
Dimension |
520036001400MM -- 580042001400MM |
|||
|
Sewing Speed |
3500RPM |
|||
|
Sewing Thickness |
2200GSM |
|||
|
Power |
220V 50HZ 1.5KW |
|||
|
Stitch |
2-7MM |
|||
|
Style |
Big shuttle, Double-line lock style |
|||
|
Gross weight |
1300 KG |
1400 KG |
1500 KG |
1600 KG |
Warranty
1.We provide one year quality guarantee for our machine and electrical component from the date customer received the machine.
2.We provide installation video and user manual for all of our machine.
3.We can take video to help you completely solving any problems you encounter during installation and daily use,because we have all machine ready in our exhibition room.
4.Except one year warranty, we provide lifelong free guidance for our product.
FAQ
Q1: We are manufacturer or trade company?
A:Our factory build on 2003 year, We are a home textile equipment source manufacturer. We helped many client build their factory and serviced more than 100+ Countries & Regions.
Q2: Service?
A:Our engineer are online 10 hours every day to provide you with the highest quality service,completely solving any problems you encounter during installation and daily use.
Q3: Why choose us?
A:We are a home textile equipment source manufacturer,covering almost all pillow, quilt,mattress,polyester wadding and foam related machinery,You can get the most suitable suggestion about the machine configuration according to your raw material and final products.Then make a one-stop procurement and service here.
Q4:What is Seanoel?
A:Seanoel is a our brand name,noel is the pronunciation of promise in Chinese.
Our promise is vast and profound like the sea,choose Seanoel means you will get promise and guarantee from it.
