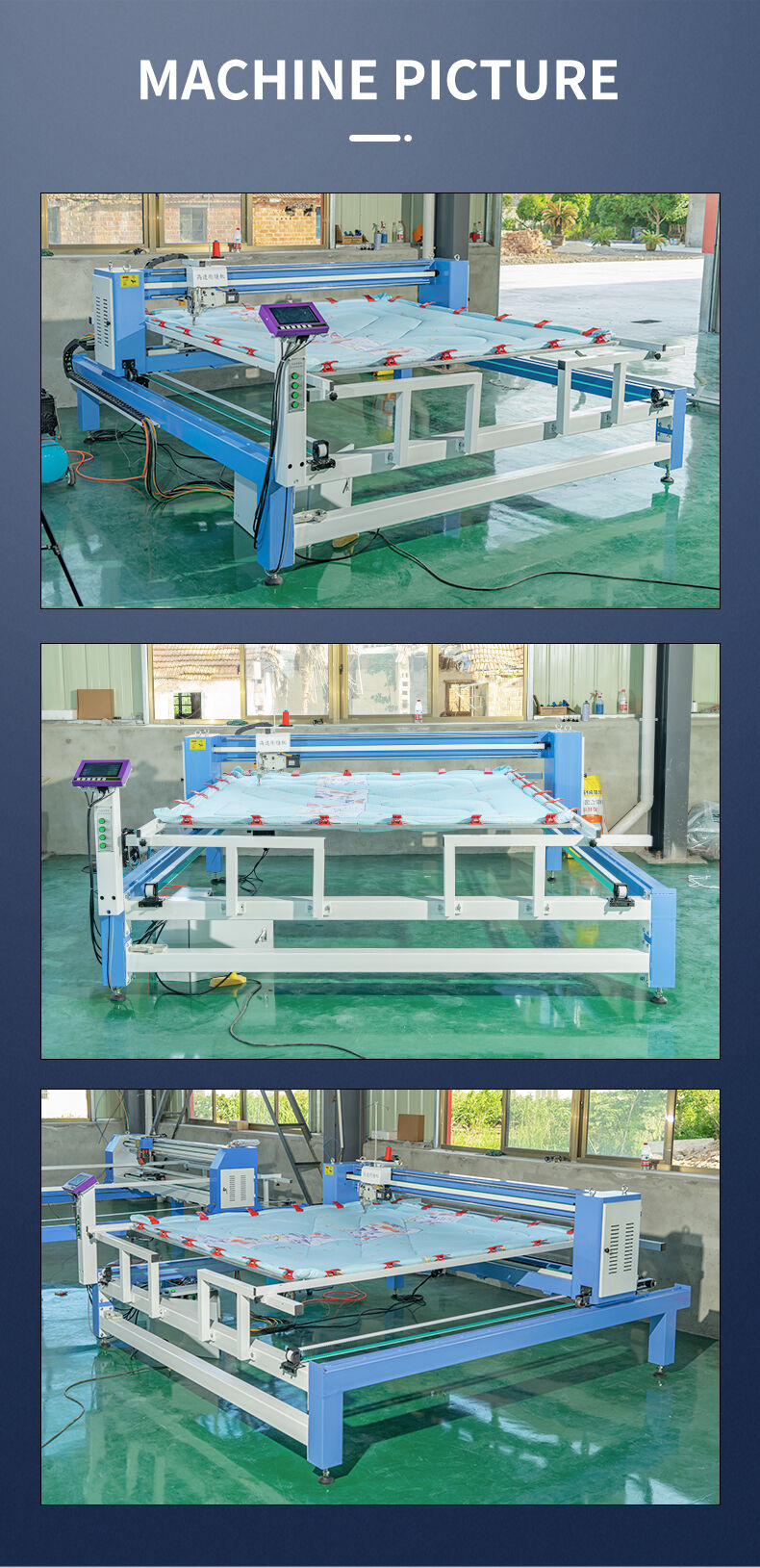

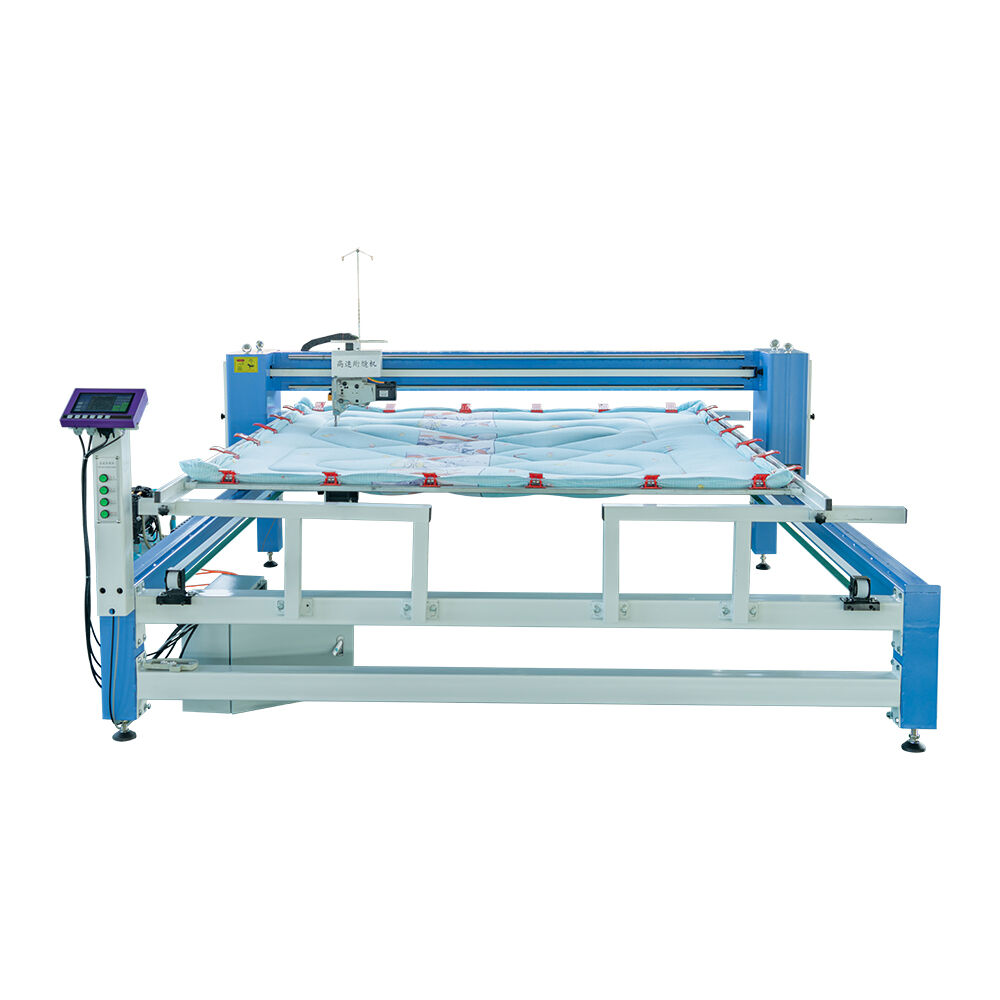

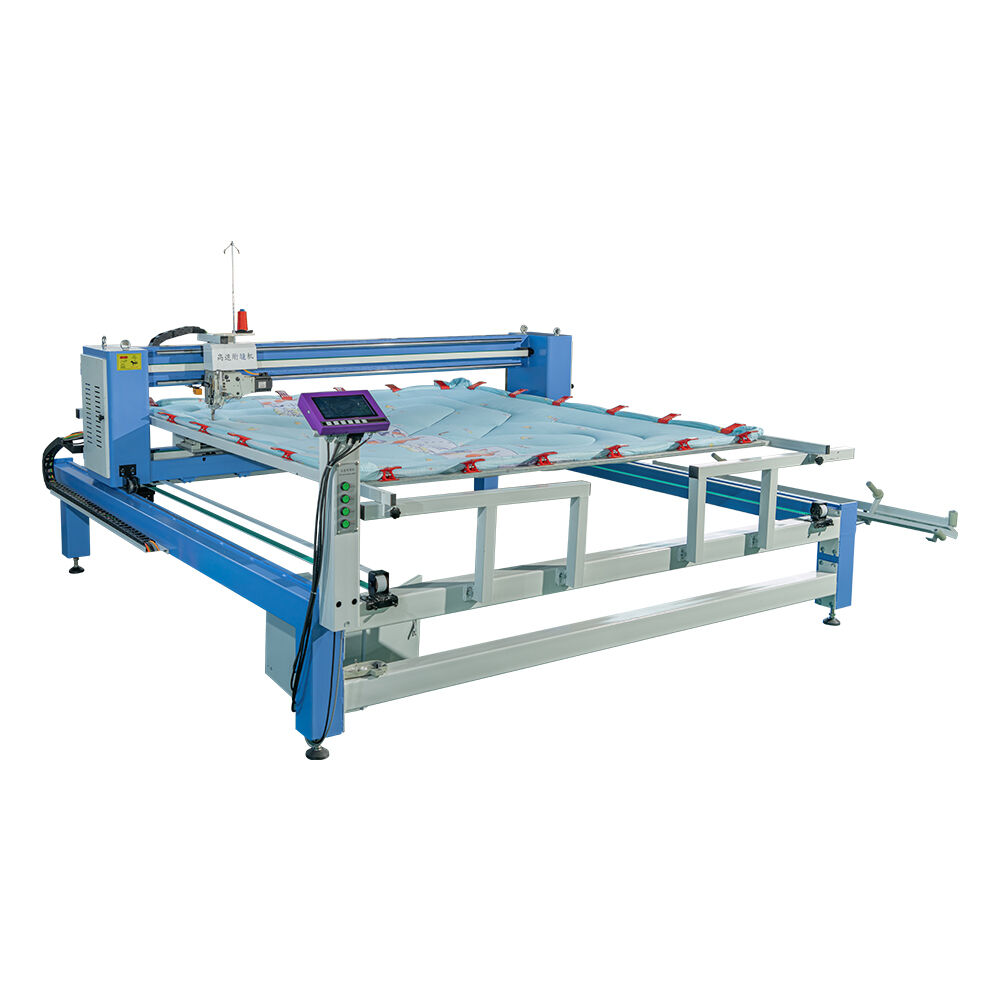

Head Move Small Size Computer Single Needle Quilting Machine
Head Move Small Size Quilting Machine boosts home textile productivity by 35%, cuts setup time 50%, and ensures stitch precision.
Description
1.Mainly used to sewing quilts, comforter,blanket,mattresses, bedspreads and other home textile products.
2.The sewing material does not move when sewing,head and beam move,cover a more small floor size than other quilting machine,1:1 copy Germany durkoop sewing head, max quilting speed can reach 2500RPM.
3.All patterns are stored on the U disk,DST format patterns can be loaded, more convenient and flexible.
4.Multilingual selection,the user can choose pattern,change pattern size,quilting size, step length and quilting speed according to the screen prompts.
5.When thread is broken machine will stop automatically and return to the threading point,After re-thread,it can back to broken point automatic,meanwhile back several stitches along the original path to continue quilting.
6.Automatic thread trimming and automatic lubrication,more patterns can be selected, and can sewing independent and small pattern.
7.When quilting finished,machine head back to start point automatically,machine head and big beam can fast forward and rewind along the pattern path.
8.Can quilting complex patterns,the stitches are not offset on one line when repeated quilting, and stitch distance is stable.
9.Matched with ”high and low rack” workbench, it is convenient to replace the quilt quickly.
Machine Specification
|
SERVO MOTOR,DIRECT DRIVE SEWING HEAD,AUTOMATIC THREAD TRIMMING |
||||
|
Model |
SN-HMD 2224 |
SN-HMD 2426 |
SN-HMD 2628 |
SN-HMD 2830 |
|
Quilt Size |
2.2* 2.4M |
2.4* 2.6M |
2.6* 2.8M |
2.8* 3.0M |
|
Quilting Size |
2.1* 2.3M |
2.3* 2.5M |
2.5* 2.6M |
2.7* 2.9M |
|
Dimension |
3000*3000*1400MM -- 3600*3800*1400MM |
|||
|
Sewing Speed |
2500RPM |
|||
|
Sewing Thickness |
1200GSM |
|||
|
Power |
220V 50HZ 1.5KW |
|||
|
Stitch |
2-7MM |
|||
|
Style |
Big shuttle ,Double-line lock style |
|||
|
Gross Weight |
500 KG |
550 KG |
600 KG |
650 KG |
Warranty
1.We provide one year quality guarantee for our machine and electrical component from the date customer received the machine.
2.We provide installation video and user manual for all of our machine.
3.We can take video to help you completely solving any problems you encounter during installation and daily use,because we have all machine ready in our exhibition room.
4.Except one year warranty, we provide lifelong free guidance for our product.
