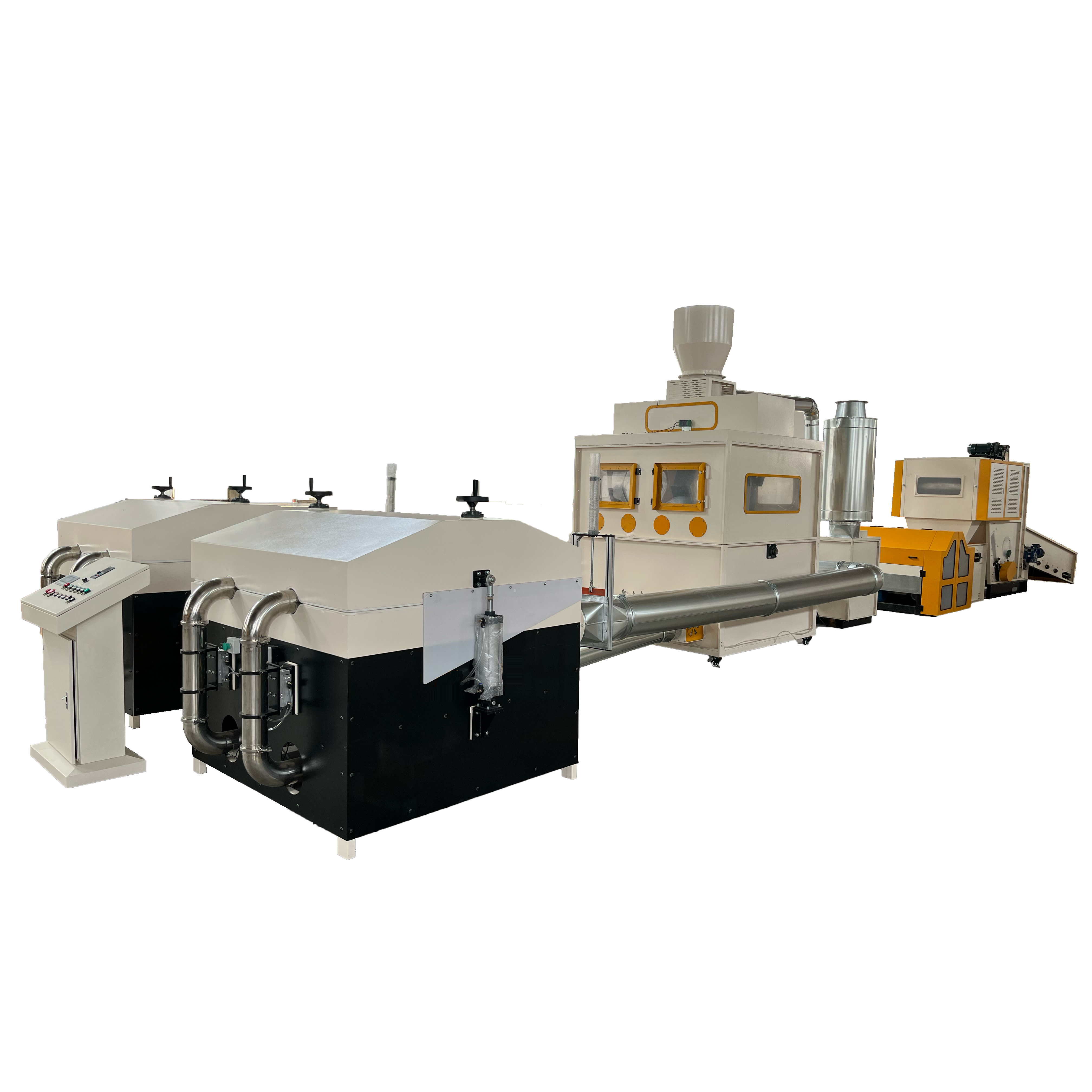

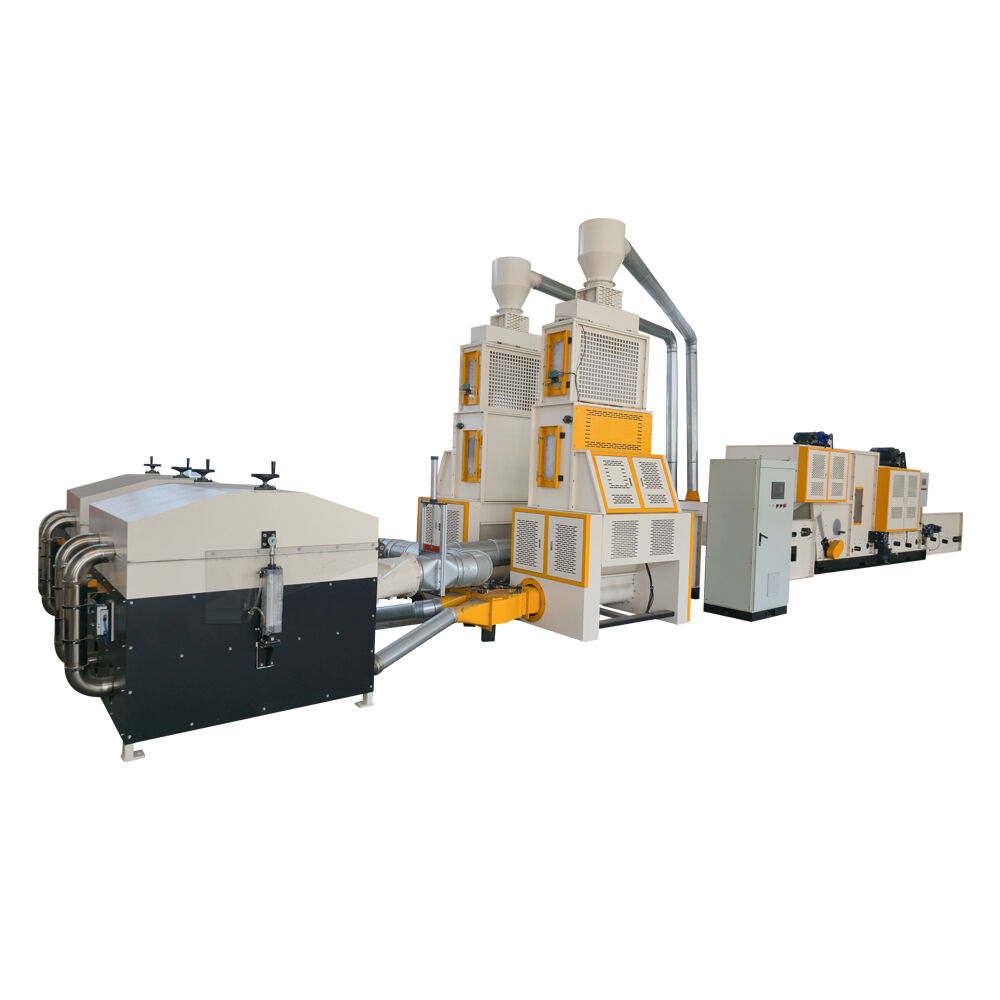

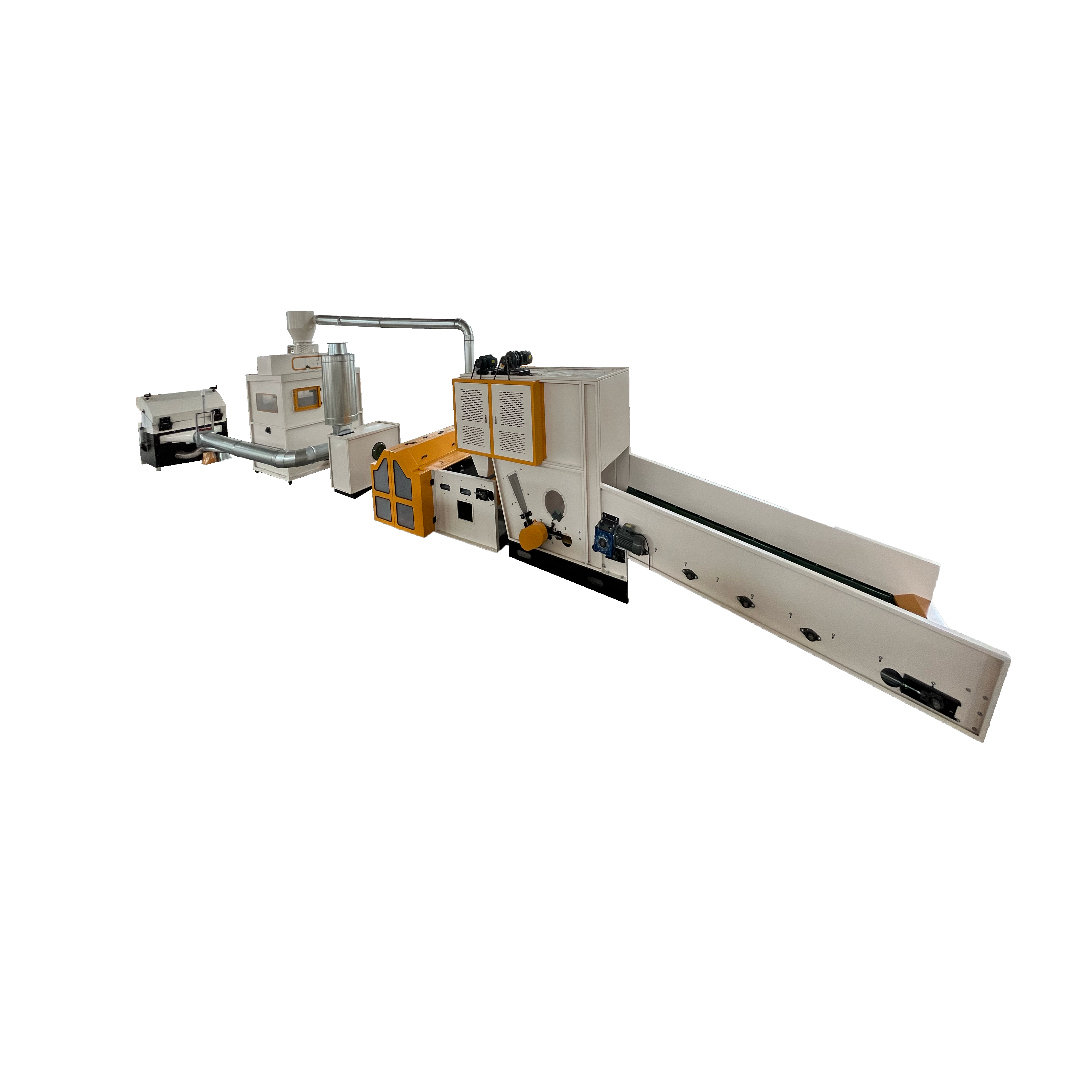

Fully Automatic Polyester Fiber Pillow Filling Production Line
Fully Automatic Polyester Pillow Filling Line delivers 700kg/h capacity, ±15g weight accuracy, and 100% microfiber opening.
Description
1.Mainly use for produce pillow,cushion,lazy sofa,etc.
2.Raw material can use all type polyester staple fiber like 0.6-15D*32-64MM,Can also mix with foam particle etc.
3.The pillow production capacity from 50-700KG/H is available for selection.
4.Opening machine roll adopt listed company Geron card clothing,for micro fiber opening rate can reach 100%.
5.We can provide customized service according to your demands,such as machine size,labor required,capacity,automatic feeding,automatic filling,time quantification, weighing quantification and so on.

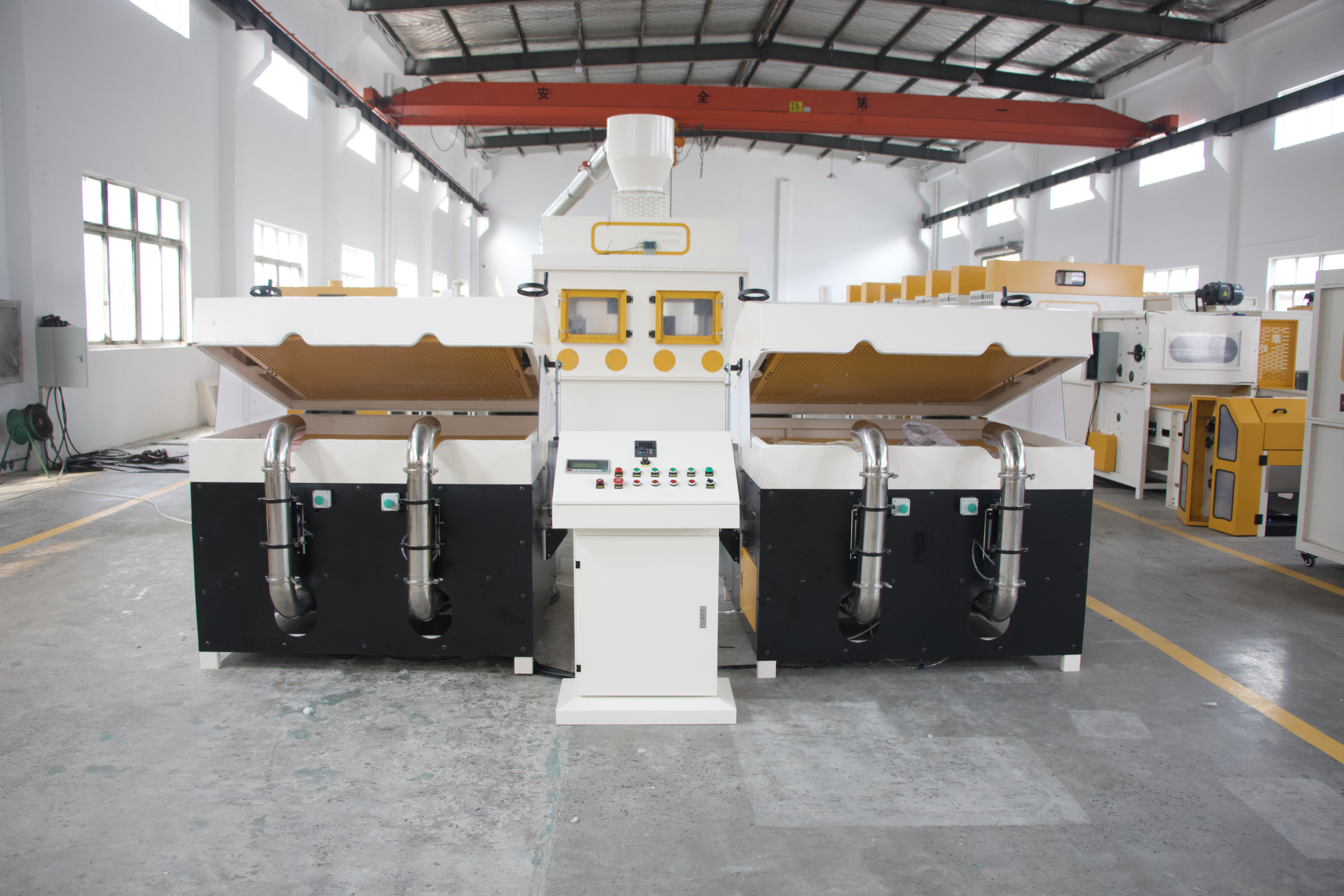

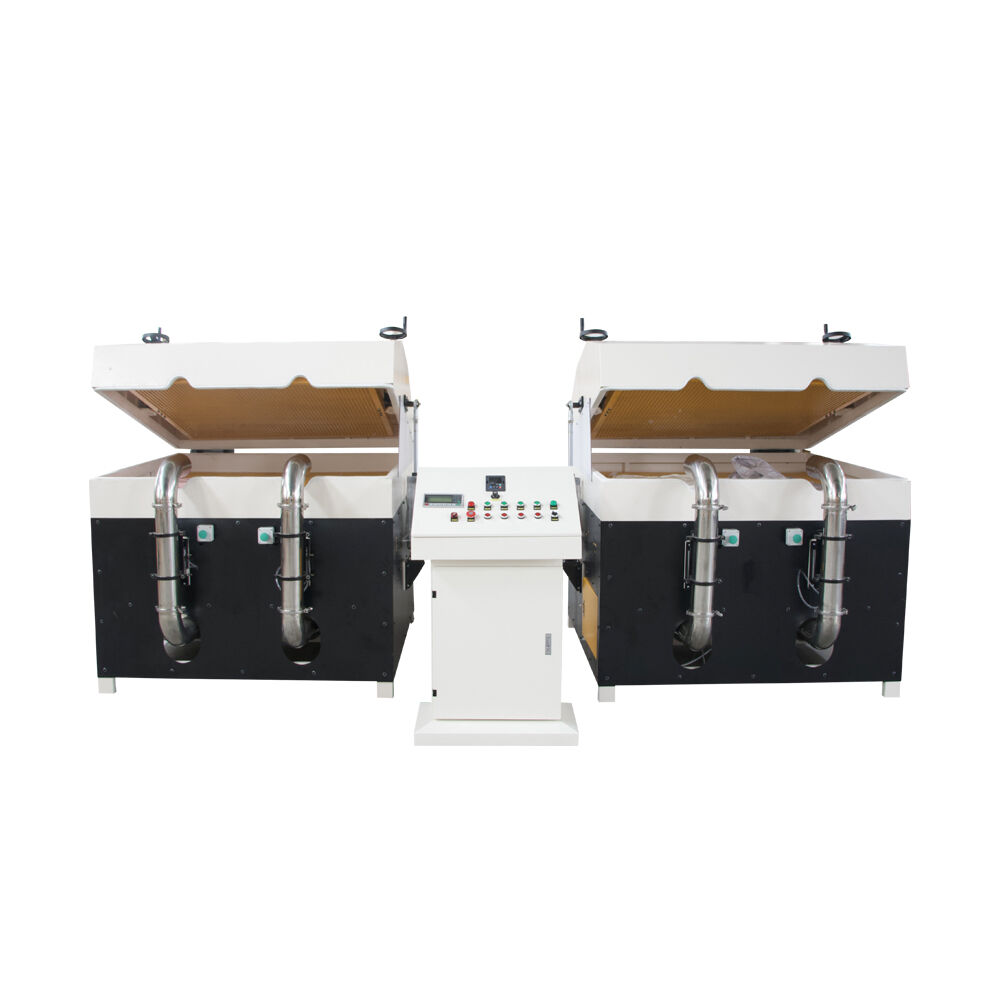

6.For this page you found,here is fully automatic pillow filling machine:
Automatic Feeding
Automatic Filling
Adopt Time Control Weight,Quantitative Filling
The Most Advanced Negative Pressure Filling Technology
All Pillow Weight Similar,Pillow Weight Error Less Than 15 grams
Whole Production Line Only Needle One Worker
All Pillows Have a Uniform And Full Shape
Machine Specification
|
Model |
SN-PF750 |
SN-PF850 |
|
Capacity |
350-500KG/H |
500-700KG/H |
|
Raw Material |
1.33D-15D |
0.6-15D |
|
Weight Error |
15-20g |
10-15g |
|
Labor Required |
1 |
1 |
|
Power |
30kKW |
53KW |
|
Filling Type |
Negative Pressure |
Negative Pressure |
|
Quantitative Type |
Time |
Time |
|
Filling Mode |
Stir Filling |
Hopper Direct Filling |
|
Pillow Weight Range |
≤2500g |
|
|
Speed |
8-12PCS/MIN |
|
Warranty
1.We provide one year quality guarantee for our machine and electrical component from the date customer received the machine.
2.We provide installation video and user manual for all of our machine.

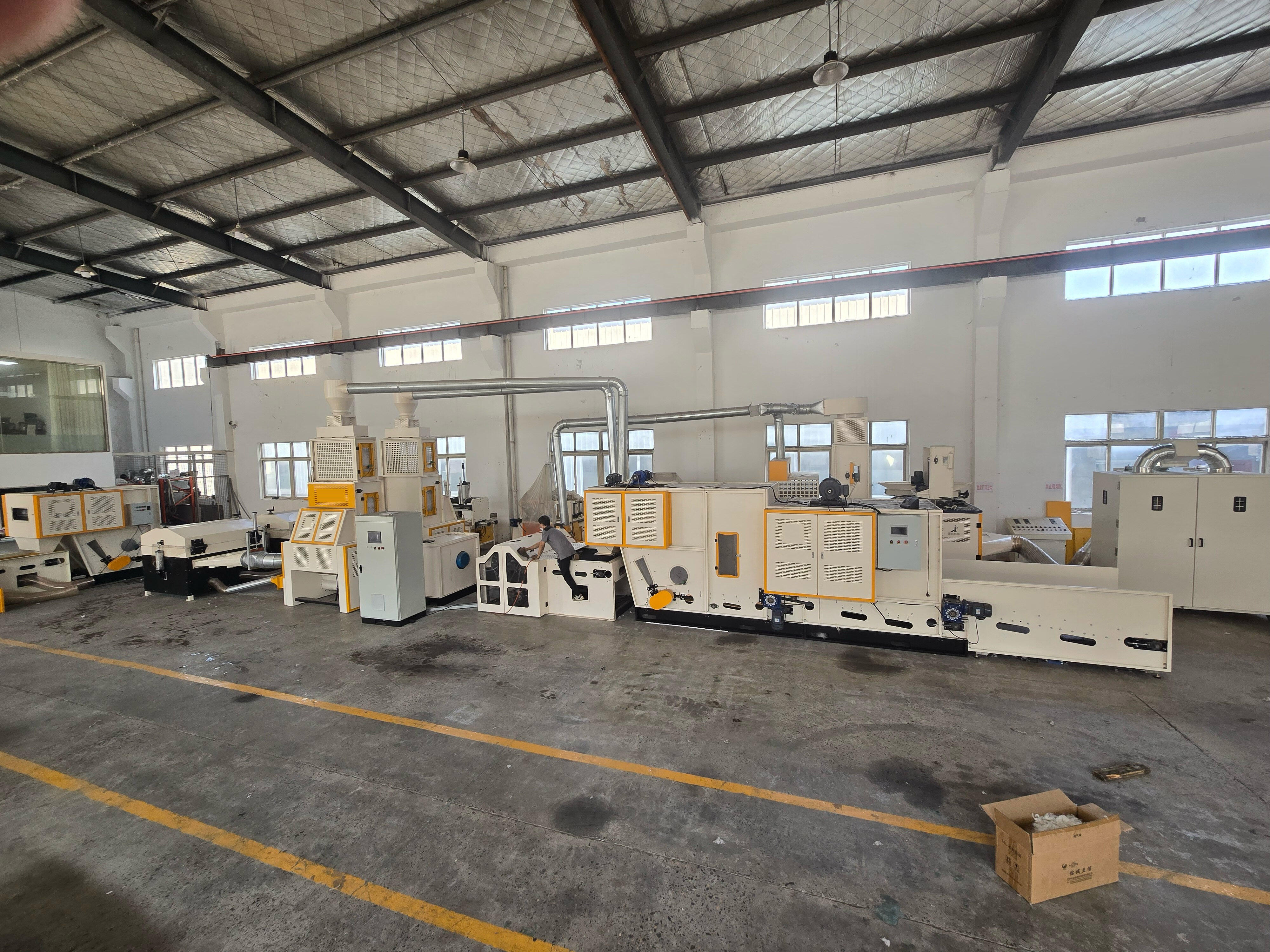

3.We can take video to help you completely solving any problems you encounter during installation and daily use,because we have all machine ready in our exhibition room.
4.Except one year warranty, we provide lifelong free guidance for our product.
FAQ
Q1: We are manufacturer or trade company?
A:Our factory build on 2003 year, We are a home textile equipment source manufacturer. We helped many client build their factory and serviced more than 100+ Countries & Regions.
Q2: Service?
A:Our engineer are online 10 hours every day to provide you with the highest quality service,completely solving any problems you encounter during installation and daily use.
Q3: Why choose us?
A:We are a home textile equipment source manufacturer,covering almost all pillow, quilt,mattress,polyester wadding and foam related machinery,You can get the most suitable suggestion about the machine configuration according to your raw material and final products.Then make a one-stop procurement and service here.
Q4:What is Seanoel?
A:Seanoel is a our brand name,noel is the pronunciation of promise in Chinese.
Our promise is vast and profound like the sea,choose Seanoel means you will get promise and guarantee from it.
