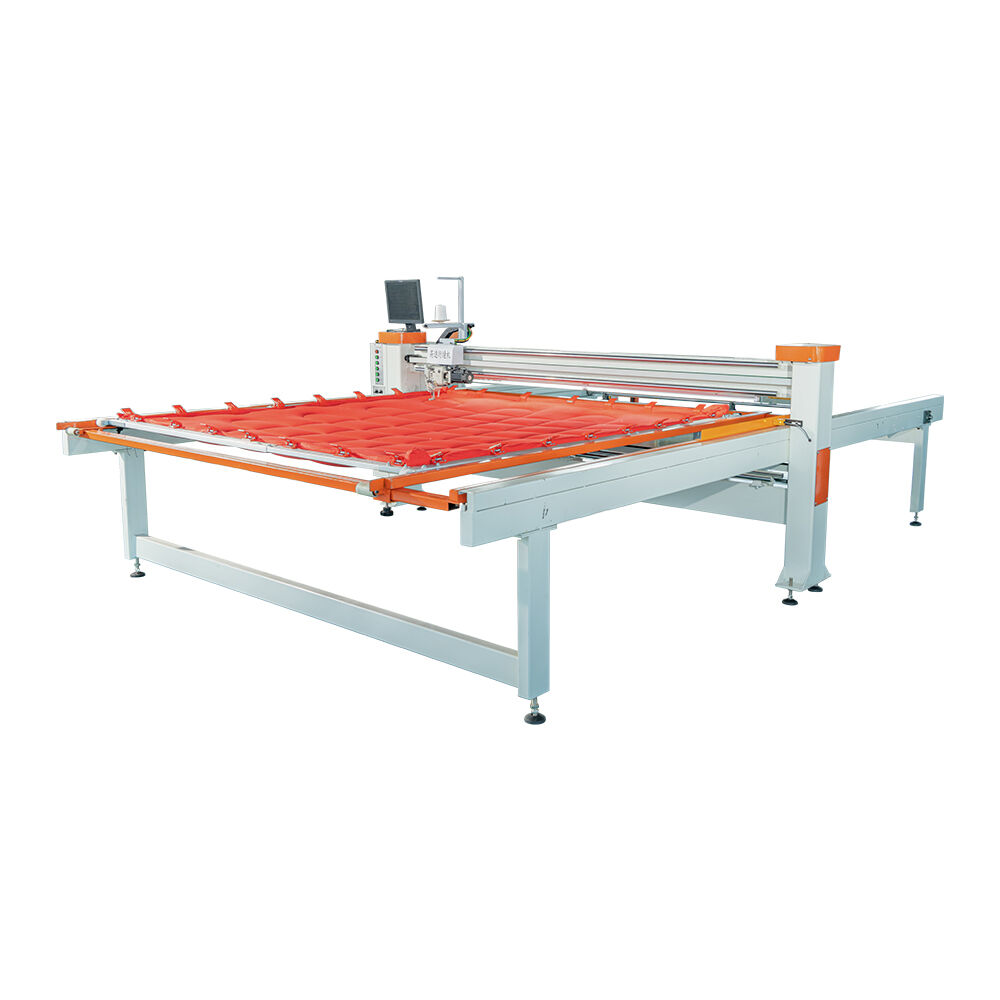

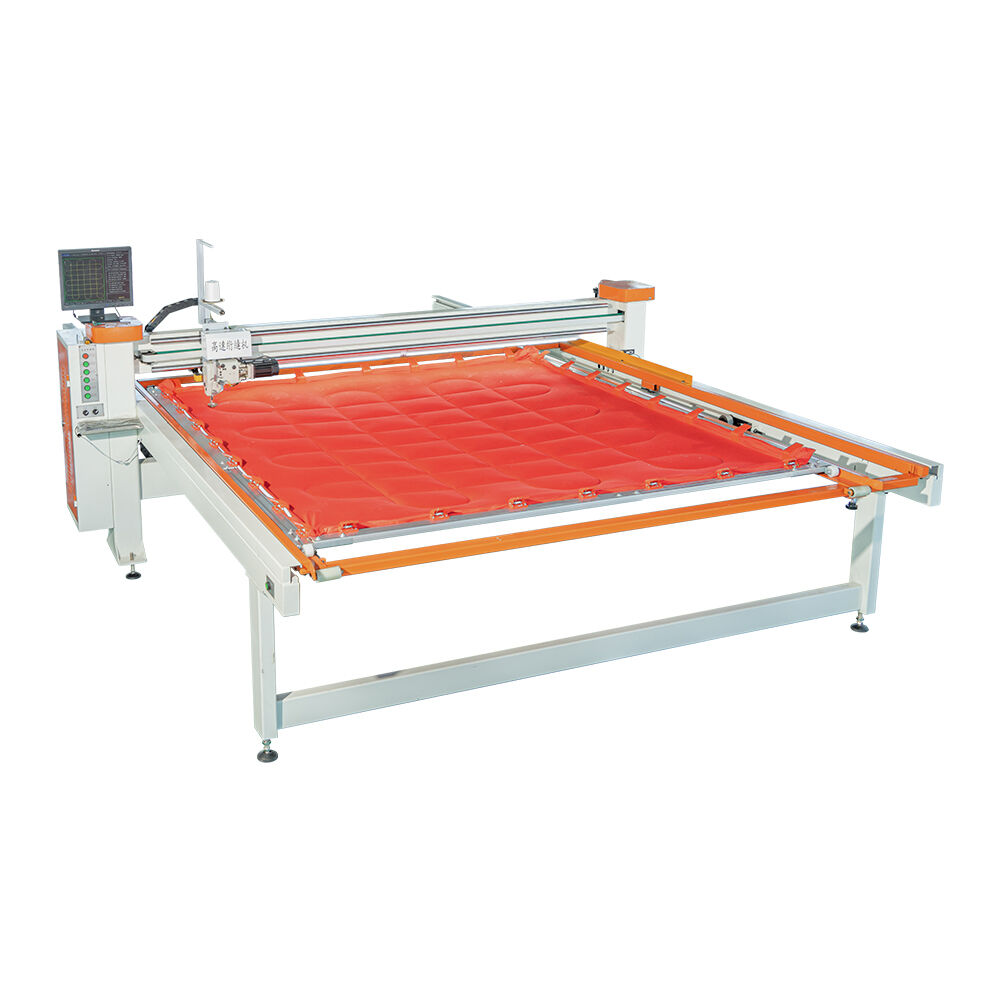

Frame Move Servo Computer Single Needle Quilting Machine
Frame Move Servo Quilting Machine delivers 35% faster throughput & 99.8% stitch accuracy for home textiles. CE/ISO 9001 certified.
Description
1.Mainly used to sewing quilts, comforter,blanket,mattresses, bedspreads and other home textile products.
2.The machine structure was optimized,Use precision accessories,large-stroke sewing head and more thick steel,sewing speed can reach 2800RPM.
3.All patterns are stored on the U disk,DST format patterns can be loaded, more convenient and flexible.
4.Multilingual selection,the user can choose pattern,change pattern size,quilting size, step length and quilting speed according to the screen prompts.
5.When thread is broken machine will stop automatically and return to the threading point,After re-thread,it can back to broken point automatic,meanwhile back several stitches along the original path to continue quilting.
6.Automatic thread trimming and automatic lubrication,more patterns can be selected, and can sewing independent and small pattern.
7.When quilting finished,machine head back to start point automatically,machine head and big beam can fast forward and rewind along the pattern path.
8.Can quilting complex patterns,the stitches are not offset on one line when repeated quilting, and stitch distance is stable.
9.Matched with ”high and low rack” workbench, it is convenient to replace the quilt quickly.
10.Adopt aluminum alloy quilt frame replace traditional galvanized quilt frame, which is convenient to replace products of different sizes and is more durable.
Machine Specification
|
SERVO MOTOR,DIRECT DRIVE SEWING HEAD,AUTOMATIC THREAD TRIMMING |
||||
|
Model |
SN-FMD 2426 |
SN-FMD 2628 |
SN-FMD 2830 |
SN-FMD 3032 |
|
Quilt Size |
2.4* 2.6M |
2.6* 2.8M |
2.8* 3.0M |
3.0* 3.2M |
|
Quilting Size |
2.3* 2.5M |
2.5* 2.6M |
2.7* 2.9M |
2.9* 3.1M |
|
Dimension |
5200*3600*1400MM -- 5800*4200*1400MM |
|||
|
Sewing Speed |
2800RPM |
|||
|
Sewing Thickness |
1300GSM |
|||
|
Power |
220V 50HZ 2.55KW |
|||
|
Stitch |
2-7MM |
|||
|
Style |
Big shuttle, Double-line lock style |
|||
|
Gross weight |
800 KG |
900 KG |
1000 KG |
1100 KG |
Warranty
1.We provide one year quality guarantee for our machine and electrical component from the date customer received the machine.
2.We provide installation video and user manual for all of our machine.
3.We can take video to help you completely solving any problems you encounter during installation and daily use,because we have all machine ready in our exhibition room.
4.Except one year warranty, we provide lifelong free guidance for our product.
FAQ
Q1: We are manufacturer or trade company?
A:Our factory build on 2003 year, We are a home textile equipment source manufacturer. We helped many client build their factory and serviced more than 100+ Countries & Regions.
Q2: Service?
A:Our engineer are online 10 hours every day to provide you with the highest quality service,completely solving any problems you encounter during installation and daily use.
Q3: Why choose us?
A:We are a home textile equipment source manufacturer,covering almost all pillow, quilt,mattress,polyester wadding and foam related machinery,You can get the most suitable suggestion about the machine configuration according to your raw material and final products.Then make a one-stop procurement and service here.
Q4:What is Seanoel?
A:Seanoel is a our brand name,noel is the pronunciation of promise in Chinese.
Our promise is vast and profound like the sea,choose Seanoel means you will get promise and guarantee from it.
