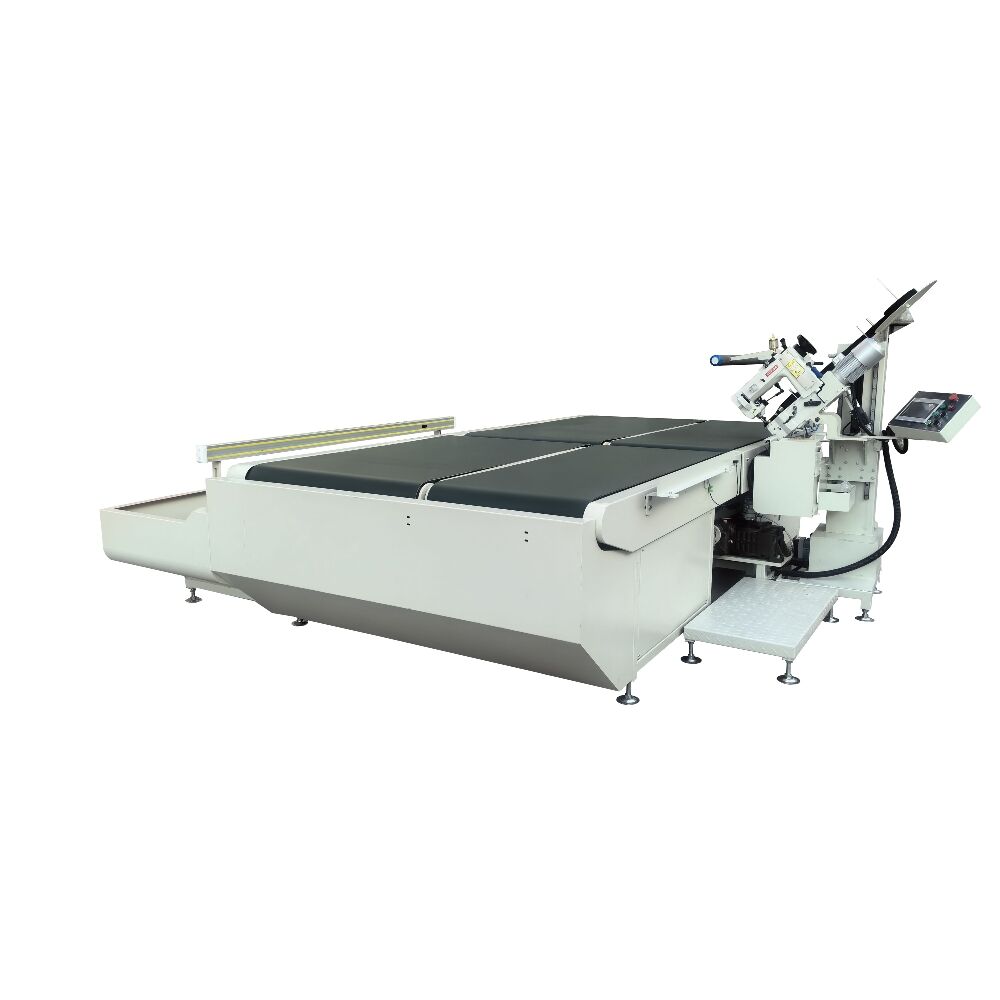

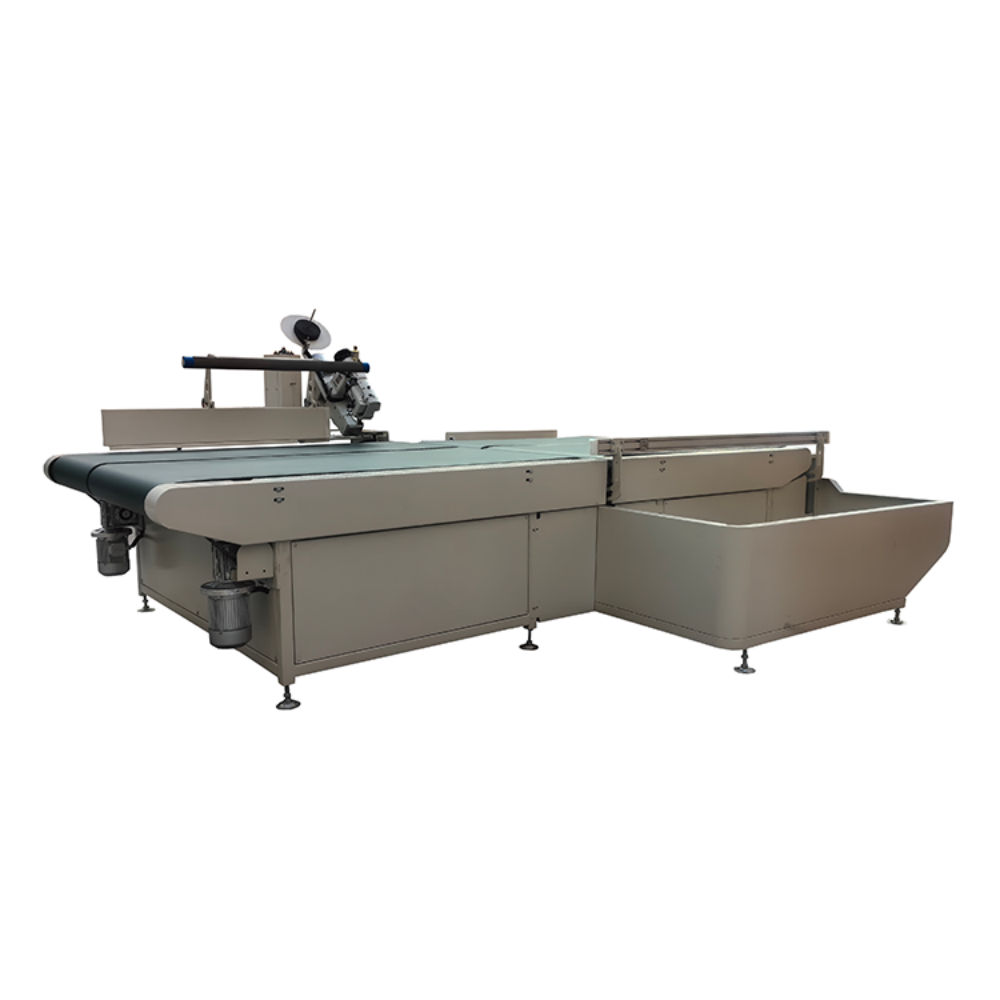

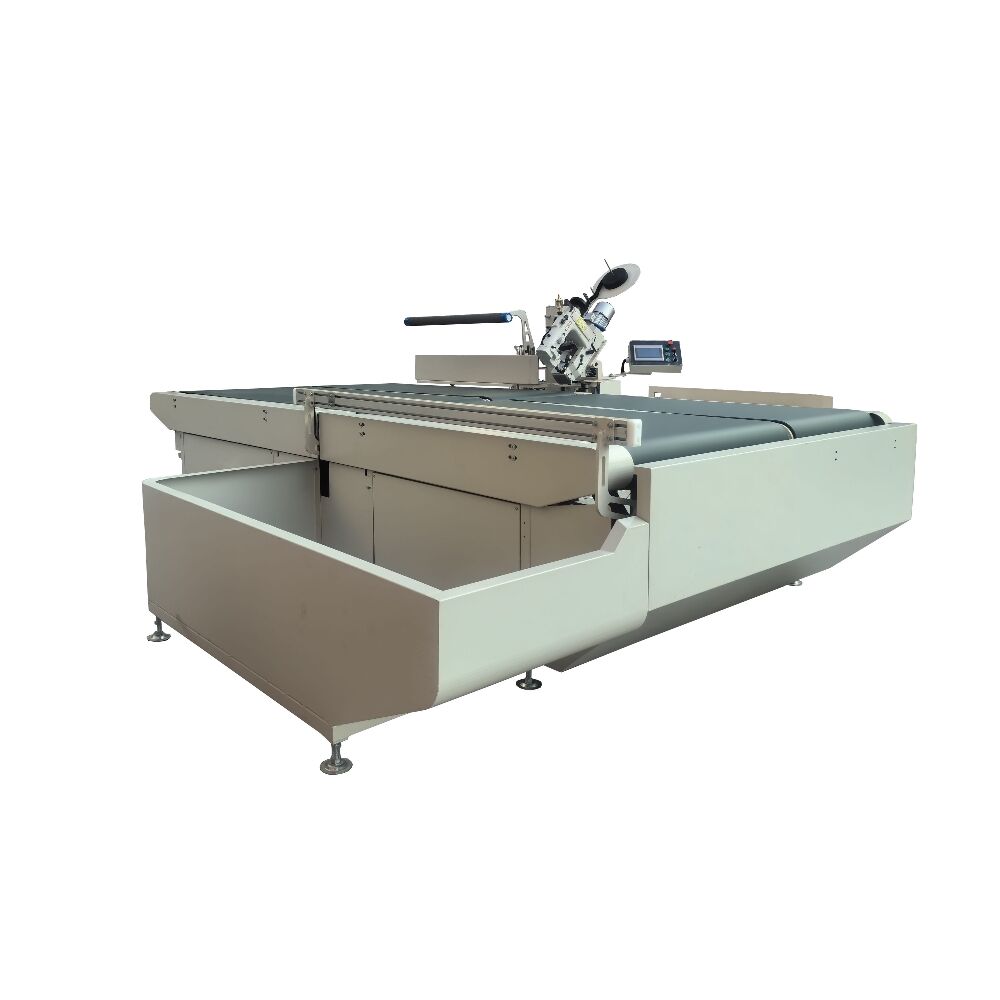

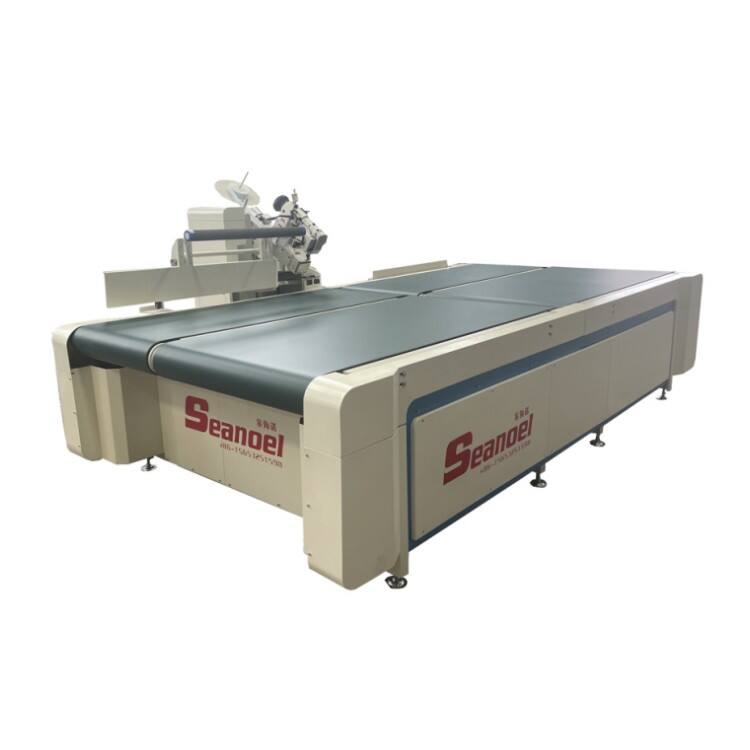

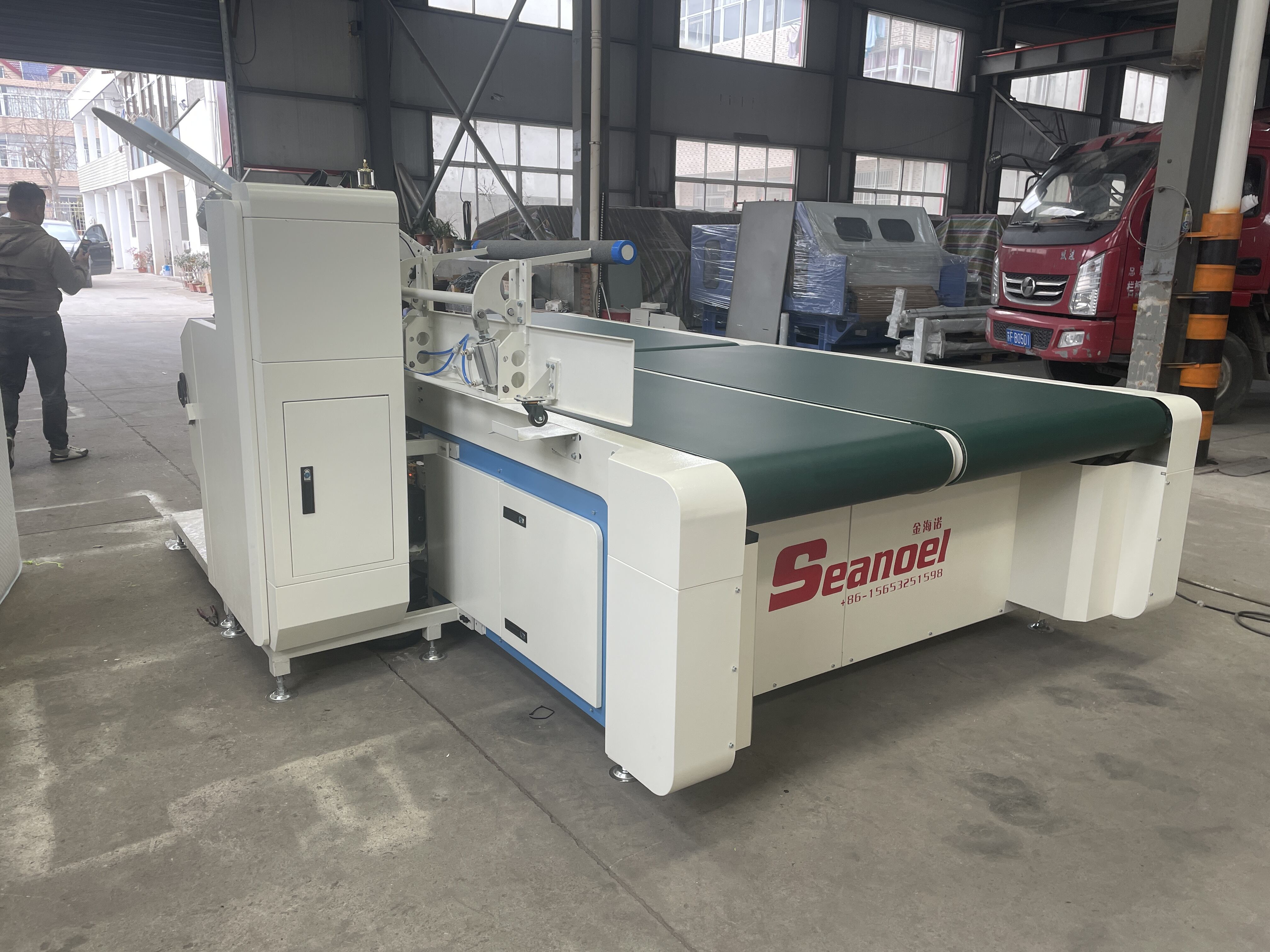

Automatic Mattress Surround Edge Tape Sewing Machine
Automatic Mattress Surround Edge Tape Sewing Machine boosts upholstery line efficiency by 35%, reduces labor by 2 operators/machine.
Description
1.Mattress surround edge tape sewing machine ,use for sewing mattress top,bottom and front,back,left,right side cover.
2.Can be used for sponge mattress,spring mattress and coconut palm mattress.
3.Full-automatic,head lifting automatically,mattress move automatically,mattress flip automatically,worker no need to move with sewing head.
4.By setting parameters through the touch screen, the machine head automatically tilts to adapt to the height of the mattress.

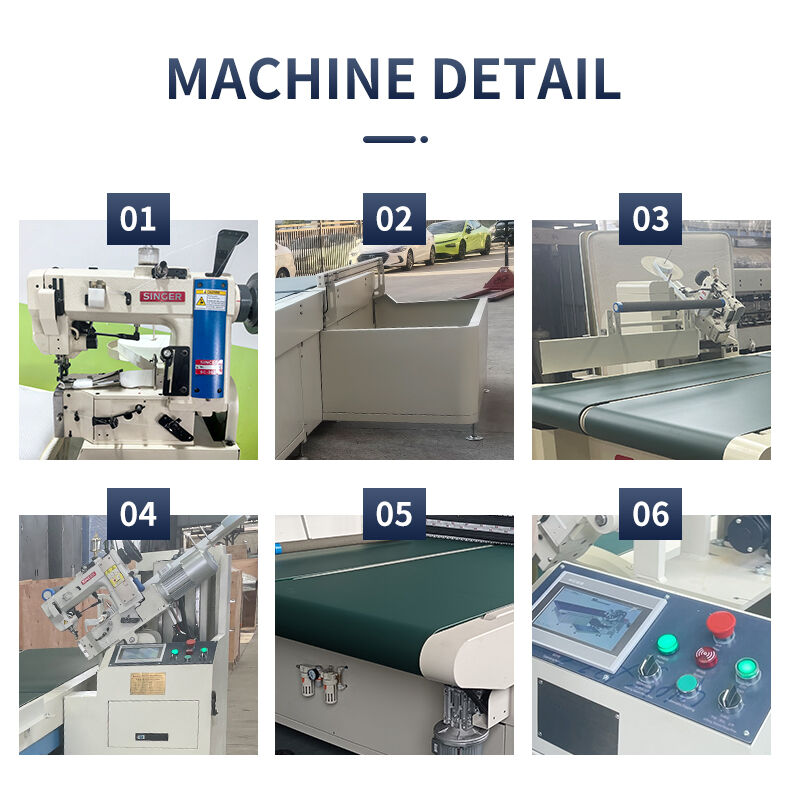

5.Adopt singer 300U chain stitch sewing head.
6.Sewing thickness 20-550MM.
7.Frequency speed control,auto-slow down at corners.
8.Sheet metal splicing process,Higher precision and more beautiful appearance.
Machine Specification
|
Model |
SN-WB4 |
SN-WB5 |
|
Machine Size |
4050* 2000* 900MM |
4050* 2600* 900MM |
|
Mattress Height |
20-550MM |
|
|
Table Size |
4*2M |
|
|
Table Lifting Angle |
0-280MM |
|
|
Head Tilt Angle |
30-55 Degree |
|
|
Head Lifting |
Automatic |
|
|
Head Model |
Singer 300U |
|
|
Output |
12-18PCS/H |
|
|
Voltage |
380V 50HZ 4KW |
|
|
Gross weight |
1300KG |
1350KG |
Warranty
1.We provide one year quality guarantee for our machine and electrical component from the date customer received the machine.
2.We provide installation video and user manual for all of our machine.
3.We can take video to help you completely solving any problems you encounter during installation and daily use,because we have all machine ready in our exhibition room.
4.Except one year warranty, we provide lifelong free guidance for our product.
