Automatic Horizontal Long Foam Continuous Foaming Production Line
Automatic Horizontal Long Foam Continuous Foaming Line boosts throughput by 40%, cuts labor costs 30%. Complies with ISO 9001 & CE.
Description
1.According to the purpose of the foam, different raw material configurations can be selected,generally ranging from 13-20 components.
2.This machine is capable of continuously producing high-density foam block,foam sheet and foam roll(soft polyurethane foam plastic).

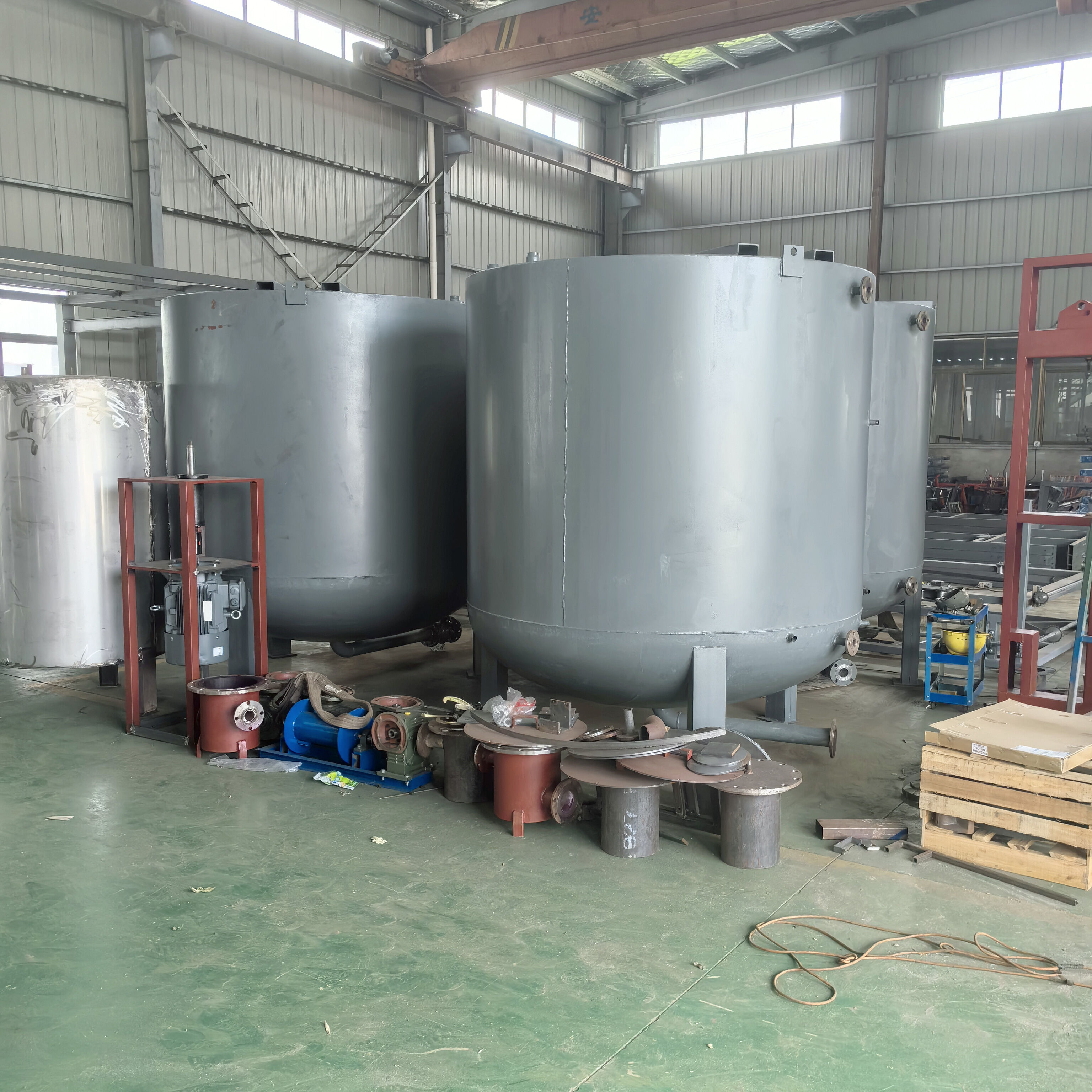

3.It stores multi components raw material in the material tank,All material are proportioned by a metering pump,then send to mixing head.
4.All components raw material mixing at a high speed and send to an overflow tank (or swing head).
5.The raw materials overflow and bubble on the bottom plate after heating and curing process.

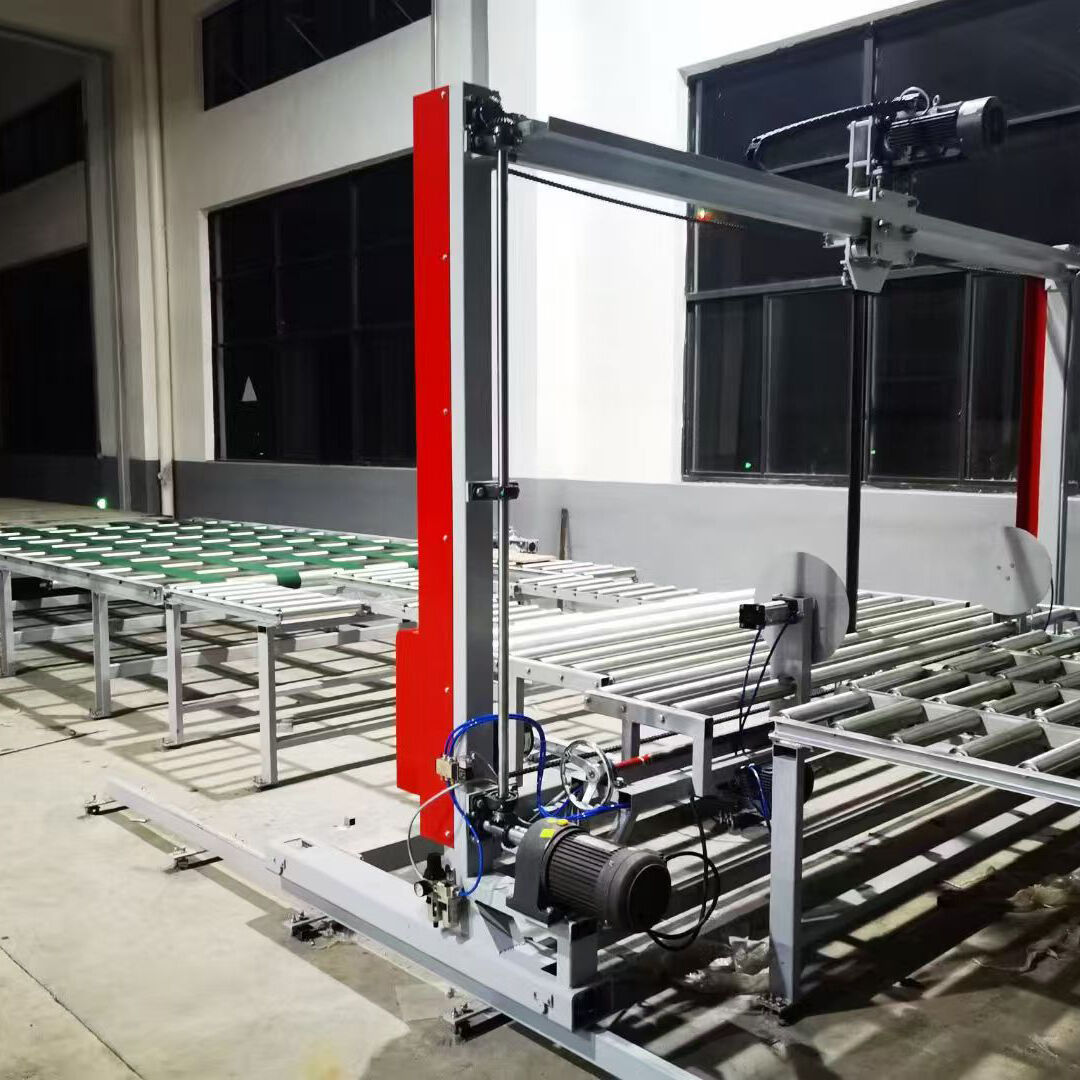

6.Foam will be cut into foam block based on the required length by the cutting machine which installed at the exit of the baking tunnel.Then delivery to the curing area via a conveyor belt.
7.It can also be paired with a long sheet cutting machine and a rolling machine to produce different thickness foam roll.
Machine Specification
|
Model |
SN-FP2400 |
|
Bubble Material Components |
13/20 |
|
Bubble Width |
1200-2400MM |
|
Foolish Height |
1250MM |
|
Flowering Density |
8-100KG/M³ |
|
Foolish Speed |
2000-7000RPM |
|
Maximum Foaming Volume |
300KG/MIN |
Warranty
1.We provide one year quality guarantee for our machine and electrical component from the date customer received the machine.
2.We provide installation video and user manual for all of our machine.
3.We can take video to help you completely solving any problems you encounter during installation and daily use,because we have all machine ready in our exhibition room.
4.Except one year warranty, we provide lifelong free guidance for our product.
FAQ
Q1: We are manufacturer or trade company?
A:Our factory build on 2003 year, We are a home textile equipment source manufacturer. We helped many client build their factory and serviced more than 100+ Countries & Regions.
Q2: Service?
A:Our engineer are online 10 hours every day to provide you with the highest quality service,completely solving any problems you encounter during installation and daily use.
Q3: Why choose us?
A:We are a home textile equipment source manufacturer,covering almost all pillow, quilt,mattress,polyester wadding and foam related machinery,You can get the most suitable suggestion about the machine configuration according to your raw material and final products.Then make a one-stop procurement and service here.
Q4:What is Seanoel?
A:Seanoel is a our brand name,noel is the pronunciation of promise in Chinese.
Our promise is vast and profound like the sea,choose Seanoel means you will get promise and guarantee from it.
