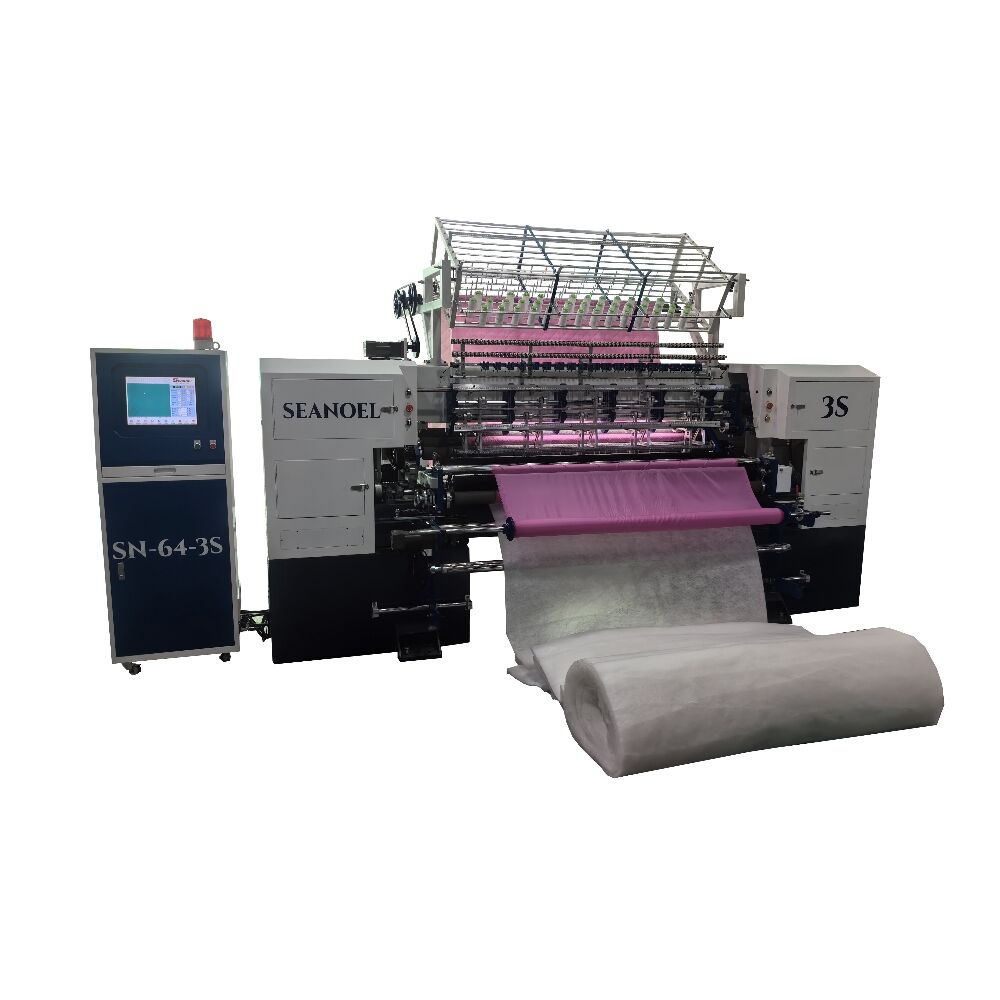

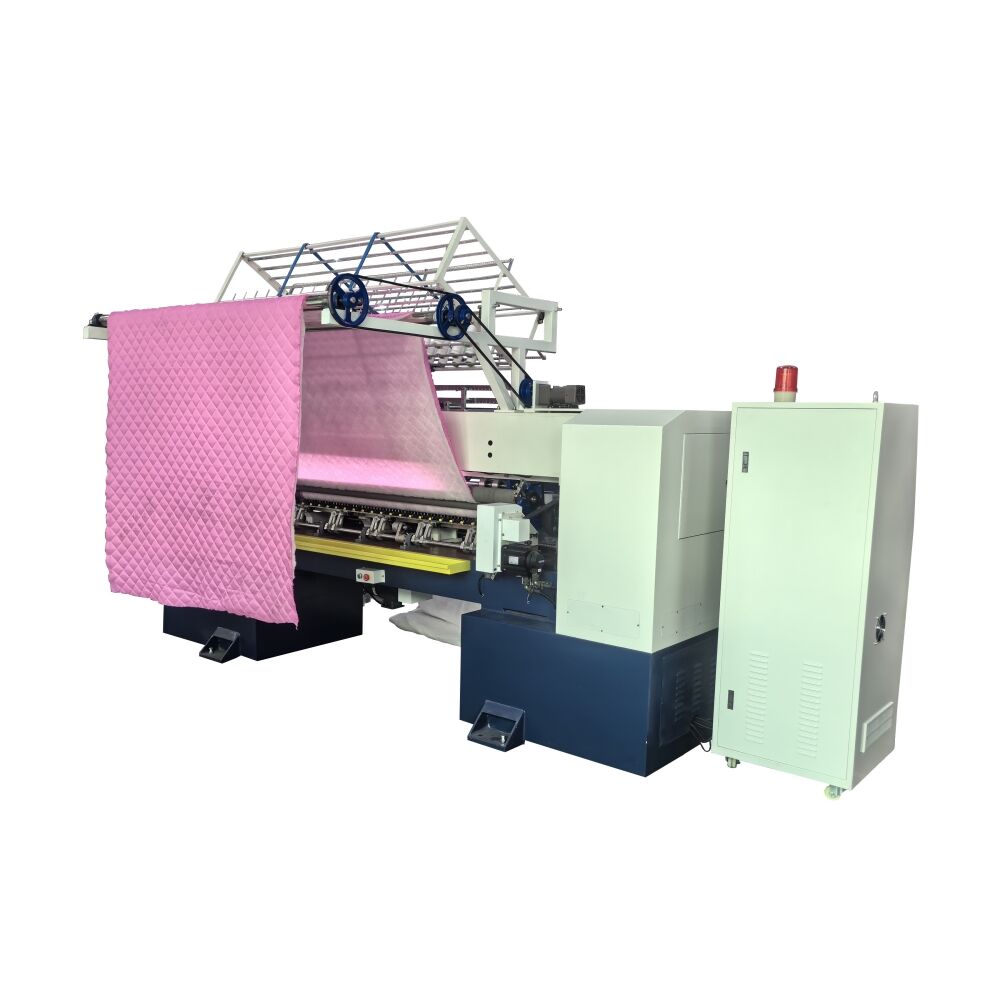

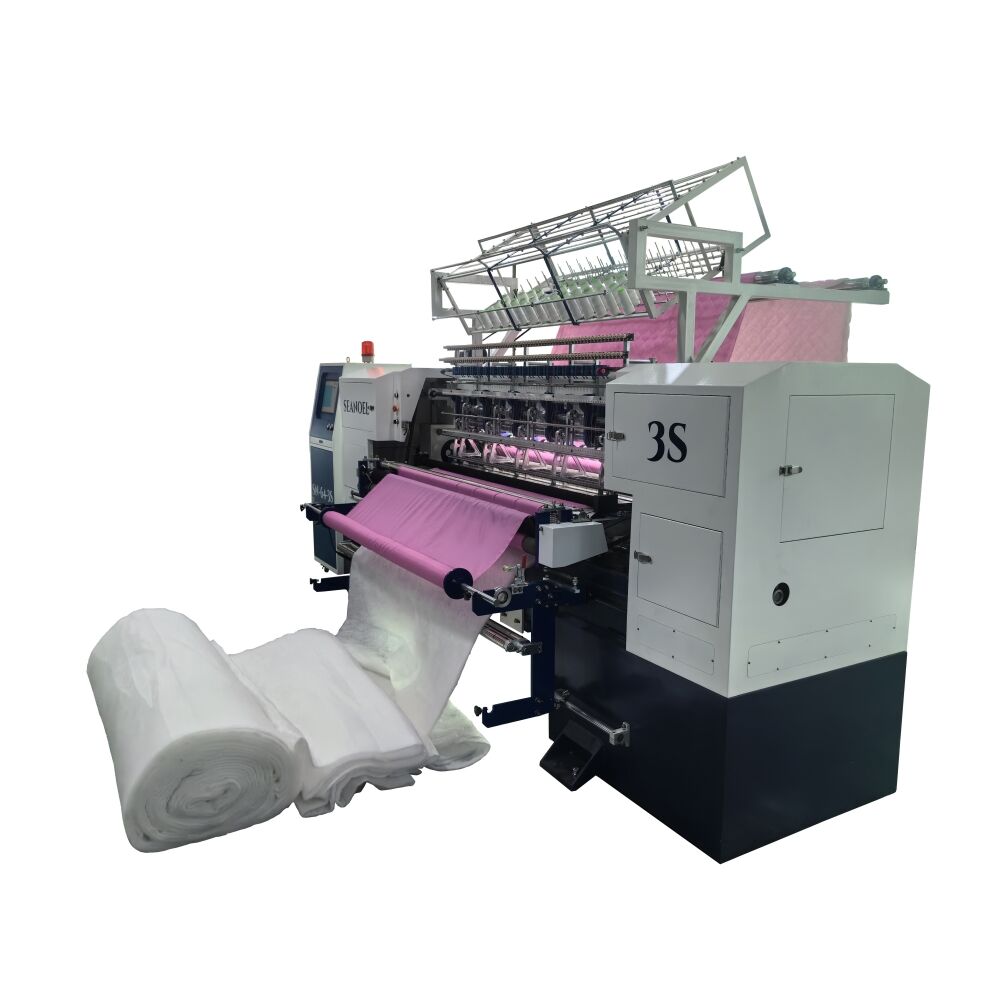

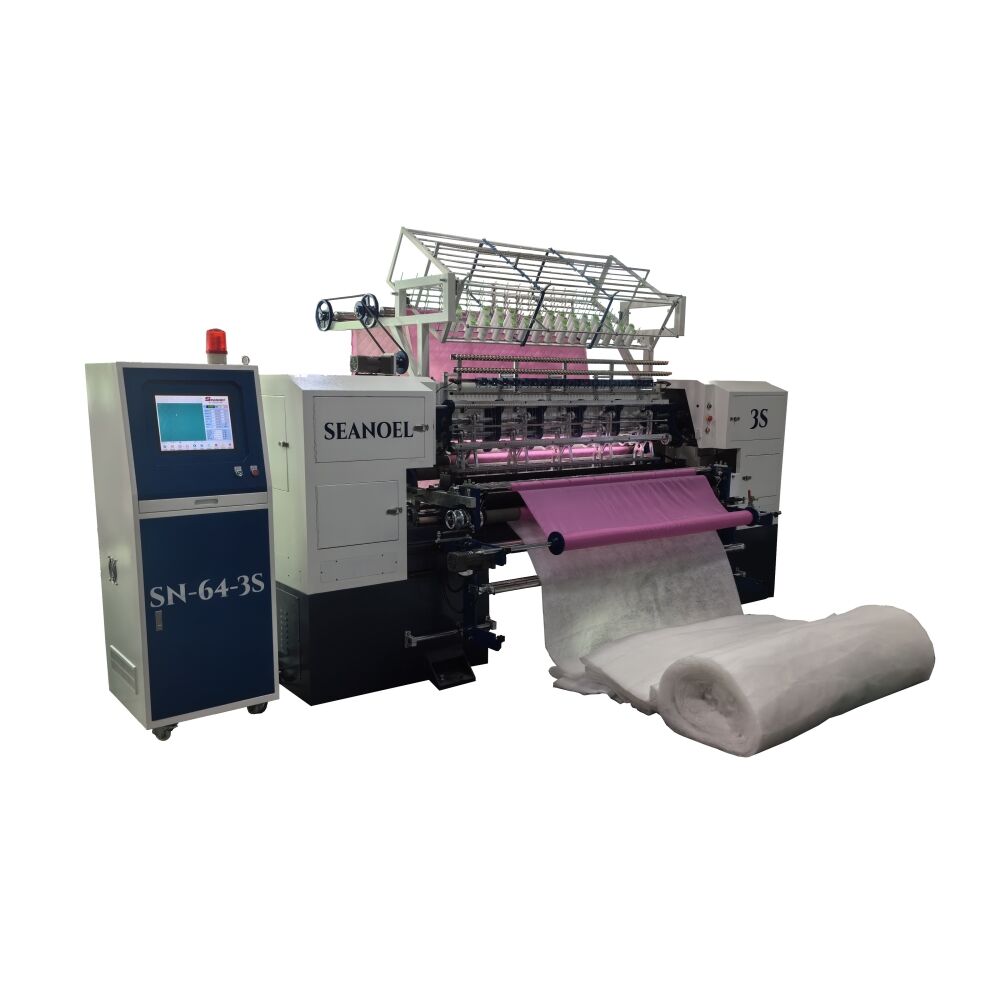

64” Computer Multi Needle Lock Stitch Home Textile Shuttle Quilting Machine
64” Computer Multi Needle Lock Stitch Quilting Machine boosts throughput by 35%, cuts thread waste by 22%, and ensures ISO 9001-compliant precision.
Description
1. It is widely used for quilting high-quality garments, quilt covers,hand bags,gloves, sleeping bags,pajamas,bedspreads,seat covers,Car Cushion,plus material and household ornaments.

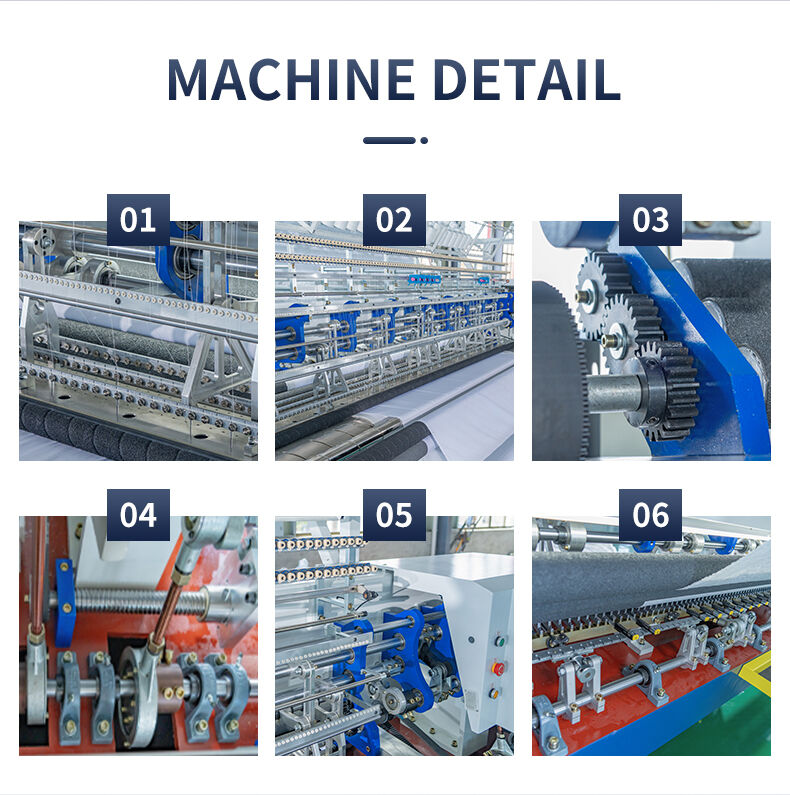

2. Needle bar and press plate are connected by cam-free double-swinging device, which is with high precision and durable. This structure can avoid lubrication and dirty material effectively.
3. High rigidity machine body and structure can make the machine running faster and more stable.
4. Adopting the new structure of press plate's adjusting makes the machine much simple.
5. Advanced and practical up thread-break detection unit.
6. Computerized automatic needle-lifting speed adjustment.

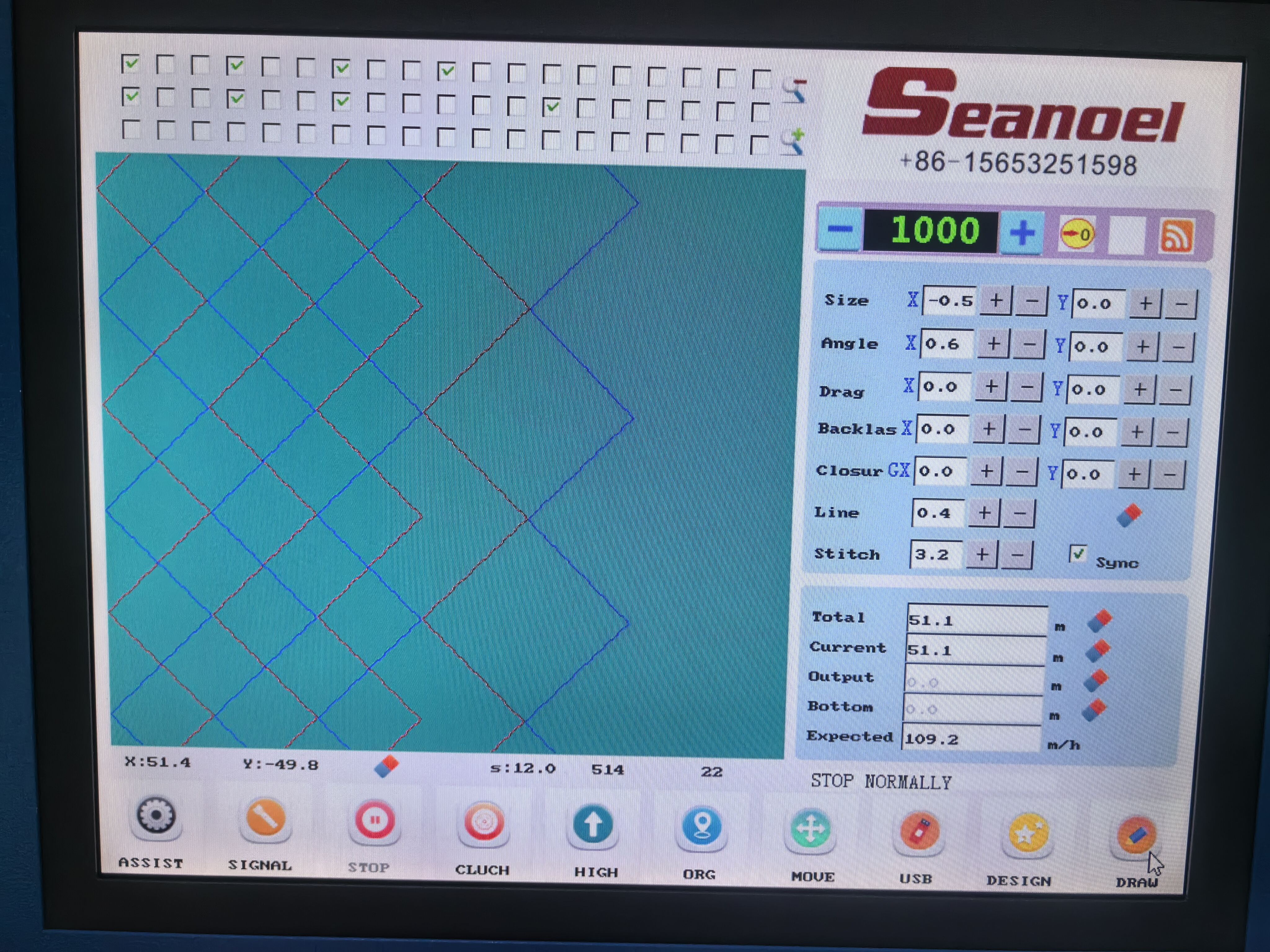

7. New generation of CNC system, advanced machine structure, high precision quilting, dispense with too much parameter adjustment or pattern modification during quilting.
8. Easy preparation of CAD drawing extremely precise.
9. Fault detection and indication enabling fast fault correction and return operation.
Machine Specification
|
Model |
SN-64-S3 |
SN-64-B3 |
|
Weight |
3500KG |
|
|
Power |
4KW |
|
|
Working Width |
1600MM |
|
|
Max Quilting Thickness |
30MM |
|
|
Max Quilting Speed |
1100RPM |
|
|
X-axis Movement Stroke |
203.2MM |
|
|
Stitch Length |
2-7MM |
|
|
Needle Distance |
25.4MM |
|
|
Output |
60-180M/H |
|
|
Shuttle Number |
#7 |
#10 |
Warranty
1.We provide one year quality guarantee for our machine and electrical component from the date customer received the machine.
2.We provide installation video and user manual for all of our machine.
3.We can take video to help you completely solving any problems you encounter during installation and daily use,because we have all machine ready in our exhibition room.
4.Except one year warranty, we provide lifelong free guidance for our product.
